Ruijie RG-AP710 Review

Ruijie RG-AP710

The need for internet is currently increasing, therefore Ruijie as a well-known network equipment brand creates various network devices such as switches, routers, hubs, access points and one of them is the wifi ruijie RG-AP710.

This time we will discuss further about one of the Ruijie access point products, namely the Ruijie RG-AP710.

Ruijie RG-AP710 is an 802.11ac access point with 2×2 MIMO designed for Dual-band concurrent, data rates up to 1.167Gbps.

The Ruijie RG-AP710 takes advantage of the management flexibility of Ruijie’s hybrid technology. In addition, Ruijie RG-AP710 also offers free Ruijie cloud management forever which you can use as a hardware controller for various business needs.

You don’t have to worry about cloud-based controllers or hardware issues. With integrated technology with advanced radio optimization, wireless roaming, and has a secure authentication technology.

The Ruijie RG-AP710 has performance performance suitable for small to mid-sized offices, retail chains and hotels.

Check Router Products from NetData here:

Product brief description Ruijie RG-AP710

In today’s SME environment there are many challenges faced by businesses to provide wi-fi networks that perform well but are very suitable to meet internal business needs and offer services wifi to visitors.

As for some of the challenges of business people to implement wifi:

  • Insufficient budget for Wi-FiWi-Fi
  • Requires simpleimplementation
  • Lack of IT staff to manage Wi-Fi
  • Customers complaining about Wi-Fi Ruijie really understands the challenges of having the best WiFi class – Fi in the SME environment.

With a dual-band access point, the Ruijie SME AP Series is the most economical solution for companies who want to improve the operational efficiency of the best wifi network.

Where the wifi ruijie RG-AP710 AP offers secure wifi access and also has an important infrastructure to improve business.

The Ruijie RG-AP710 features a unique Tri-band wave 2 design optimized for high-density users in SMB environments serving up to 768 users without any issues.

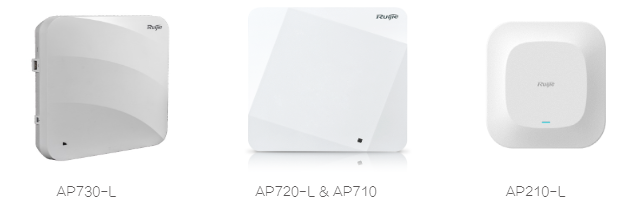

Ruijie AP720-L (11ac Wave 2) and AP710 are indoor wifi access points designed specifically for small and medium businesses (SMEs).

Deskripsi singkat Produk Ruijie AP710

Highlights

  • Maximize ROI (Lifetime Free Cloud Management & WIS Optimization Services).
  • Hybrid Management (Cloud / Controller / Standalone).
  • Fast Provision by Ruijie Cloud Mobile APP.
  • Automatic Radio Optimization with Big Data Technology.
  • Attractive design (Integrated Antenna).
  • 3 Years hardware warranty.

Product Features Ruijie RG-AP710

Perfect for High Density Wi-Fi The

Ruijie RG-AP710 is specially designed for tight Wi-Fi usage environments such as Restaurants, Hotel Reception and Conference Rooms, Student Lecture Rooms, and so on.

The Ruijie RG-AP710 can accommodate up to 768 clients, wifi throughput of up to 2130 Mbps, with the IEEE 802.11ac Wave 2 (WiFi 5) standard and a unique Tri-band radio design.

Ruijie RG-AP710 is equipped with single 2.4G radio and dual 5G radio for simultaneous client access, each radio can effectively load the balance of traffic without bringing additional interference to the environment.

Fitur Produk Ruijie AP710

Flexible Hybrid Management

Ruijie SME AP offers flexibility for SME entrepreneurs to choose a management mode. There are 3 different management modes for selection.

Especially for the Ruijie cloud option you don’t need to add additional costs or firmware upgrades which make you more cost-effective and time-saving.

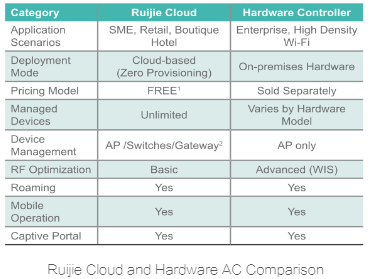

Flexible Hybrid Management

Choice between Ruijie Cloud and Controller Hardware

In some cases local wireless controller hardware is required for some business requirements.

Ruijie SME AP offers flexibility according to user needs, the AP can be managed by the Ruijie cloud or wireless controller on site.

Pilihan antara Ruijie Cloud dan Hardware Controller

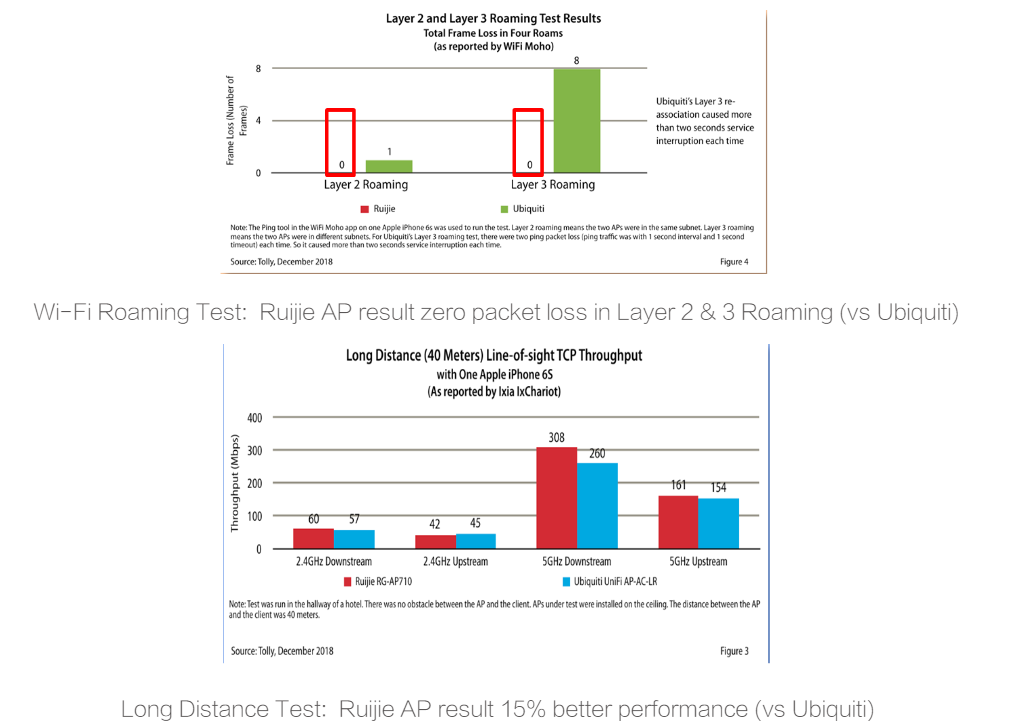

Performance Guarantee (Tolly © Certified)

Tolly group is a reputable third-party independent performance testing company.

Where more than 65% of Fortune 100 companies turned to Tolly to assist companies in making strategic technology decisions.

The performance of Ruijie’s SME wireless AP is further validated in the Tolly certified report. Ruijie is ready to compete with other brands in real-world performance levels.

Jaminan Performa

Jaminan Performa Ruijie AP710

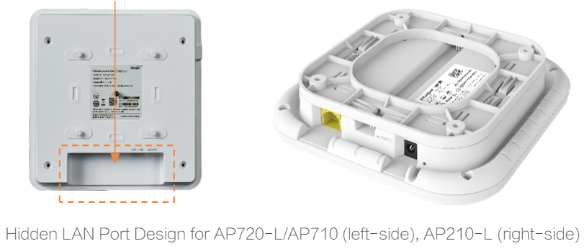

Stylish Design From Ruijie RG-AP710

The Ruijie RG-AP710 design uses a simple and cool design to suit different scenarios.

The AP features an integrated antenna design and a hidden LAN port along with hidden cables to hide cluttered cables.

Desain Stylish Ruijie AP710

Warranty Information

All Ruijie access point products come with a minimum 3 year warranty. There are several AP models such as the Ruijie RG-AP710, Ruijie RG-AP720-L, and Ruijie RG-AP730-L providing a limited lifetime warranty extension. For more details, you can visit the website https://www.ruijienetworks.com/support/servicepolicy

Specifications

Model Ruijie AP730-L Ruijie AP720-L Ruijie AP710 Ruijie AP210-L
Model Ruijie AP730-L Ruijie AP720-L Ruijie AP710 Ruijie AP210-L
Target Deployment SME High Density Wi-Fi Retail Chain Store, Small & Medium-sized Business Office, Boutique Hotel
Type Indoor Ceiling/Wall-mounting
Basic Spec Radio Tri-band (2.4G+5G+5G) Concurrent Dual-band Single-band
Protocol 802.11a/b/g/n/ac

Wave2

802.11a/b/g/n/ac 802.11b/g/n
Operating Bands 802.11b/g/n: 2.4GHz to 2.483GHz

802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries)

802.11b/g/n: 2.4GHz to 2.483GHz
Antenna Built-in Omni-directional Antenna
Antenna Gain 2.4G: 3dBi

5G: 3dBi

2.4G: 3dBi
Max Throughput Maximum throughput of 2.4G: 400Mbps

Maximum throughput of 5G: 1.73Gbps

Maximum throughput per AP: 2.13Gbps

Maximum throughput of 2.4G: 300Mbps

Maximum throughput of 5G: 867Mbps

Maximum throughput per AP: 1167Mbps

Maximum throughput of 2.4G: 300Mbps

Maximum throughput of 5G: 867Mbps

Maximum throughput per AP: 1167Mbps

Maximum throughput of 2.4G: 300Mbps

Maximum throughput per AP: 300Mbps

Modulation OFDM:BPSK@6/9Mbps,QPSK@12/18Mbps,16-QAM@24Mbps,64-QAM@48/54Mbps

DSSS:DBPSK@1Mbps,DQPSK@2Mbps,and CCK@5.5/11Mbps

MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM, 256QAM

OFDM:BPSK@6/9Mbps,QPSK@12/18Mbps,16-QAM@24Mbps,64-QAM@48/54Mbps

DSSS:DBPSK@1Mbps,DQPSK@2Mbps,and CCK@5.5/11Mbps

MIMO-OFDM:BPSK, QPSK, 16QAM, 64QAM

Receiver Sensitivity 11b:-96dBm(1Mbps),-93dBm(5Mbps),-89dBm(11Mbps)

11a/g:-91dBm(6Mbps),-85dBm(24Mbps),-80dBm(36Mbps),-74dBm(54Mbps)

11n:-90dBm(MCS0),-70dBm(MCS7),-89dBm(MCS8),-68dBm(MCS15)

11ac HT20:-88dBm(MCS0), -63dBm(MCS9)

11ac HT40:-85dBm(MCS0), -60dBm(MCS9)

11ac HT80:-82dBm(MCS0), -57dBm(MCS9)

11b:-96dBm(1Mbps),-93dBm(5Mbps),-89dBm(11Mbps)

11g:-91dBm(6Mbps),-85dBm(24Mbps),-80dBm(36Mbps),-74dBm(54Mbps)

11n:-90dBm(MCS0),-70dBm(MCS7),-89dBm(MCS8),-68dBm(MCS15

Spatial Streams 2×2 2×2 2×2 2×2
Maximum Transmit Power 100mW
IP Rating IP41
Ports 1 10/100/1000BASE-T Ethernet uplink

Port LAN1 supports PoE+

1 Console Port

1 10/100/1000BASE-T Ethernet uplink

Port LAN1 supports PoE

1 Console Port

1 10/100BASE-T Ethernet uplink

Port LAN1 supports PoE

Power Power Supply local power supply (DC 48V/0.6A)

PoE (802.3at)

local power supply (DC 5V/3A)

PoE (802.3af)

local power supply (DC 12V/1A)

PoE (802.3af)

Power Consumption <25.5W <12.95W <7.5W
WLAN Maximum clients per AP 768 256 128
BSSID capacity 48 32 16
Remote Intelligent Perception Technology (RIPT) Support
Intelligent load balancing based on the number of users or traffic Support
STA control Support
Bandwidth control Support
Preference for 5GHz (band select) Support
Band Steering (5G Priority) Support N/A
Security PSK, Web, 802.1x authentication Support
PPSK authentication Support N/A
Data encryption WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
PEAP authentication Support
User isolation Support
Rogue AP detection and countermeasure Support
RADIUS Support
Wireless Intrusion Detection System(WIDS) Support
Wireless Intrusion Prevention System (WIPS) Support
Routing IPv4 address Static IP address or DHCP reservation
IPv6 address Manual or automatic configuration
Multicast Multicast to unicast conversion
Management and Maintenance Network management SNMP v1/v2C/v3, Telnet, TFTP, Web management
Cloud AC management Support
FAT/FIT switching Support
External Characteristics Lock Support
LED Indicators 1 LED indicator (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to enable silence mode)
Relevant Standard Wi-Fi Alliance Certification Support
Radio Standard EN300 328

EN301 893

EMC Standard GB9254

EN301 489-1

EN301 489-17

EN 55032

EN 61000

EN 55035

Safety Standard GB4943

EN/IEC 60950-1

Specifications Dimensions (W x D x H) (mm) 230x230x42 194 × 194 × 37 175*175*25.8
Weight 1.3kg 0.42kg 0.35kg
Work Environment Temperature Operating Temperature:

-10°C to 50°C

Storage Temperature:

-40°C to 70°C

Operating Temperature:
-10°C to 45°CStorage Temperature:
-40°C to 70°C
Humidity Operating Humidity:

5% to 95% (non-condensing)

Storage Temperature:

5% to 95% (non-condensing)

Why Should Choose This Product?

Ruijie products are products that are designed to make it easier for users while providing advanced configuration with complete features to meet the needs of SME businesses.

Every Ruijie AP product including the Ruijie RG-AP710 provides the Ruijie cloud Ruijie SME AP series features that are designed for ease and simplicity of application use in many SME scenarios including small offices, hotels, shops, and so on.

Ruijie RG-AP710 helps you to grow your SME business to be more efficient in terms of IT operations, reducing the complexity of wifi at a low cost.

Ruijie RG-AP710 hardware controller is a feature that is embedded to increase better performance while providing tight security, Ruijie offers on-site hardware options for more flexible management.

Ruijie provides affordable and comprehensive enterprise-class networking solutions for the SME market, consisting of wireless, switches, gateways, security and so on.

This solution gives users the choice of scenario based access points, flexible WLAN management, reliable switch design with appropriate layer protection, layer 7 application protection, as well as web filtering.

Thus our discussion this time about the wifi ruijie RG-AP710, which you can make a solution to meet the needs of wireless broadcasting at a low cost for the SME level.
