Ruijie RG-AP720 Review

For those of you who work in the world of technology and information, it is certain that you understand what the Ruijie RG-AP720-I access point is, especially those of you who understand networks. What is an access point? An access point is a device that creates a wireless local area network, or WLAN, usually in an office or large building. The access point connects to a wired router, switch, or hub via Ethernet cable, and projects a Wifi signal over a designated area.

Are you looking for an access point that is very reliable with various advantages and of course at a very affordable price even though it is the cheapest price in its class?

The answer is the access point from ruijie RG-AP720. For those of you who still don’t understand Ruijie, Since its founding in 2000, Ruijie has built deep scenario-oriented application experiences through solution design and industry innovation, helping to scale-up to digitization of all industries.

Ruijie has researched and developed its own 8 product lines, including switch, router, wireless, cloud-class, security, gateway, IT management, and authentication & accounting.

One of the most reliable access point products from Ruijie is the Ruijie RG-AP720. There are 2 types for this Ruijie serial access point that you can choose according to your needs and desires.

Check out NetData Router Products here:

Ruijie RG-AP720-I

Ruijie RG-AP720-I is one of the highest quality access points with many benefits you can get. Ruijie never disappoints for those of you who are looking for an access point at an affordable price for the needs of your company which makes your internet access faster with a wider coverage.

Product Description Ruijie RG-AP720

Ruijie AP720-I delivers the fastest 802.11ac gigabit wireless performance and unbeatable user experience for any organization.

With a maximum wireless performance of 1.267Gbps, the Ruijie AP720-I is the perfect solution for any WiFi deployment from various clients with varying needs.

The innovative market leading features, Pre-AX, Correcting & Air Reorder drastically increase RF efficiency in high density WiFi deployments.

Specifications Ruijie RG-AP720

For the specifications of the Ruijie RG-AP720-I are as follows:

Model RG-AP740-I RG-AP740-I(C) RG-AP720-I
Model RG-AP740-I RG-AP740-I(C) RG-AP720-I
Target Deployments For campuses, offices, hospitals, and hotspots of service providers
Basic Specifications Radio Concurrent tri-radio dual-band Concurrent dual-radio dual-band Concurrent dual-radio dual-band
Protocol 802.11a/b/g/n/ac

Wave 2

Operating Bands 802.11b/g/n: 2.4GHz to 2.483GHz
802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries)
Antenna Built-in “X-Sense 4” Smart Antenna

4×4 MU-MIMO

Built-in Smart Antenna

4×4 MU-MIMO

Built-in Smart Antenna

2×2 MU-MIMO

Max Throughput 1733Mbps/800Mbps/433Mbps per radio

2966Mbps per AP

1733Mbps/800Mbps per radio

2533Mbps per AP

400Mbps@2.4GHz

867Mbps@5GHz

1267Mbps per AP

 Spatial Streams 4 4 2
Modulation OFDM: BPSK@6/9Mbps

QPSK@12/18Mbps

16-QAM@24Mbps

64-QAM@48/54Mbps

DSSS:

DBPSK@1Mbps

DQPSK@2Mbps

CCK@5.5/11Mbps

MIMO-OFDM:

PSK, QPSK, 16QAM, 64QAM and 256QAM

OFDM: BPSK@6/9Mbps

QPSK@12/18Mbps

16-QAM@24Mbps

64-QAM@48/54Mbps

DSSS:

DBPSK@1Mbps

DQPSK@2Mbps

CCK@5.5/11Mbps

MIMO-OFDM:

BPSK, QPSK, 16QAM, 64QAM and 256QAM

OFDM: BPSK@6/9Mbps

QPSK@12/18Mbps

16-QAM@24Mbps

64-QAM@48/54Mbps

DSSS:

DBPSK@1Mbps

DQPSK@2Mbps

CCK@5.5/11Mbps

MIMO-OFDM:

BPSK, QPSK, 16QAM, 64QAM and 256QAM

Receiver Sensitivity 11b:-91dBm(1Mbps),-88dBm(5Mbps),-85dBm(11Mbps)
11a/g:-89dBm(6Mbps),-80dBm(24Mbps),-76dBm(36Mbps),-71dBm(54Mbps)
11n:-83dBm@MCS0,-65dBm@MCS7,-83dBm@MCS8,-65dBm@MCS15
11ac HT20:-83dBm(MCS0), -57dBm(MCS9)
11ac HT40:-79dBm(MCS0), -57dBm(MCS9)
11ac HT80:-76dBm(MCS0), -51dBm(MCS9)
Maximum Transmit Power 100mw
Adjustable Power 1dBm
IP Rating IP41
Ports Service Port 2 10/100/1000BASE-T Ethernet uplink ports (Both ports support PoE) 1 USB port 2 10/100/1000BASE-T Ethernet uplink ports (Both ports support PoE) 1 USB port 2 10/100/1000BASE-T Ethernet ports (LAN1 port supports PoE & Uplink) 1 USB port
Management Port 1 console port
Power Power Supply Local power supply (DC 48V) and PoE+ (802.3af/802.3at)

Support dual PoE for power backup

(Power adapters sold separately)

Local power supply (DC 48V) and

PoE+ (802.3af/802.3at)

Support dual 802.3at power supply, or dual 802.3af power supply

Local power supply (DC 48V) and PoE+ (802.3af/at)

(Power adapters sold separately)

Power Consumption <25.4W <25.4W <12.95W
WLAN Maximum clients per AP Up to 612 Up to 512 Up to 256
BSSID capacity Up to 16 per radio                                                          Up to 48 per AP Up to 16 per radio                                                          Up to 32 per AP Up to 16 per radio                                                          Up to 32 per AP
SSID hiding Support
Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID Support
Remote Intelligent Perception Technology (RIPT) Support
X-speed Support
Intelligent load balancing based on the number of users or traffic Support
STA control SSID/radio-based
Bandwidth control STA/SSID/AP-based speed control
Preference for 5GHz (band select) Support
Wireless position tracking Support
Dynamic Frequency Selection(DFS) Future Release Support
Security PSK, Web, and 802.1x authentication Support
Data encryption WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
SMS authentication Support
PEAP authentication Support
Data frame filtering Whitelist, static/dynamic blacklist
User isolation Support
Rogue AP detection and countermeasure Support
Dynamic ACL assignment Support
RADIUS Support
Wireless Intrusion Detection System(WIDS) Support
Wireless Intrusion Prevention System (WIPS) Support
Bluetooth iBeacon Support
Routing IPv4 address Static IP address or DHCP reservation
IPv6 CAPWAP tunnel Support
ICMPv6 Support
IPv6 address Manual or automatic configuration
Multicast Multicast to unicast conversion
Management and Maintenance Network management SNMP v1/v2C/v3, Telnet, TFTP, Web management
One-click Optimization Support

(need to integrate with WIS)

Fault detection and alarm Support
Cloud AC management Support
Statistics and logs Support
FAT/FIT switching The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC.
The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet.
External Characteristics Lock Support
LED Indicators 1 LED (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to silent mode)
Relevant Standard Wi-Fi Alliance Certification Support
Safety Standard GB4943, EN/IEC 60950-1
EMC Standard GB9254, EN301 489

EN 55032 , EN 61000, EN 55035

Health Standard EN 62311
Radio Standard EN300 328, EN301 893
Vibration Standard IEC60068 2-31, ETSI EN300 019,

NEBS GR-63-CORE

Specifications Dimensions (W x D x H) (mm) 230 × 230 × 42
(Height of AP only, excluding case and mount kit)
230 × 230 × 42
(Height of AP only, excluding case and mount kit)
180 × 180 × 20

(Height of AP only, excluding case and mount kit)

Weight 1.3kg 1.0kg 0.37kg
Work Environment Temperature Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity Operating Humidity: 5% to 95% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)
Installation Mode Ceiling/wall-mountable

To Why should you choose the Ruijie RG-AP720-I product?

Following are the reasons why you should choose Ruijie RG-AP720-I:

High Density WiFi Experience

  • Pre-AX, Minimize Co-channel & Other Interference

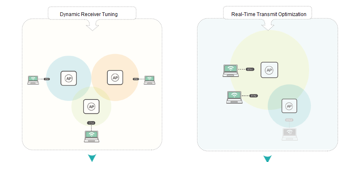

Pengalaman WiFi Densitas Tinggi

Pre-AX Technology Optimize WiFi Experience

DCCA / DTPC is adopted from 802.11ax technology to adjust RSSI threshold automatically dynamic to maximize the usable spectrum and allow more data to be transmitted. Each AP optimizes the RF and power channels according to their respective clients.

  • Correct Link, Increase Traffic Load Balancing & Roaming Clients

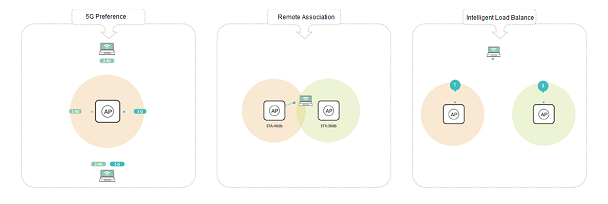

Teknologi Pre-AX Mengoptimalkan Pengalaman WiFi

Correct Link Technology Optimizes the WiFi Experience

Correct Link technology is designed to analyze the latency, jitter and signal strength of each client. It also correlates with additional information such as wireless channel utilization and throughput to optimize the best user experience for wireless clients.

  • AirReorder, Smart Airtime Scheduling Technology

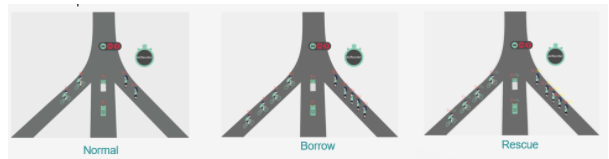

Air Reorder Mengalokasikan Slot Waktu ke Terminal

Air Reorder Allocates Time Slots to Terminals

The fundamental thing about Air Reorder is to allocate the same time slots to ensure that each terminal can get the best possible RF resource justice. This can prevent clients with slower data rates from degrading the performance of the entire network by occupying the limited shared media.

Seamless Integration with WIS Cloud

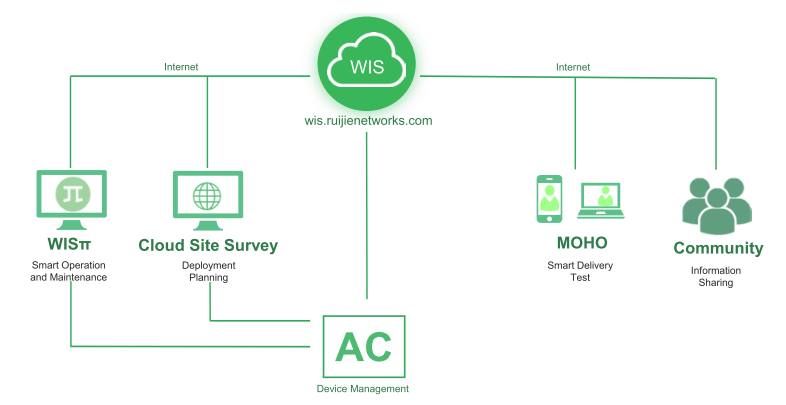

Platform Layanan Cerdas Cloud WIS

Platform Smart Cloud Services WIS

Ruijie WIS is an AI-based smart service designed for optimization of WiFi in the cloud. Perfectly integrated with the Ruijie RG-AP720 hardware AC on premise helps simplify WiFi deployment planning, delivery testing, and operation diagnosis. With WIS you can:

  • Survey cloud sites for planning implementation of
  • smart mobile APP for provisioning
  • Visualize user experience
  • One-click WiFi optimization
  • And for FREE!

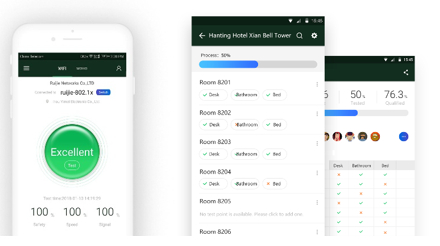

Aplikasi Ruijie MOHO untuk Pengujian WiFi

Ruijie MOHO App for WiFi Testing

As part of the Ruijie RG-AP720-L WIS solution, the ruijie RG-AP720-I MOHO is a mobile application designed to perform WiFi testing from your fingertips. Comprehensive testing tools such as collaborative test, speed test, multi-point test, etc. are available on the Ruijie MOHO app which can be downloaded for free from the IOS APP Store & Google Play.

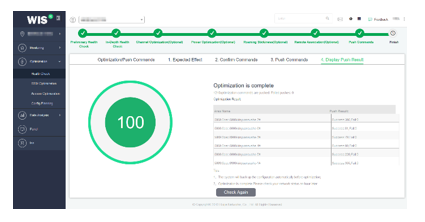

WISπ One-click Optimization

WISπ One-click Optimization

Another key feature of Ruijie RG-AP720-I WIS, WISπ provides one-click optimization using AI-based automatic machine learning correlation based on real-time information collected from your Wifi network. It totally optimizes the entire Wifi network performance by providing the most suitable configuration with fine-tuning with just one click.

Virtual AP Technology

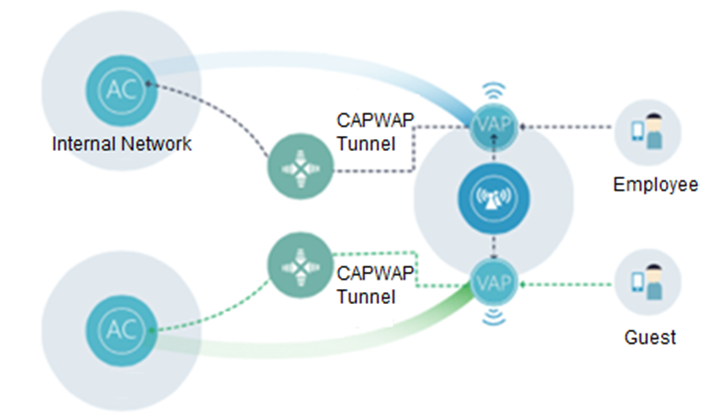

Virtual AP Meningkatkan Keamanan Jaringan

Virtual AP Enhances Network Security

In most companies today, providing Guest WiFi to visitors is important. However, Guest WiFi may be another entry point for network interference whether intentional or not.

Ruijie RG-AP720-I AP Virtualization technology makes it possible to virtualize a physical AP into multiple virtual APs to handle different services. Different VAPs can be connected to different ACs to ensure only authorized user access to the correct power source.

With VAP, you can now enjoy the benefits:

  • Resource isolation
  • Flexible authentication
  • Minimize RF interference
  • Cost-effective & secure

Take advantage of the AP740’s dual GE uplink design, two distinct CAPWAP tunnels that separate employee Wifi and guest Wifi traffic into two distinct physical uplinks, which further increases security.

Virtual AC Technology

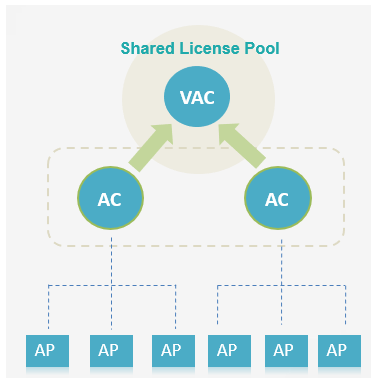

Virtual AC Mengaktifkan Manajemen Terpusat

Virtual AC Enables Centralized Management

Ruijie RG-AP720-I Network AC Virtualization Technology helps to virtualize multiple air conditioners into a single logical air conditioner regardless of module or appliance based air conditioner. It supports up to 8 hardware AC members in one high availability cluster. AP licenses are shared from the license pool regardless of the number of ACs in the cluster.

With centralized management and distributed processing capabilities, it increases the scalability and resilience of the entire wireless Network. Simplified management also streamlines IT operations.

PPSK Authentication

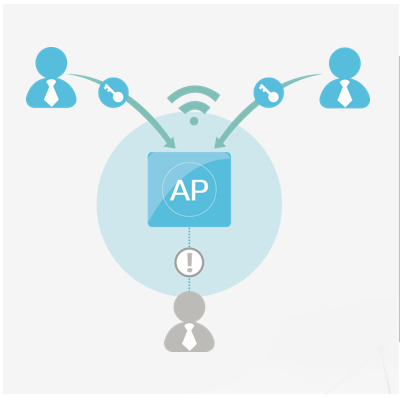

Praktik Keamanan Nirkabel yang Sederhana dan Efektif

Simple and Effectiveof Wireless Security Practices

Traditional pre-shared key (PSK) is shared by all users on the WLAN, potentially creating a risk of PSK leakage.

Ruijie Per-user PSK (PPSK) is an easy-to-setup wireless authentication method with enterprise-level security. Credentials can be created and revoked individually. Each PPSK can also be bound to a unique user / machine.

With PPSK, you can enjoy the advantages:

  • High security by using different passwords for each user and device in each SSID
  • Simple implementation, allows batch account creation
  • Ease of use and offers the same experience as WPA / WPA2-PSK
  • Out-of-box features in control of AC
  • No additional AAA required

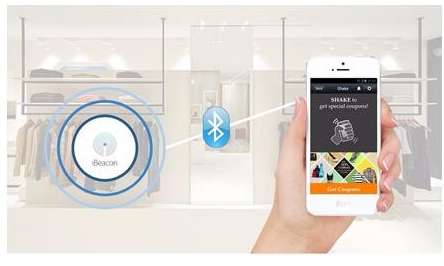

iBeacon Bluetooth application

iBeacon for O2O Marketing

iBeacon for O2O Marketing

The AP700 series comes with a built-in BT4.0 module, bringing revolutionary changes to LBS marketing through iBeacon. iBeacon, first developed by Apple and then widely supported by other mobile devices, is a protocol that leverages Bluetooth low energy (BLE) wireless technology to provide location-based information and services.

Geared up for BT 4.0 integration, the AP is becoming a powerful O2O marketing tool, enabling customers to get exclusive offers from nearby stores, see details on their mobile when they are close to a featured product, get alerts about what’s in store next and much more.

Ruijie RG-AP720-I

There is another access point in the AP700 series, which is the flagship of the ruijie RG-AP720-I. This series is indeed very reliable and of course at a price that is more affordable than you buy an access point from other brands, especially for those of you who need an access point for the needs of middle to lower business.

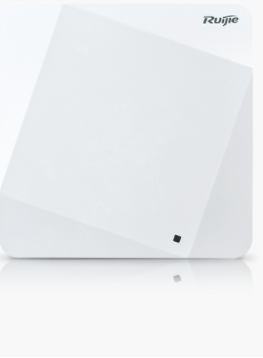

Brief Product Description Ruijie RG-AP720-I

Ruijie AP720-L is a high-performance Wave 2 802.11ac access point with 2×2 MU-MIMO and concurrent dual-band design, data rates of up to 1.167Gbps.

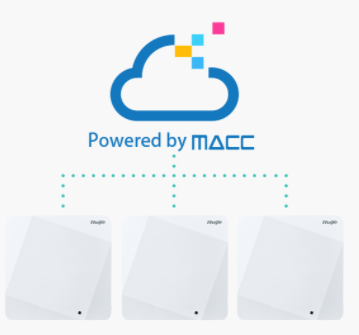

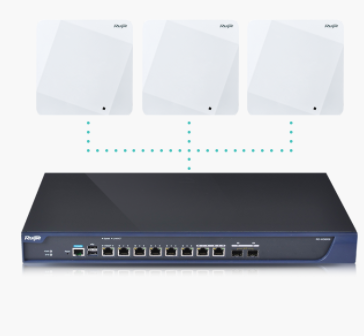

Taking advantage of the ruijie RG-AP720-I hybrid management flexibility, customers can choose the Ruijie Cloud Management and Hardware Controller for a variety of fast-changing business needs.

It doesn’t matter cloud-based controllers or hardware, everything integrates with advanced radio optimization, wireless roaming, and secure out of the box authentication. The high performance AP720-L is ideal for primary and secondary educational institutions, small to medium sized businesses, boutique hotels, retail chains and other industries for their indoor scenarios.

Specifications Ruijie RG-AP720-L

Following are the specifications of the Ruijie RG-AP720-L:

 RF Specifications
Radio – Concurrent Dual-band
Protocol – 802.11a/b/g/n/ac Wave2
Operating Bands – C5802.11b/g/n: 2.4GHz to 2.483GHz
– 802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to C55.850GHz (vary depending on countries)
Antenna Built-in Antenna
Max Throughput 1167Mbps
Spatial Streams 2
Maximum Transmit Power 100mW
IP Rating IP41
+ Interfaces
Service Ports 1x 10/100/1000BASE-T Ethernet uplink
Console Ports 1x Console Port (Micro USB)
+ Power
Power Supply -local power supply (DC 5V/3A)
-PoE (802.3af)
Power Consumption <12.95W
+ WLAN
Maximum clients per AP 256
BSSID capacity 32
Remote Intelligent Perception Technology (RIPT) Support
Intelligent load balancing based on the number of users or traffic Support
STA control Support
Bandwidth control Support
Preference for 5GHz (band select) Support
+ Security
PSK, Web, 802.1x authentication Support
PPSK authentication Support
Data encryption WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)
PEAP authentication Support
User isolation Support
Rogue AP detection and countermeasure Support
RADIUS Support
Wireless Intrusion Detection System(WIDS) Support
Wireless Intrusion Prevention System (WIPS) Support
+ Routing
IPv4 address Static IP address or DHCP reservation
IPv6 address Manual or automatic configuration
Multicast Multicast to unicast conversion
+ Management and Maintenance
Network management SNMP v1/v2C/v3, Telnet, TFTP, Web management
Cloud AC management Support
FAT/FIT switching Support
+ Physical Specification & Others
Lock Support
LED Indicators 1 LED indicator (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to enable silence mode)
Dimensions (W x D x H) (mm) 194 × 194 × 37
Weight 0.42kg
+ Environmental Specifications
Temperature Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 70°C
Humidity Operating Humidity: 5% to 95% (non-condensing)
Storage Humidity: 5% to 95% (non-condensing)
+ Certification
Wi-Fi Alliance Certification Support
Radio Standard EN300 328
EN301 893
EMC Standard GB9254
EN301 489-1
EN301 489-17
Safety Standard GB4943
EN/IEC 60950-1

Why Should Choose Product Ruijie RG-AP720-I?

Choosing the RG-AP720-L is certainly an advantage for you. Benefits include:

802.11ac Wave 2 MU-MIMO

technology 802.11ac Wave 2 MU technology – MIMO allows multiple clients to be processed at the same time – significantly increases multi-user throughput and is essential for high-density wireless applications.

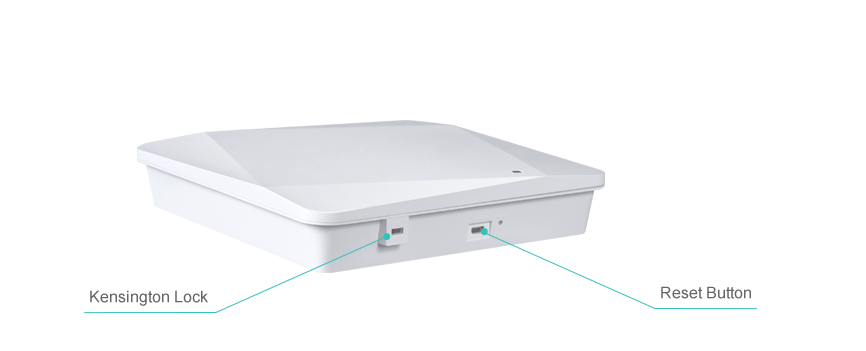

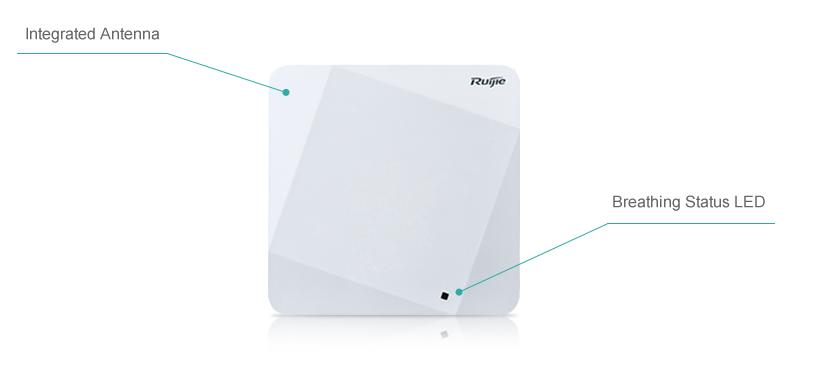

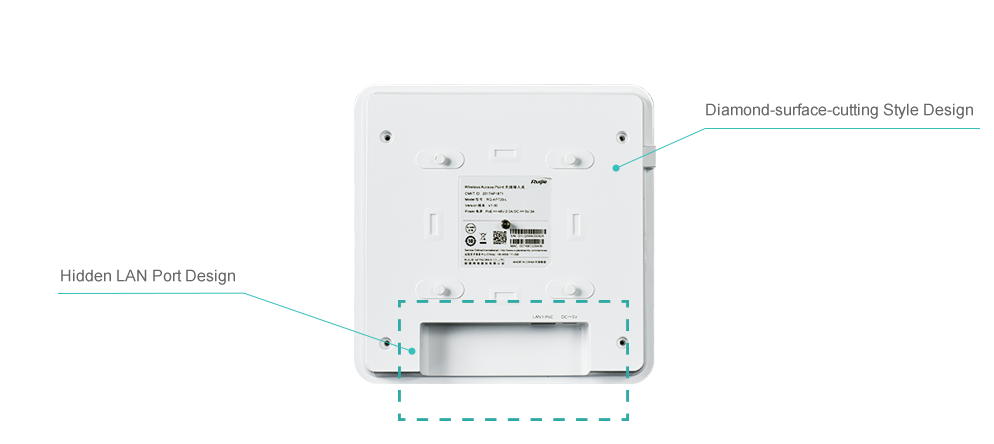

Stylish Design

AP720-L uses a simple and stylish design to suit different scenarios.

Desain Stylish

Desain Stylish Ruijie AP720.png

Review Desain Stylish Ruijie AP720.png

Flexible Hybrid Management

There are 3 different management modes to choose from, perfect for your constantly updating business needs. Of course, this will allow you to use this access point from Ruijie RG-AP720-L for a long time.

  • Standalone

Manajemen Hibrid Fleksibel

Simple & BasicConnectivity. You don’t need to be too complicated in using this Ruijie Ruijie RG-AP720 series, because with easy management, flexibility, and good connectivity, it will definitely be very suitable for your business.

  • Cloud Management

Manajemen Cloud

Easy & Effective Choicewithout Provision. Of course now you are familiar with the use of the cloud. Cloud itself will be very helpful for your business, because it is more efficient in all lines, including in terms of costs when using this Ruijie RG-AP720-L.

  • Controller Hardware

Hardware Controller

High Performancewith 3rd Party Integration. Even if you have more than one access point or various hardware connected to your network of different brands, this Ruijie RG-AP720 can be connected properly. Interested in the Ruijie RG-AP720? You can contact us. I hope this helps

Loading

Leave a Reply

Your email address will not be published. Required fields are marked *

Semua operasional PT. Network Data Sistem akan menggunakan domain nds.id per tanggal 8 Mei 2019. Semua informasi/promosi dalam bentuk apapun selain menggunakan domain nds.id bukan tanggung jawab PT. Network Data Sistem Dismiss
