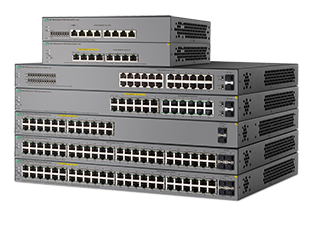

Aruba switch 1920s Series dirancang untuk bisnis kecil yang membutuhkan kinerja yang ditingkatkan untuk mendukung aplikasi yang membutuhkan bandwidth. Mereka ideal untuk lingkungan yang membutuhkan fitur-fitur canggih untuk kontrol granular dan di mana fleksibilitas yang dikelola cerdas adalah suatu keharusan untuk konfigurasi dan manajemen jaringan yang mudah. Sakelar-sakelar tersebut adalah sakelar Gigabit konfigurasi tetap terkelola cerdas tingkat lanjut yang dioptimalkan untuk harga / kinerja bisnis kecil. Mereka menawarkan konfigurasi 8-, 24- dan 48-port, pilihan model PoE + dan non-PoE +, beberapa termasuk slot SFP untuk konektivitas serat
Product Differentiator (long) The HPE OfficeConnect 1920S Switch Series is an advanced lite Layer 3 smart managed switch series specifically designed with emphasis on simplicity and ease of us to meet the needs of small businesses.
Power Consumption Description 435W (maximum), 34.2W (idle) Maximum, depending on model
Input Voltage 100 – 240 VAC
External I/O Ports (48) 10/100/1000 and (4) SFP 1000 Mbps ports Maximum PoE+ available, depending on model
Latency 100 Mb Latency: < 7 µs 1000 Mb Latency: < 2.4 µs Maximum, depending on model
Routing/switching Capacity 104 Gbps Maximum, depending on model
Throughput 77.3 Mpps Maximum depending on model
PoE Capability 370W PoE+ Maximum depending on model
Management Features Web browser SNMP IEEE 802.3 Ethernet mib
Product Differentiator (long) Advanced smart managed 24-port Gigabit PoE+ high-power budget switch from our most popular switch series for small businesses. This model has 24x 10/100/1000 PoE/PoE+ ports as well as 2 SFP ports. Power over Ethernet budget is 370 Watts.
Power Consumption Description 435W (maximum), 34.2W (idle)
Input Voltage 100 – 240 VAC
External I/O Ports (24) RJ-45 auto-negotiating 10/100/1000 PoE+ ports (12) RJ-45 auto-negotiating 10/100/1000 ports (2) SFP 100/1000 Mbps ports
Latency 100 Mb Latency: < 7 µs 1000 Mb Latency: < 2.0 µs
Routing/switching Capacity 52 Gbps
Throughput up to 77.3 Mpps
PoE Capability 370W PoE+
Management Features Web browser SNMP IEEE 802.3 Ethernet mib
Weight (imperial) 9.7 lb
Weight (metric) 4.4 kg
Product Dimensions (imperial) 1.73 x 17.42 x 12.7 in
Product Dimensions (metric) 4.3 x 44.2 x 32.26 cm
Product Differentiator (long) Advanced smart managed 24-port Gigabit PoE+ switch from our most popular switch series for small businesses. This model has 24x 10/100/1000 ports as well as 2 SFP ports. 12 of the ports support PoE+/PoE with a Power over Ethernet budget of 185 Watts.
Power Consumption Description 207.9W (maximum), 19W (idle)
Input Voltage 207.9W (maximum), 19W (idle)
External I/O Ports (12) RJ-45 auto-negotiating 10/100/1000 PoE+ ports (12) RJ-45 auto-negotiating 10/100/1000 ports (2) SFP 100/1000 Mbps ports
Latency 100 Mb Latency: < 7 µs 1000 Mb Latency: < 2.0 µs
Routing/switching Capacity 52 Gbps
Throughput up to 38.6 Mpps
PoE Capability 185W PoE+
Management Features Web browser SNMP IEEE 802.3 Ethernet mib
Weight (imperial) 7.3 lb
Weight (metric) 3.31 kg
Product Dimensions (imperial) 1.73 x 17.42 x 9.69 in
Product Dimensions (metric) 4.39 x 44.25 x 24.61 cm
Product Differentiator (long) Advanced smart managed 24-port Gigabit switch from our most popular switch series for small businesses. This model has 24x 10/100/1000 ports as well as 2 SFP ports.
Power Consumption Description 15.7W (maximum), 11.6W (idle)
Input Voltage15.7W (maximum), 11.6W (idle)
External I/O Ports (24) RJ-45 auto-negotiating 10/100/1000 ports (2) SFP 100/1000 Mbps ports
Latency 100 Mb Latency: < 7 µs 1000 Mb Latency: < 2.0 µs
Routing/switching Capacity 52 Gbps
Throughput up to 38.6 Mpps
Management Features Web browser SNMP IEEE 802.3 Ethernet mib
Weight (imperial) 6 lb
Weight (metric) 2.72 kg
Product Dimensions (imperial) 1.73 x 17.42 x 9.69 in
Product Dimensions (metric) 4.39 x 44.25 x 24.61 cm
Product Differentiator (long) Advanced smart managed 48-port Gigabit PoE+ switch from our most popular switch series for small businesses. This model has 48x 10/100/1000 ports as well as 4 SFP ports. 24 of the ports support PoE+/PoE with a Power over Ethernet budget of 370 Watts.
Power Consumption Description 481W (maximum), 54.8W (idle)
Input Voltage 390.8W (maximum), 23.8W (idle)
External I/O Ports (24) RJ-45 auto-negotiating 10/100/1000 PoE+ ports (24) RJ-45 auto-negotiating 10/100/1000 ports (4) SFP 100/1000 Mbps ports
Latency 100 Mb Latency: < 7 µs 1000 Mb Latency: < 2.0 µs
Routing/switching Capacity 104 Gbps
Throughput up to 77.3 Mpps
Management Features Web browser SNMP IEEE 802.3 Ethernet mib
Weight (imperial) 9.7 lb
Weight (metric) 4.4 kg
Product Dimensions (imperial) 1.73 x 17.42 x 12.7 in
Product Dimensions (metric) 4.3 x 44.2 x 32.26 cm
Product Differentiator (long) Advanced smart managed 48-port Gigabit switch from our most popular switch series for small businesses. This model has 48x 10/100/1000 ports as well as 4 SFP ports.
Power Consumption Description 32.2W (maximum), 23.3W (idle)
Input Voltage 32.2W (maximum), 23.3W (idle)
External I/O Ports (48) RJ-45 auto-negotiating 10/100/1000 ports (4) SFP 100/1000 Mbps ports
Latency 100 Mb Latency: < 7 µs 1000 Mb Latency: < 2.0 µs
Routing/switching Capacity 104 Gbps
Throughput up to 77.3 Mpps
Management Features Web browser SNMP IEEE 802.3 Ethernet mib
Weight (imperial) 7.3 lb
Weight (metric) 3.31 kg
Product Dimensions (imperial) 1.73 x 17.42 x 9.69 in
Product Dimensions (metric) 4.39 x 44.25 x 24.61 cm
Product Differentiator (long) Advanced smart managed 8-port Gigabit PoE+ switch from our most popular switch series for small businesses. This model has 8x 10/100/1000 ports. 4 of the ports support PoE+/PoE with a Power over Ethernet budget of 65 Watts.
Power Consumption Description 72.9W (maximum), 9.7W (idle)
Input Voltage 72.9W (maximum), 9.7W (idle)
External I/O Ports (4) RJ-45 auto-negotiating 10/100/1000 PoE+ ports (4) RJ-45 auto-negotiating 10/100/1000 ports
Latency 100 Mb Latency: < 7 µs 1000 Mb Latency: < 2.3 µs
Routing/switching Capacity 16 Gbps
Throughput up to 11.9 Mpps
PoE Capability 65W PoE+
Management Features Web browser SNMP IEEE 802.3 Ethernet mib
Weight (imperial) 2.01 lb
Weight (metric) 0.91 kg
Product Dimensions (imperial) 1.73 x 10 x 6.28 in
Product Dimensions (metric) 4.39 x 25.4 x 15.95 cm
Product Differentiator (long) Advanced smart managed 8-port Gigabit switch from our most popular switch series for small businesses. This model has 8x 10/100/1000 ports.
Power Consumption Description 9.5W (maximum), 8.2W (idle)
Input Voltage 9.5W (maximum), 8.2W (idle)
External I/O Ports (8) RJ-45 auto-negotiating 10/100/1000 ports
Latency 100 Mb Latency: < 7 µs 1000 Mb Latency: < 2.4 µs
Routing/switching Capacity 16 Gbps
Throughput up to 11.9 Mpps
Management Features Web browser SNMP IEEE 802.3 Ethernet mib
Weight (imperial) 1.81 lb
Weight (metric) 0.82 kg
Product Dimensions (imperial) 1.73 x 10 x 6.28 in
Product Dimensions (metric) 4.39 x 25.4 x 15.95 cm
Terbaru
- Enam switch Layer 3 Gigabit lite konfigurasi tetap yang dikelola dengan cerdas dan canggih untuk konektivitas kinerja tinggi yang terjangkau.
- Model non-PoE dan PoE + 8-, 24- dan 48-port untuk fleksibilitas penerapan.
- Antarmuka Web yang sederhana dan konsisten untuk konfigurasi pengalihan yang mudah.
- Garansi Seumur Hidup Terbatas
Fitur Utama
Menyederhanakan Penyebaran dan Manajemen Jaringan untuk Organisasi Kecil
HPE OfficeConnect 1920S Switch Series memiliki fitur penerapan plug-and-play yang mudah digunakan, langsung dari kotaknya.
Seri ini menawarkan pilihan portofolio lengkap untuk meningkatkan fleksibilitas usaha kecil. Ini terdiri dari enam model yang dapat dipasang di rak termasuk 8G-, 24G- dan 48G-port dengan dan tanpa PoE +. Model PoE + port 24G dan 48G menawarkan konektivitas serat SPF.
Sakelar yang dikelola secara cerdas ini menggunakan antarmuka manajemen Web yang intuitif, untuk menyederhanakan penerapan dan manajemen sambil menawarkan kontrol granular dari fitur-fitur utama.
Menjaga Bisnis Anda Terlindungi dengan Keamanan yang Ditingkatkan
Seri Switch HPE OfficeConnect 1920S mendukung Ethernet Hemat Energi untuk konsumsi daya yang lebih rendah dan rangkaian fitur yang disempurnakan untuk pengoperasian yang lebih kuat.
Fitur keamanan yang ditingkatkan seperti Access Control List, IEEE 802.1x dan VLAN melindungi jaringan Anda dari akses yang tidak diinginkan atau tidak sah.
Keamanan manajemen membatasi akses ke perintah konfigurasi penting, menawarkan beberapa tingkat hak istimewa dengan perlindungan kata sandi dan mendukung http (https) yang aman.
Memberikan Kinerja Lebih Baik dengan Total Biaya Kepemilikan yang Lebih Rendah
Seri Sakelar HPE OfficeConnect 1920S menghadirkan fungsionalitas tingkat lanjut dalam sakelar yang dikelola dengan cerdas, termasuk rute statis Layer 3, port SFP, pembatasan laju, agregasi tautan, dan IGMP.
Seri sakelar mencakup opsi PoE + untuk memberi daya pada perangkat IP tanpa biaya pemasangan kabel tambahan.
Fitur ramah lingkungan seperti pematian port dan kepatuhan Ethernet Hemat Energi untuk efisiensi energi yang lebih besar.
Seri sakelar dilindungi oleh Garansi Seumur Hidup Terbatas dengan dukungan telepon 24×7 selama 90 hari dan jam kerja setelahnya.
