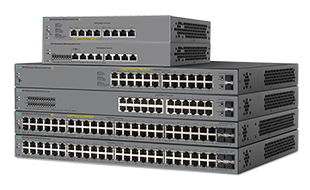

Aruba switch 1820 Series menawarkan lebih banyak pilihan dan fleksibilitas untuk organisasi kecil yang membutuhkan kemudahan penggunaan dan Total Cost of Ownership (TCO) yang lebih rendah, sekaligus memberikan kinerja jaringan yang lebih baik. Mereka adalah konfigurasi tetap yang dikelola secara cerdas, Gigabit Ethernet Layer 2 switch dalam solusi yang mudah dikelola yang memiliki kemampuan hemat energi terbaru. Sakelar ini adalah plug-and-play di luar kotak, di mana operasi jaringan dapat disetel dengan baik melalui fitur yang tersedia dari GUI berbasis browser Web sederhana, bila diperlukan.
-
Product Differentiator (long) The HPE 1820 Switch Series consists of basic smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches 8-, 24- and 48-port Gigabit Ethernet switches and 8-, 24-, and 48-port Gigabit PoE+ models.
Input Voltage 100-127/200-240 VAC
External I/O Ports (48) 10/100/1000 or (4) SPF 100/1000 Mbps ports depending on configuration. PoE/PoE+ available on select models
Routing/switching Capacity 104 Gbps maximum, depending on configuration
Switching Capacity 104 Gbps maximum, depending on model.
Throughput 77.3 Mpps maximum, depending on configuration
PoE Capability 370 W PoE+, depending upon configuration
Management Features Web browser
Warranty Features Not applicable Software releases: for details on the software releases available with your product purchase refer to www.hpe.com/networking/warrantysummary.
Product Differentiator (long) Basic smart managed 26-port Gigabit PoE+ switch, with 24 GE and 2 SFP ports. This model has 24x 10/100/1000 ports and 2x non-combo 1000/100 SFP ports for fiber connectivity. Of its ports, 12 ports support Power over Ethernet PoE/PoE+ with a power budget of 185W.
Power Consumption Description 240 W (maximum)
Input Voltage 100 – 127 / 200 – 240 VAC, rated (depending on power supply chosen)
External I/O Ports (12) RJ-45 autosensing 10/100/1000 PoE+ ports (12) RJ-45 autosensing 10/100/1000 ports (2) SFP 100/1000 Mbps ports
Latency 100 Mb Latency: < 7 µs 1000 Mb Latency: < 2 µs
Routing/switching Capacity 104 Gbps maximum, depending on configuration
Switching Capacity 52 Gbps
Throughput up to 38.6 Mpps
Memory and Processor ARM Cortex-A9 @ 400 MHz 128 MB SDRAM Packet buffer size: 1.5 MB 16 MB flash
PoE Capability 185 W PoE+
Management Features Web browser
Warranty Features 1 year, advance replacement, next business day, phone support
Detailed Product Description HPE OfficeConnect 1820 switch with 12 1GbE ports and 12 1GbE, power-over-Ethernet-plus (up to 185W)
Weight (imperial) 7.3 lb
Weight (metric) 3.31 kg
Product Dimensions (imperial) 17.42 x 9.69 x 1.73 in
Product Dimensions (metric) 44.25 x 24.61 x 4.39 cm
Product Differentiator (long) Basic smart managed 26-port Gigabit switch, with 24 GE and 2 SFP ports. This model has 24x 10/100/1000 ports and 2x non-combo 1000/100 SFP ports for fiber connectivity.
Power Consumption Description 22 W (maximum)
Input Voltage 100 – 127 / 200 – 240 VAC, rated (depending on power supply chosen)
External I/O Ports (24) RJ-45 autosensing 10/100/1000 ports (2) SFP 100/1000 Mbps ports Supports a maximum of 24 autosensing 10/100/1000 ports plus 2 SFP ports
Latency 100 Mb Latency: < 7 µs 1000 Mb Latency: < 2 µs
Routing/switching Capacity 104 Gbps maximum, depending on configuration
Switching Capacity 52 Gbps
Throughput up to 38.6 Mpps
Memory and Processor ARM Cortex-A9 @ 400 MHz 128 MB SDRAM Packet buffer size: 1.5 MB 16 MB flash
Management Features Web browser
Detailed Product Description HPE OfficeConnect 1820 switch with 24 1GbE ports and 2 SFP ports
Weight (imperial) lb
Weight (metric) 2.72 kg
Product Dimensions (imperial) 17.42 x 9.69 x 1.73 in
Product Dimensions (metric) 44.25 x 24.61 x 4.39 cm
Product Differentiator (long) Basic smart managed 52-port Gigabit PoE+ switch, with 48 GE and 4 SFP ports. This model has 48x 10/100/1000 ports and 4x non-combo 1000/100 SFP ports for fiber connectivity. Of its ports, 24 ports support Power over Ethernet PoE/PoE+ with a power budget of 370W.
Power Consumption Description 481 W (maximum)
Input Voltage 100 – 127 / 200 – 240 VAC, rated (depending on power supply chosen)
External I/O Ports (24) RJ-45 autosensing 10/100/1000 PoE+ ports (24) RJ-45 autosensing 10/100/1000 ports (4) SFP 100/1000 Mbps ports
Mb Latency: < 7 µs 1000 Mb Latency: < 2 µs
Routing/switching Capacity 104 Gbps maximum, depending on configuration
Switching Capacity 104 Gbps
Throughput up to 77.3 Mpps
Memory and Processor ARM Cortex-A9 @ 400 MHz 128 MB SDRAM Packet buffer size: 1.5 MB 16 MB flash
PoE Capability 370 W PoE+
Management Features Web browser
Detailed Product Description HPE OfficeConnect 1820 switch with 24 1GbE ports and 24 1GbE, power-over-Ethernet-plus ports (up to 370W)
Weight (imperial) 9.7 lb
Weight (metric) 4.4 kg
Product Dimensions (imperial) 17.42 x 12.7 x 1.73 in
Product Dimensions (metric) 44.25 x 32.26 x 4.39 cm
Product Differentiator (long) Basic smart managed 52-port Gigabit switch, with 48 GE and 4 SFP ports. This model has 48x 10/100/1000 ports and 4x non-combo 1000/100 SFP ports for fiber connectivity.
Power Consumption Description 39 W (maximum)
Input Voltage 100 – 127 / 200 – 240 VAC, rated (depending on power supply chosen)
External I/O Ports (48) RJ-45 autosensing 10/100/1000 ports (4) SFP 100/1000 Mbps ports Supports a maximum of 48 autosensing 10/100/1000 ports plus 4 SFP ports
Latency 100 Mb Latency: < 7 µs 1000 Mb Latency: < 2 µs
Routing/switching Capacity 104 Gbps maximum, depending on configuration
Switching Capacity 104 Gbps
Throughput up to 77.3 Mpps
Memory and Processor ARM Cortex-A9 @ 400 MHz 128 MB SDRAM Packet buffer size: 1.5 MB 16 MB flash
Management Features Web browser
Detailed Product Description HPE OfficeConnect 1820 switch with 48 1GbE ports
Weight (imperial) 7.3 lb
Weight (metric) 3.31 kg
Product Dimensions (imperial) 17.42 x 9.69 x 1.73 in
Product Dimensions (metric) 44.25 x 24.61 x 4.39 cm
Product Differentiator (long) Basic smart managed 8-port Gigabit PoE+ switch. This model has 8x 10/100/1000 ports, four of which support Power over Ethernet PoE/PoE+ with a power budget of 65W.
Power Consumption Description 83.9 W (maximum)
Input Voltage 100 – 240 VAC, rated (depending on power supply chosen)
External I/O Ports (4) RJ-45 autosensing 10/100/1000 PoE+ ports (4) RJ-45 autosensing 10/100/1000 ports
Latency 100 Mb Latency: < 7 µs 1000 Mb Latency: < 2.3 µs
Routing/switching Capacity 104 Gbps maximum, depending on configuration
Switching Capacity 16 Gbps
Throughput up to 11.9 Mpps
Memory and Processor ARM Cortex-A9 @ 400 MHz 128 MB SRAM Packet buffer size: 1.5 MB 16 MB flash
PoE Capability 65 W PoE+
Management Features Web browser
Detailed Product Description HPE OfficeConnect 1820 switch with 4 1GbE ports and 4 1GbE, power-over-Ethernet-plus ports (up to 65W)
Weight (imperial) 2.01 lb
Weight (metric) 0.91 kg
Product Dimensions (imperial) 10 x 6.28 x 1.73 in
Product Dimensions (metric) 25.4 x 15.95 x 4.39 cm
Product Differentiator (long) Basic smart managed 8-port Gigabit switch. This model has 8x 10/100/1000 ports.
Power Consumption Description 12.2 W (maximum)
Input Voltage 100 – 240 VAC, rated (depending on power supply chosen)
External I/O Ports (8) RJ-45 autosensing 10/100/1000 ports Supports a maximum of 8 autosensing 10/100/1000 ports
Latency 100 Mb Latency: < 7 µs 1000 Mb Latency: < 2.4 µs
Routing/switching Capacity 104 Gbps maximum, depending on configuration
Switching Capacity 16 Gbps
Throughput up to 11.9 Mpps
Memory and Processor ARM Cortex-A9 @ 400 MHz 128 MB SDRAM Packet buffer size: 1.5 MB 16 MB flash
Management Features Web browser
Detailed Product Description HPE OfficeConnect 1820 switch with 8 1GbE ports
Weight (imperial) 1.81 lb
Weight (metric) 0.82 kg
Product Dimensions (imperial) 10 x 6.28 x 1.73 in
Product Dimensions (metric) 25.4 x 15.95 x 4.39 cm
Terbaru
- Antarmuka manajemen Web yang intuitif dengan panel navigasi yang disempurnakan.
- Model non-PoE dan PoE + untuk fleksibilitas penerapan.
- Desain tanpa kipas tersedia pada empat model untuk pengoperasian yang tenang.
- Fitur yang dapat disesuaikan untuk meningkatkan kinerja jaringan.
Garansi Seumur Hidup Terbatas.
Fitur Utama
Mudah Digunakan, Sederhana untuk Disebarkan dan dikelola
HPE 1820 Switch Series memiliki fitur antarmuka manajemen Web yang intuitif dengan panel navigasi yang disempurnakan untuk memudahkan manajemen perangkat oleh pengguna non-teknis. Seri HPE 1820 Switch ideal untuk organisasi yang membutuhkan kesederhanaan.
Seri ini memberi Anda fleksibilitas dan pilihan dengan portofolio lengkap. Anda mendapatkan enam model yang dapat dipasang di rak termasuk tiga model non-Power over Ethernet (PoE). Beberapa model menyertakan port SFP untuk konektivitas serat.
Fitur yang dapat disesuaikan termasuk VLAN, Spanning Tree, Link aggregation trunking, dan IGMP Snooping. Semua model menyertakan kebijakan Rapid Spanning Tree Protocol (RSTP) dan DSCP QoS.
Sakelar ini mendukung opsi pemasangan yang fleksibel, termasuk pemasangan di dinding, di bawah meja, atau di atas meja.
Beberapa model memiliki desain tanpa kipas, membuatnya tenang untuk penggunaan di kantor.
Efisiensi Energi dan TCO yang Lebih Rendah
Seri Sakelar HPE 1820 menyertakan kemampuan penghematan energi terbaru, termasuk Energy Efficient Ethernet (IEEE), daya mati port-idle, dan Penjadwal Port PoE.
Model 8-port Gigabit Ethernet dapat diberi daya oleh sakelar PoE hulu untuk lingkungan di mana tidak ada aliran listrik yang tersedia.
Semua sakelar dilindungi oleh Garansi Seumur Hidup Terbatas.
Quality of Service (QoS)
Prioritas lalu lintas HPE 1820 Switch Series menyediakan paket yang sensitif terhadap waktu (seperti VoIP dan video) dengan prioritas di atas lalu lintas lain berdasarkan klasifikasi DSCP atau IEEE 802.1p. Paket dipetakan ke delapan antrian perangkat keras untuk hasil yang lebih efektif.
Kontrol siaran memungkinkan pembatasan laju lalu lintas siaran, untuk mengurangi lalu lintas siaran jaringan yang tidak diinginkan.
IEEE 802.11p / Q mengirimkan data ke perangkat berdasarkan prioritas dan jenis lalu lintas.
