Ruijie Indonesia Wireless Controller Series Overview
Ruijie Indonesia’s Wireless Controllers, Ruijie Wireless Controller Series is designed to support the next generation of high speed wireless networks. Wireless Controllers can be used on Layer 2 or Layer 3 networks to communicate with wireless access points (AP) without architectural or hardware changes, offering seamless and secure wireless control. Wireless Controllers can manage up to 128 AP by default and a maximum capacity of 2,560 AP with an increased license.
Wireless Controllers support Ruijie Indonesia’s Products Wireless Controller Series centralized and transparent network management, greatly simplifying network deployment. With RG-SNC Smart Network Commander and the leading AP series in Ruijie, the Wireless Controller significantly minimizes workload placement by supporting AP configuration management, optimization of radio frequency (RF) range, and cluster management.
Wireless Controllers enable Ruijie Indonesia services based on the role of Ruijie Wireless Controller Series with the latest technology and clustering technology. Ruijie Indonesia Products Ruijie Wireless Controller Series and Clustering Technology share wireless user databases among many controllers and allow Wi-Fi users to roam seamlessly on the network. The Ruijie Wireless Controller truly delivers smooth wireless voice communication and other services with superior security and availability.
Wireless Controller series features:
- Scalable up to 2,560 APs and 80K Clients
- Built-in with Advanced Wireless Radio Management and WIPS Security Protection
- Support Seamless L2/L3 Roaming
- Support N+a, N+N Resiliency
- Built-in with Portal Server for Web Authentication
Smart Wireless Experience
Intelligent Identification of Smart Devices
The default portal server from the Wireless Controller Series intelligently identifies the type of smart device, providing an adaptive authentication page that matches the screen automatically. The smart features of Ruijie Indonesia Products The Ruijie Wireless Controller Series fixes the difficulty of screen size and therefore offers a better wireless user experience. This feature supports all major operating systems including Apple iOS, Android and Windows.
Fair Scheduling
Working closely with leading Ruijie AP series, Ruijie Indonesia Wireless Controller Series Products are equal to access time for smart devices no matter they are running 802.11g, 802.11n, 802.11ac or other standards. This feature eliminates high latency, slow network speeds, and problems with poor AP performance. The problem is caused by using an old wireless LAN card or long distance between the end device and the AP. The Wireless Controller Series ensures fair high-speed wireless networks for all devices anywhere and anytime.
Fair Scheduling Mechanism
Intelligent Load Balancing
On high density wireless LANs, the Wireless Controller Series intelligently distributes users between different APs according to the number of users and data traffic in real time. This feature balances load stress on each AP and increases average bandwidth and Quality of Service (QoS), offering higher network availability. In addition to the role and traffic-based balancing feature, the Wireless Control Series also supports load balancing in terms of frequency ranges. Because most Wi-Fi devices work at 2.4GHz by default while frequencies above 5GHz (802.11a / n / ac) can offer better throughput performance. With frequency based load balancing, the Wireless Controller Series allows users with dual-band devices to connect to 5GHz as the first priority. Bandwidth usage greatly increases 30-40% without additional costs. As such, the Wireless Controller Series provides the best-in-class wireless experience for all Ruijie clients.
Intelligent Load Balancing Mechanism
High Performance and Reliability
Exclusive 24-port PoE Support
Ruijie Indonesia Products Ruijie Wireless Controller Series In the Wireless Controller Series, the RG-WS6024 model tops the class by offering PoE power support and all-in-one wireless and wired management. The versatile controller supports wired Gigabit Ethernet access, 10G fiber uplink, and PoE / PoE + power supply. The RG-WS6024 offers three PoE power supply modes – automatic, energy saving and static – to meet various challenges of use. When an interface shuts down for a period of time, the system will automatically turn it off for extra energy efficiency. The EEE energy saving mode is another excellent feature. The system will automatically change the idle port to an energy saving mode. When there is a new packet, the system will issue a listening stream to the port to continue service. In addition, this controller offers management of up to 24 AP and can be upgraded to 128 AP with an increase in license. RG-WS6024 is ideal for acting as a wireless core for public education, small and medium business networks, and corporate branches.
Outstanding Scalability and Power Redundancy
The RG-WS6816 model is another feature model. The controller supports up to 2 expansion modules, offering 4 1000BASE-T / 1000BASE-X (WNM-4GE-S) combo ports and 2 10GBASE-X (WNM-2XS-S) ports. The RG-WS6816 also supports up to 2 power modules for extra durability.
Centralized or Distributed Intelligent Switching
The Wireless Controller Series can be used at the Layer 2 or Layer 3 level without modifying the original network architecture. Forming an integrated switching framework with AP, the controller handles all AP data exchange management easily.
With industry-leading local forwarding technology, Ruijie Indonesia Ruijie Wireless Controller Series Products eliminate traffic barriers that have been championed by various alternatives in the market. Local forwarding technology enables flexible deployment of AP data forwarding. In other words, the AP can determine whether to forward all data through a controller based on the Service Set ID (SSID) and user VLAN, or to send data directly to a cable network for local data exchange. Local forwarding technology enables large-scale, late-time, and real-time transmission of data over a cable network. With a high 802.11ac throughput, this greatly reduces the traffic pressure on the controller. This feature also makes wireless controllers more adaptive to heavy traffic demand applications such as high definition Video on Demand (VoD) and Voice over Wireless LAN (VoWLAN) in the future.
Flexible VLAN / IP-based Local Forwarding Policy
Intelligent RF Management
The Wireless Controller Series allows the AP to perform RF scanning on request in a wireless environment. By allowing frequency bands and wireless channels, AP and malicious networks can easily support it. The AP will approve the network administrator for action as soon as it is found, providing network protection at all times. Additionally, the Wireless Controller Series can control the real-time RF scanning function for signal and interference measurements. The control software also dynamically adjusts the traffic load, power, RF range, and channel allocation for maximum signal coverage and capacity.
Dead Zone Auto-coverage and Channel Adjustment
Seamless Roaming Experience
Advanced grouping technology that can be approved from online information and roaming records of all users among several Wireless Controllers. Simply put, user data and shared are shared in clusters, allowing wireless users to roam across the network. Ruijie Indonesia Products Ruijie Wireless Controller Series and Users can enjoy unlimited and secure roaming experiences with IP addresses and approval status remaining unchanged. The Wireless Controller Series supports fast roaming and voice services with clustering technology.
Seamless L2 & L3 Roaming
Remote Intelligent Perception Technology (RIPT)
In traditional network architectures where the AP FIT is managed centrally by the wireless controller, the packet received by the AP must be transmitted to the controller before being forwarded. When the wireless controller becomes incorrect, the AP will fail to function properly causing the entire network to be damaged. Ruijie’s newest RIPT provides you with a complete disaster recovery solution and enables the Wireless Controller Series to implement smart link perception. After the wrong controller is detected, the AP will immediately switch to smart mode to continue data forwarding, ensuring high availability of wireless networks and keeping wireless users online.
Remote Intelligent Perception Technology (RIPT) – Disaster Recovery
Abundant QoS Policies
The Wireless Controller Series supports a variety of QoS policies. By setting bandwidth limitations, higher priority is given to important applications than others. The Wireless Controller Series therefore provides guaranteed bandwidth performance for networks of all sizes.
Wireless IPv6 Access
The Wireless Controller Series fully supports IPv6 features and implements IPv6 forwarding in wireless networks. Both IPv4 and IPv6 users can automatically connect to the controller through the tunnel, allowing IPv6 applications to be covered by the wireless network.
Flexible and Comprehensive Security Policies
Local Authentication
The Wireless Controller Series supports local user databases. Together with the default portal, the controller supports easy web authentication for wireless users. Local authentication based on actual user requests is achieved for maximum cost savings, eliminating additional devices such as external portals and RADIUS servers. Network infrastructure is also very simplified. The Wireless Controller Series guarantees high security for small and medium networks at the lowest possible price.
User Data Encryption
The Wireless Controller Series fully supports advanced encryption technology such as Wired Equivalent Privacy (WEP), Temporal Key Integrity Protocol (TKIP), and Advanced Encryption Standard (AES), ensuring the security of end-to-end data transmission over wireless networks.
Standard Communication Protocol
Encrypted communication between the controller and the Access Point is activated with international standard Wireless Access Points (CAPWAP). Ruijie Indonesia’s Product Ruijie Wireless Controller Series and its functions ensure complete isolation of the cable network and ensure high security for real-time communication between Wireless Controllers and APs. CAPWAP also enables future third party AP deployments, offering superior scalability, user availability and maximized investment at the same time.
Virtual Wireless Packet Technology
With virtual AP technology, the Wireless Controller Series can partition multiple SSIDs in a network. Network administrators can separately encrypt and isolate subnets or VLANs that have the same SSID. Thus deployment allows authentication modes and encryption mechanisms to be determined for each SSID.
RF Security
The Wireless Controller Series allows the AP to support scanning of RF probes. This feature efficiently detects unauthorized access points or other RF interference sources. Ruijie Indonesia Product Ruijie Wireless Controller Series and Administrators will receive alerts as soon as they are detected, providing an easy way to monitor potential threats and usage status.
Protection Against Viruses and Attacks
Wireless Controller Series provides a variety of internal security mechanisms against the spread of viruses and network traffic attacks. The mechanism ensures secure network access only by authorized users. Such protection mechanisms include IP / MAC / WLAN binding, hardware ACL control, traffic-based bandwidth limitations and more. The Wireless Controller Series is the ideal partner for large campuses, hospitals or corporate networks with high security requirements for guest network access.
Secure User Access
The Wireless Controller Series supports Web Authentication, allowing users to authenticate using any web browser.
802.1X authentication is another security spotlight. The main difference from web authentication is that 802.1X allows IP / MAC / WLAN binding after authentication. This feature fully guarantees the validity of the user’s identity.
The Wireless Controller Series also supports the Rui-Rui-Ruijie Security Management Platform to provide insight and control over Ruijie’s network and security devices. RG-SMP offers comprehensive security management in a variety of Ruijie security equipment and allows users to manage office networks of all sizes for various industries, with security compliance requirements in aspects of user identity, host health, and network communication security.
Flexible Authentication Modes
In addition to traditional Web Authentication and 802.1X Authentication, the Wireless Controller Series also supports PEAP Authentication, SMS Authentication, and QR Code Authentication.
PEAP authentication allows users to authenticate a password just once. That means users are only asked to enter credentials during their first network visit.
If SMS authentication is adopted, the user enters first with their mobile number and then receives an SMS with the user name and login password for network access.
QR code authentication is another wireless security highlight. After accessing the wireless network, users will get a QR code on their end device and simply ask the authorized staff to scan for network access.
Advanced Guest Wireless Interfaces of the QR Code Authentication
Protection Against ARP Spoofing
Address Resolution Protocol (ARP) detection effectively protects network users from ARP spoofing gateways and host spoofing for secure wireless access. Automatic bonding can be activated in a dynamic and static IP address allocation environment to greatly save labor resources and management costs. The Wireless Controller Series can monitor and control the rate at which ARP packets are sent to prevent the use of dangerous scanning equipment, which triggers ARP flooding and causes network congestion.
Rogue AP Countermeasure
The Wireless Controller Series enables effective detection and containment of rogue APs to improve wireless security. The controller sets the active AP to detect misbehaving, sending probe packets and hearing probe responses from other valid APs. Network administrators can therefore easily choose a bad AP to ensure wireless network security.
Rogue AP and User Countermeasures
DHCP Security
With the Dynamic Host Configuration Protocol (DHCP) snooping, the Wireless Controller Series allows DHCP response messages only from trusted ports. Thus, the controller can prevent the spread of unauthorized DHCP servers to disrupt the allocation and management of IP addresses and affect the normal operation of the network. Ruijie Indonesia Product Ruijie Wireless Controller Series, With DHCP monitoring function, Wireless Controller can effectively prevent spoofing of ARP hosts and spoofing source IP addresses in a dynamic IP allocation environment by dynamically monitoring ARP and checking source IP addresses.
Management Information Security
To ensure device security and offer protection against attacks, Secure Shell (SSH) and SNMPv3 technology encrypts management information by Telnet and the Simple Network Management Protocol (SNMP). The Wireless Controller Series offers Telnet access control based on the source IP address, offering a high level of granularity in device management. Ruijie Indonesia Products Ruijie Wireless Controller Series and Only IP addresses allowed by network administrators can enter the controller, which further enhances the security of the device network management.
Unified Network Management
Multiple Management Protocols and Unified Management Platform
The Wireless Controller Series supports a large number of management modes including the Command Line. Controllers offer centralized and efficient planning, deployment, monitoring and management of all APs, with minimal investment costs. Working with Ruijie RG-SNC Smart Network Commander which is an all-round network management platform, Wireless Controller Series provides enriched network management services such as topology creation, AP operating status, online user status, all RF network planning, user location, security warnings, link loads , device usage level, roaming notes and report output. Ruijie Indonesia Product Ruijie Wireless Controller Series and functions allow network administrators to monitor and manage the operating status of the entire network in the data center.
Ruijie SNC Unified Topology Diagram
Web Interface Management
The Wireless Controller Series supports a web management interface, which provides simplified wireless configuration and high visibility for all network operations. With the AC web interface, the controller not only manages the APs, but also the associated AP users. Ruijie Indonesia Products Ruijie Wireless Controller Series features achieve control over user bandwidth control and network access. Network administrators can therefore plan, operate and maintain wireless networks easily.
Ruijie Smart Web Management Interface
Next-Gen Cloud Infrastructure & Technologies
Centralized User Management

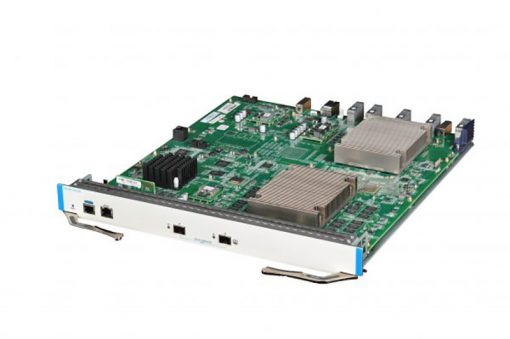

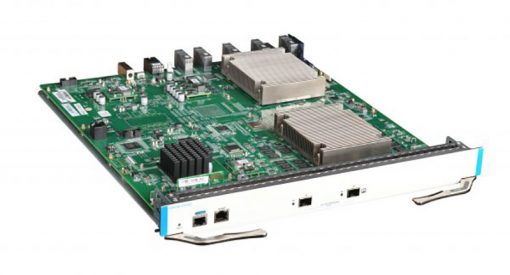

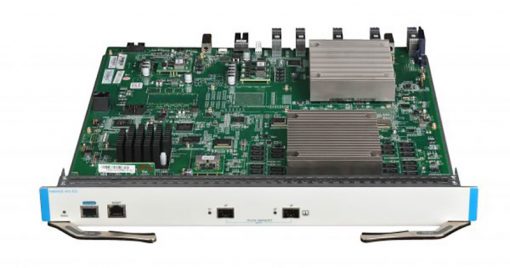

In the Wireless Controller Series, RG-M8600E-WS-ED and RG-M18000-WS-ED (for Ruijie RG-S8600E and RG-N18000 series series respectively) take the core role for centralized user management in the Ruijie Simplicity Campus Network (SCN ) Solution. Working together with each series of switches and 802.1X / default / external portal systems, these two wireless controller modules support integrated wired and wireless authentication on the core device. Ruijie Indonesia Products Ruijie Wireless Controller Series and Modules support ultra-large ARP capacity, along with ≥90K dual stack IPv4 / IPv6 devices for centralized authentication of up to 1,000 devices per second.
RG-M18000-WS-ED and RG-M8600E-WS-ED are exclusively designed for switches above
Multi-processing Modular Operating System
Ruijie Indonesia’s Ruijie Wireless Controller Series Multi Modular Operating System and Modular Operating Product Partners have devoted R&D resources to modular operating systems since 1998. The RG-M8600E-WS-ED and RG-M18000-WS-ED software platforms are designed based on next-gen RGOS 11.X modular multi-processing operating system. Ruijie Indonesia Products Ruijie Wireless Controller Series OS integrates service features such as firewall, wireless, IPFIX and authentication all into one cloud platform. Therefore, the platform fully supports virtualization and offers a wide range of campus data center and network features. Ruijie Indonesia Product Ruijie Wireless Controller OS Series supports isolation failures between multi-processing modules. Upgrading certain components or adding new features will not affect overall performance. The standby feature will not occupy any system resources. Modular OS takes software stability to a new level.
Architecture and Benefits of Multi-process Modular Operating System
|
Model |
RG-WS6008 |
RG-WS6108 |
RG-WS6816 |
RG-WS6024 |
RG-M8600E -WS-ED |
RG-M18000 -WS-ED |
|
|
Model |
RG-WS6008 |
RG-WS6108 |
RG-WS6816 |
RG-WS6024 |
RG-M8600E -WS-ED |
RG-M18000 -WS-ED |
|
|
Service Ports |
6 1000BASE-T ports |
6 1000BASE-T ports |
8 1000BASE-T/1000BASE-X ports (combo) |
24 10/100/1000BASE-T ports |
2 1G/10GBASE-X SFP+ ports |
2 1G/10GBASE-X SFP+ ports |
|
|
Management Ports |
1 console port |
1 console port |
1 console port |
1 console port |
1 console port |
1 console port |
|
|
LED Indicators |
Status, Link/ACT |
||||||
|
Security Standard |
GB4943, EN/IEC 60950-1 |
GB4943, EN/IEC 60950-1 |
GB4943-2011 |
GB4943-2011 |
GB4943-2011 |
GB4943-2011 |
|
|
EMC Standard |
GB9254, EN301 489 |
GB9254, EN301 489 |
GB9254-2008, CLASS A |
GB9254-2008 |
GB9254-2008 |
GB9254-2008, CLASS A |
|
|
Performance |
Switching Capacity |
N/A |
N/A |
N/A |
128Gbps |
N/A |
N/A |
|
Packet Forwarding Rate |
N/A |
N/A |
N/A |
96Mpps |
N/A |
N/A |
|
|
Default Number of Manageable APs |
32 |
32 |
128 |
24 |
128 |
128 |
|
|
Maximum Number of Manageable APs |
200 APs or 400 wall APs (with license upgrade) |
320 APs or 640 wall APs (with license upgrade) |
2,560 APs or 4,000 wall APs (with license upgrade) |
128 (with license upgrade) |
2,560 (with license upgrade) |
2,560 (with license upgrade) |
|
|
Maximum Number of Configurable APs |
2,048 |
2,048 |
16K |
96 (up to 512 with license upgrade) |
16K |
16K |
|
|
Maximum Number of Clients |
6,400 |
10K |
80K |
768 (up to 4,096 with license upgrade) |
80K |
80K |
|
|
802.11 Performance |
8Gbps |
8Gbps |
48Gbps |
N/A |
48Gbps |
48Gbps |
|
|
VLAN |
4,094 |
||||||
|
Maximum Number of Clients Supported by the Built-in Portal |
1,500 |
7,500 |
7,500 |
768 (up to 4,096 with license upgrade) |
10K |
10K |
|
|
ACL |
64K |
64K |
512K |
1,500 |
512K |
512K |
|
|
Number of Wireless Users |
6,400 |
10K |
80K |
1K |
80K |
80K |
|
|
MAC Address Table |
16K |
16K |
128K |
16K |
128K |
128K |
|
|
Local Authentication |
300 wireless clients |
300 wireless clients |
300 wireless clients |
768 (up to 4,096 with license upgrade) |
10K wireless clients |
10K wireless clients |
|
|
ARP Table |
12K |
12K |
96K |
1K |
96K |
96K |
|
|
IPv6 Neighbor Table |
10K |
10K |
10K |
500 |
10K |
10K |
|
|
Inter-AC Roaming Switch Time |
≤50ms |
||||||
|
LAN |
802.1Q VLAN |
Support |
Support |
Support |
4K 802.1Q VLAN, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, Private VLAN, IP subnet-based VLAN, GVRP |
Support |
Support |
|
PoE |
N/A |
N/A |
N/A |
Support PoE/PoE+ (802.3af/at) |
N/A |
N/A |
|
|
QinQ |
N/A |
N/A |
N/A |
Basic QinQ, Flexible QinQ, N:1 VLAN switching, 1:1 VLAN switching |
N/A |
N/A |
|
|
ACL |
Standard IP ACL, Extended IP ACL, MAC-extended ACL, Expert ACL |
Standard IP ACL, Extended IP ACL, MAC-extended ACL, Expert ACL |
Standard IP ACL, Extended IP ACL, MAC-extended ACL, Expert ACL |
Standard IP ACL (hardware ACL based on IP address), Extended IP ACL (based on IP address and TCP/UDP port number), MAC-extended ACL (based on source and destination MAC addresses and optional Ethernet type), Time-based ACL, Expert ACL (based on the flexible combination of VLAN number, Ethernet type, MAC address, IP address, TCP/UDP port, protocol type, and time), ACL80, IPv6 ACL, ACL logging, ACL counter, ACL remark, Global ACL, ACL redirect |
Standard IP ACL, Extended IP ACL, MAC-extended ACL, Expert ACL |
Standard IP ACL, Extended IP ACL, MAC-extended ACL, Expert ACL |
|
|
QoS |
N/A |
N/A |
N/A |
Port traffic identification, Port traffic control, 802.1p/DSCP/TOS traffic classification, 8 priority queues on each port, SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR, RED/WRED queue scheduling |
N/A |
N/A |
|
|
WLAN |
LAN Protocols |
ARP, VLAN, 802.1p, 802.1q, 802.1d, 802.1w, 802.1s |
|||||
|
802.11 LAN Protocols |
802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n |
802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n |
802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n |
802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac |
802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac |
802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac |
|
|
CAPWAP |
Layer 2/Layer 3 network topology between an AP and AC |
||||||
|
Roaming |
Intra-AC Layer 2/Layer 3 roaming, Inter-AC Layer 2/Layer 3 roaming, Intra-AC Layer 2/Layer 3 roaming under local forwarding, Inter-AC Layer 2/Layer 3 roaming under local forwarding |
Intra-AC Layer 2/Layer 3 roaming, Inter-AC Layer 2/Layer 3 roaming, Intra-AC Layer 2/Layer 3 roaming under local forwarding, Inter-AC Layer 2/Layer 3 roaming under local forwarding |
Intra-AC roaming, Inter-AC roaming |
Intra-AC Layer 2/Layer 3 roaming, Inter-AC Layer 2/Layer 3 roaming, Intra-AC Layer 2/Layer 3 roaming under local forwarding, Inter-AC Layer 2/Layer 3 roaming under local forwarding |
Intra-AC roaming, Inter-AC roaming |
Intra-AC roaming, Inter-AC roaming |
|
|
Forwarding |
Local forwarding, Centralized forwarding, Flexible forwarding based on service |
Local forwarding, Centralized forwarding, Flexible forwarding based on service |
Local forwarding, Centralized forwarding |
Local forwarding, Centralized forwarding |
Local forwarding, Centralized forwarding, AP-based bandwidth control, User isolation under the same SSID |
Local forwarding, Centralized forwarding, AP-based bandwidth control, User isolation under the same SSID |
|
|
Wireless QoS |
AP-based bandwidth control, WLAN-based bandwidth control, User-based static and smart speed control, Fair balancing |
AP-based bandwidth control, WLAN-based bandwidth control, User-based static and smart speed control, Fair balancing |
AP-based bandwidth control, WLAN-based bandwidth control, User-based static and smart speed control, Fair balancing |
AP-based bandwidth control, WLAN-based bandwidth control, User-based static and smart speed control, Fair balancing |
User/SSID-based rate limit (granularity: 8Kbit/s), WMM (802.11e), Wireless priority to wired priority projection, Wireless user priority to CAPWAP tunnel priority projection |
User/SSID-based rate limit (granularity: 8Kbit/s), WMM (802.11e), Wireless priority to wired priority projection, Wireless user priority to CAPWAP tunnel priority projection |
|
|
User Isolation |
AC-based user isolation |
||||||
|
Reliability |
Fast switching between 2 ACs, Multiple ACs redundancy (1:1 A/A and A/S, N:1), Multiple ACs clustering (N:N), Remote Intelligent Perception Technology (RIPT), Service upgrade |
Fast switching between 2 ACs, Multiple ACs redundancy (1:1 A/A and A/S, N:1), Multiple ACs clustering (N:N), Remote Intelligent Perception Technology (RIPT), Service upgrade |
Fast switching between 2 ACs, Multiple ACs redundancy (1:1 A/A and A/S, N:1), Multiple ACs clustering (N:N), Remote Intelligent Perception Technology (RIPT), Service upgrade |
Fast switching between 2 ACs, Multiple ACs redundancy (1:1 A/A and A/S, N:1), Multiple ACs clustering (N:N), Remote Intelligent Perception Technology (RIPT), Service upgrade |
Fast switching between 2 ACs, Multiple ACs redundancy (1:1 and N:1), Dual power supplies |
Fast switching between 2 ACs, Multiple ACs redundancy (1:1 and N:1), Dual power supplies |
|
|
STA Management |
AP-based STA access control, SSID-based STA access control, AP-based load balancing, AP traffic-based load balancing, 5G priority access, RSSI threshold |
AP-based STA access control, SSID-based STA access control, AP-based load balancing, AP traffic-based load balancing, 5G priority access, RSSI threshold |
AP-based STA access control, SSID-based STA access control, AP-based load balancing, AP traffic-based load balancing, 5G priority access, RSSI threshold |
AP-based STA access control, SSID-based STA access control, AP-based load balancing, AP traffic-based load balancing, 5G priority access, RSSI threshold |
User-based bandwidth limit, User-based access control, Port mirroring |
User-based bandwidth limit, User-based access control, Port mirroring |
|
|
STA RSSI Threshold |
0 to 100 |
||||||
|
STA Idle Timeout |
60 to 86,400 seconds |
60 to 86,400 seconds |
60 to 86,400 seconds |
90 to 86,400 seconds |
90 to 86,400 seconds |
90 to 86,400 seconds |
|
|
STA Average Data Rate Threshold |
8 to 819,200 with the accuracy of 8Kbps |
||||||
|
Adjusting Transmit Power of Beacon and Probe Response |
Support |
||||||
|
Offline Syslog |
Support |
||||||
|
RF Management |
Setting country codes, Manually setting transmit power, Automatically setting transmit power, Automatically setting working channel, Automatically adjusting transmission rate, Support blackhole compensation, Support RF interference detection and avoidance |
Setting country codes, Manually setting transmit power, Automatically setting transmit power, Automatically setting working channel, Automatically adjusting transmission rate, Support blackhole compensation, Support RF interference detection and avoidance |
Setting country codes, Manually setting transmit power, Automatically setting transmit power, Automatically setting working channel, Automatically adjusting transmission rate, Support blackhole compensation, Support RF interference detection and avoidance |
Setting country codes, Manually setting transmit power, Automatically setting transmit power, Automatically setting working channel, Automatically adjusting transmission rate, Support blackhole compensation, Support RF interference detection and avoidance |
Setting country codes, Manually setting transmit power, Automatically setting transmit power, Manually setting working channel, Automatically setting working channel, Automatically adjusting transmission rate, Support blackhole compensation, AP load balancing based on traffic and user number, Support RF interference detection and avoidance |
Setting country codes, Manually setting transmit power, Automatically setting transmit power, Manually setting working channel, Automatically setting working channel, Automatically adjusting transmission rate, Support blackhole compensation, AP load balancing based on traffic and user number, Support RF interference detection and avoidance |
|
|
Security |
IPv4/v6 Security |
Web authentication, 802.1x authentication, PEAP authentication, SMS authentication, QR code authentication |
Web authentication, 802.1x authentication, PEAP authentication, SMS authentication, QR code authentication |
Web authentication, 802.1x authentication, PEAP authentication, SMS authentication, QR code authentication |
Web authentication, 802.1x authentication, PEAP authentication, SMS authentication, QR code authentication |
Web authentication, 802.1x authentication (EAP-PEAP, EAP-SIM, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP-MSCHAPv2, EAP-FAST, EAP-AKA), MAC address authentication, WAPI authentication |
Web authentication, 802.1x authentication (EAP-PEAP, EAP-SIM, EAP-MD5, EAP-TLS, EAP-TTLS, PEAP-MSCHAPv2, EAP-FAST, EAP-AKA), MAC address authentication, WAPI authentication |
|
802.11 Security and Encryption |
Multiple SSIDs, SSID hiding, 802.11i-compliant PSK authentication, WPA and WPA2, WEP (WEP/WEP128), WAPI, TKIP, CCMP, Protection against ARP spoofing |
Multiple SSIDs, SSID hiding, 802.11i-compliant PSK authentication, WPA and WPA2, WEP (WEP/WEP128), WAPI, TKIP, CCMP, Protection against ARP spoofing |
Multiple SSIDs, SSID hiding, 802.11i-compliant PSK authentication, WPA and WPA2, WEP (WEP/WEP128), WAPI, TKIP, CCMP, Protection against ARP spoofing |
Multiple SSIDs, SSID hiding, 802.11i-compliant PSK authentication, WPA and WPA2, WEP (WEP/WEP128), WAPI, TKIP, CCMP, Protection against ARP spoofing |
Multiple SSIDs, SSID hiding, 802.11i-compliant PSK authentication, WPA and WPA2, WEP (WEP/WEP128), WAPI, TKIP, CCMP, Protection against ARP spoofing, Support IP/MAC binding via DHCP SNP, Support IP/MAC/WLAN binding via RADIUS server |
Multiple SSIDs, SSID hiding, 802.11i-compliant PSK authentication, WPA and WPA2, WEP (WEP/WEP128), WAPI, TKIP, CCMP, Protection against ARP spoofing, Support IP/MAC binding via DHCP SNP, Support IP/MAC/WLAN binding via RADIUS server |
|
|
AAA |
RADIUS client |
||||||
|
SMP |
Support |
||||||
|
CPP |
Support |
||||||
|
NFPP |
Support |
||||||
|
WIDS/WIPS |
Support |
Support |
Support |
Support |
Whitelist, Static/dynamic blacklist, Monitor and attack rogue wireless devices, Wireless attack protection |
Whitelist, Static/dynamic blacklist, Monitor and attack rogue wireless devices, Wireless attack protection |
|
|
Internet Protocols |
IPv4 Protocols |
Ping, Traceroute, DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DNS Client, NTP, Telnet, TFTP Server, TFTP Client, FTP Server, FTP Client |
Ping, Traceroute, DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DNS Client, NTP, Telnet, TFTP Server, TFTP Client, FTP Server, FTP Client | Ping, Traceroute, DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DNS Client, NTP, Telnet, TFTP Server, TFTP Client, FTP Server, FTP Client | Ping, Traceroute, DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DNS Client, NTP, Telnet, TFTP Server, TFTP Client, FTP Server, FTP Client |
Ping, Traceroute, DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DNS Client, NTP, Telnet, TFTP Client |
Ping, Traceroute, DHCP Server, DHCP Client, DHCP Relay, DHCP Snooping, DNS Client, NTP, Telnet, TFTP Client |
|
IPv6 Protocols |
DNSv6 Client, DHCPv6 Relay, DHCPv6 Server, TFTPv6 Client, FTPv6 Server, FTPv6 Client, IPv6 CAPWAP, ICMPv6, IPv6 Ping, IPv6 Traceroute, Manual tunnel, automatic tunnel |
DNSv6 Client, DHCPv6 Relay, DHCPv6 Server, TFTPv6 Client, FTPv6 Server, FTPv6 Client, IPv6 CAPWAP, ICMPv6, IPv6 Ping, IPv6 Traceroute, Manual tunnel, automatic tunnel |
DNSv6 Client, DHCPv6 Relay, DHCPv6 Server, TFTPv6 Client, FTPv6 Server, FTPv6 Client, IPv6 CAPWAP, ICMPv6, IPv6 Ping, IPv6 Traceroute, Manual tunnel, automatic tunnel |
DNSv6 Client, DHCPv6 Relay, DHCPv6 Server, TFTPv6 Client, FTPv6 Server, FTPv6 Client, IPv6 CAPWAP, ICMPv6, IPv6 Ping, IPv6 Traceroute, Manual tunnel, automatic tunnel |
Dual stack IPv4/v6, Manual tunnel, ISATAP, 6to4 tunnel, IPv4 over IPv6 tunnel, DHCPv6, DNSv6, ICMPv6, ACLv6, TCP/UDP for IPv6, SOCKET for IPv6, SNMP v6, Ping/Traceroute v6, RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS, Static routing, OSPFV3 |
Dual stack IPv4/v6, Manual tunnel, ISATAP, 6to4 tunnel, IPv4 over IPv6 tunnel, DHCPv6, DNSv6, ICMPv6, ACLv6, TCP/UDP for IPv6, SOCKET for IPv6, SNMP v6, Ping/Traceroute v6, RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS, Static routing, OSPFV3 |
|
|
IPv4 Routing |
Static routing, OSPF |
Static routing, OSPF |
Static routing, OSPF |
Static routing, RIP |
Static routing, OSPF |
Static routing, OSPF |
|
|
IPv4 Routing Table Capacity |
8K |
8K |
8K |
500 |
8K |
8K |
|
|
IPv4 Static Routing Table Capacity |
1K |
1K |
1K |
500 |
1K |
1K |
|
|
IPv6 Routing |
Static routing |
||||||
|
IPv6 Routing Table Capacity |
1K |
1K |
1K |
500 |
1K |
1K |
|
|
IPv6 Static Routing Table Capacity |
1K |
1K |
1K |
500 |
1K |
1K |
|
|
Management |
Network Management |
SNMP v1/v2c/v3, RMON, Remote probe |
SNMP v1/v2c/v3, RMON, Remote probe Syslog |
SNMP v1/v2c/v3, RMON, Remote probe Syslog |
SNMP v1/v2c/v3, RMON, Remote probe Syslog |
SNMP v1/v2c/v3, Web management, Syslog |
SNMP v1/v2c/v3, Web management, Syslog |
|
Network Management Platform |
Web management (Smart-web), RG-SNC management, Heat Map diagram, RILL management |
Web management (Smart-web), RG-SNC management, Heat Map diagram, RILL management |
Web management (Smart-web), RG-SNC management, Heat Map diagram, RILL management |
Web management (Smart-web), RG-SNC management, Heat Map diagram |
RG-SNC management |
RG-SNC management |
|
|
User Access Management |
Login via console port |
||||||
|
Dimensions (W × D × H) (mm) |
440 × 200 × 43.6 |
440 × 200 × 43.6 |
440 × 560 × 88.1 |
440 × 260 × 44 |
440 × 399 × 40.18 |
440 × 399 × 40.18 |
|
|
Rack Height |
1RU |
1RU |
2RU |
1RU |
1RU |
1RU |
|
|
Weight |
2kg |
2kg |
19kg |
5.8kg (including packing) |
4.58kg |
4.58kg |
|
|
MTBF |
248K hours |
||||||
|
Installation Mode |
19-inch rack |
19-inch rack |
19-inch rack |
19-inch rack |
Insert to RG-8600E module slot |
Insert to RG-N18000 module slot |
|
|
Power Supply |
Fixed power supply 100VAC to 240VAC, 50Hz to 60Hz |
Fixed power supply 100VAC to 240VAC, 50Hz to 60Hz |
Support up to 2 power supply modules 100VAC to 240VAC, 50Hz to 60Hz |
Support up to 2 power supply modules AC input: |
Power supply from RG-8600E chassis |
Power supply from RG-N18000 chassis |
|
|
Power Consumption |
<40W |
<40W |
<100W |
≤850W (24-port PoE+) |
<190W |
<190W |
|
|
Temperature |
Operating Temperature: 0ºC to 45ºC |
||||||
|
Storage Temperature: -40ºC to 70ºC |
|||||||
|
Humidity |
Operating Humidity: 10% to 90%RH (non-condensing) |
||||||
|
Storage Humidity: 5% to 95%RH (non-condensing) |
|||||||
|
Operating Altitude |
0-3000m |
0-3000m |
0-3000m |
0-3000m |
-500M to 5,000M |
-500M to 5,000M |
|
|
Model |
Description |
|
RG-WS6008 |
WS Series Wireless Controller, 6 1000BASE-T ports, 2 1000BASE-T/1000BASE-X ports (combo), 32 APs License by default, maximum 200 APs or 400 Wall APs License |
|
RG-WS6108 |
WS Series Wireless Controller, 6 1000BASE-T ports, 2 1000BASE-T/1000BASE-X ports (combo), 32 APs License by default, maximum 320 APs or 640 Wall APs License |
|
RG-WS6816 |
WS Series Wireless Controller, 8 1000BASE-T/1000BASE-X ports (combo), 4 1G/10GBASE-X SFP+ ports, 2 Expansion Slots, support dual redundant power supply, 128 APs License by default, maximum 2,560 APs or 4,000 Wall APs License (Power module sold separately) |
|
RG-WS6024 |
WS Series Wireless Controller, 24 10/100/1000BASE-T ports (PoE+), 2 100/1000M SFP ports (combo), 2 1G/10GBASE-X SFP+ ports, 2 Expansion Slots, 24 APs License by default, maximum 128 APs License
(Power module sold separately and at least one module required) |
|
RG-M8600E-WS-ED |
WS Series Wireless Controller Module for RG-S8600E Switch Series, 2 1G/10GBASE-X SFP+ ports, 128 APs License by default, maximum 2560 APs or 4000 Wall APs License |
|
RG-M18000-WS-ED |
WS Series Wireless Controller Module for RG-N18000 Switch Series, 2 1G/10GBASE-X SFP+ ports, 128 APs License by default, maximum 2560 APs or 4000 Wall APs License |
| License | |
|
LIC-WS-16 |
WS Series Wireless Controller Upgrade License for 16 APs or 32 Wall APs (For RGOS 11.x or above) |
|
LIC-WS-32 |
WS Series Wireless Controller Upgrade License for 32 APs or 64 Wall APs (For RGOS 11.x or above) |
|
LIC-WS-128 |
WS Series Wireless Controller Upgrade License for 128 APs or 256 Wall APs (For RGOS 11.x or above) |
|
RG-LIC-WS-512 |
WS Series Wireless Controller Upgrade License for 512 APs or 1024 Wall APs (For RGOS 11.x(11.1(2)B1) or above) |
|
Optional Accessories |
|
|
RG-M6000-WS |
WS Series Wireless Controller Module for RG-WS6024, 32 APs License by default, maximum 128 APs/Wall APs License (Each RG-WS6024 supports maximum one RG-M6000-WS module) |
|
RG-PA300I |
AC Power Module for RG-WS6816, 300W |
|
RG-M5000E-AC500P |
AC Power Module for RG-WS6024, 370W power budget for PoE, up to 24 PoE ports or 12 PoE+ ports |
|
RG-PA1150P-F |
AC Power Module for RG-WS6024, 740W power budget for PoE, up to 48 PoE ports or 24 PoE+ ports |
|
RG-M5000E-DC500P |
DC Power Module for RG-WS6024, -32VDC to -72VDC input voltage, 370W power budget for PoE, up to 24 PoE ports or 12 PoE+ ports |
|
WNM-2XS-S |
Expansion Module for RG-WS6816, support 2 10GBASE-X ports |
|
WNM-4GE-S |
Expansion Module for RG-WS6816, support 4 1000BASE-T/1000BASE-X combo ports |
|
M2910-01XS |
1-Port 10G SFP+ Interface Module for RG-WS6024 PoE support |
|
M2910-01XT |
1-Port 10G copper Interface Module for RG-WS6024 PoE support |
|
XG-SFP-SR-MM850 |
10GBASE-SR, SFP+ Transceiver, MM (850nm, 300m, LC) |
|
XG-SFP-LR-SM1310 |
10GBASE-LR, SFP+ Transceiver, SM (1310nm, 10km, LC) |
