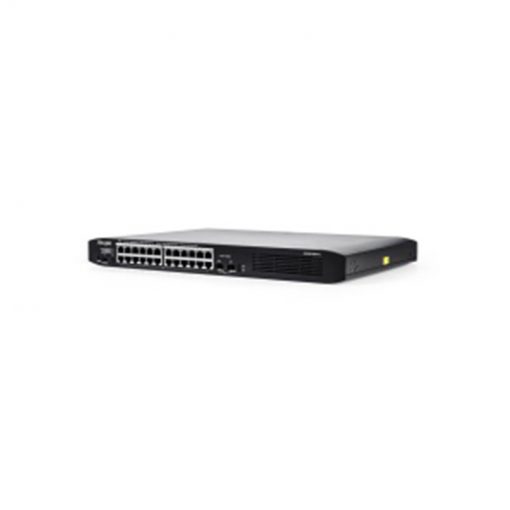

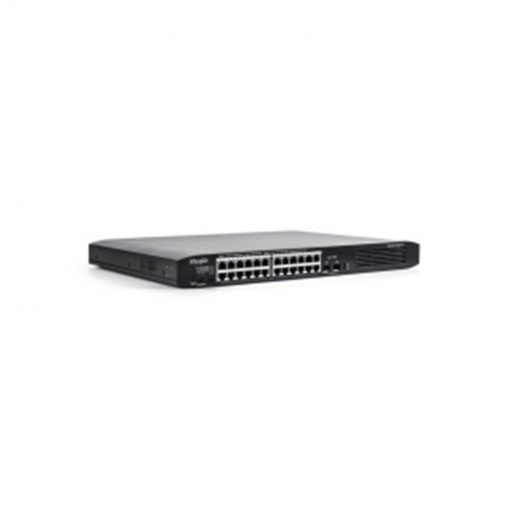

Reyee Switch RG-ES126G-P-L

Reyee Switch RG-ES126G-P-L. Sakelar Seri Ruijie RG-ES100 adalah sakelar tak terkelola generasi berikutnya untuk skenario seperti CCTV, ELV, dan kantor kecil.

Request a Quote

Deskripsi

RG-ES100 Series Unmanaged PoE Switches

Reyee Switch RG-ES126G-P-L. Switch Seri Ruijie RG-ES100 adalah Switch tak terkelola generasi berikutnya untuk skenario seperti CCTV, ELV, dan kantor kecil. Seri ini dirancang untuk bisnis kecil dan menengah yang mencari solusi Plug-n-Play.

Ruijie RG-ES100 Series adalah bagian dari produk jaringan UKM Ruijie. Seri ini terdiri dari 3 Switch termasuk satu model Gigabit PoE + 8 port dan dua model Switch Gigabit PoE + 24 port.

Switch ini dapat digunakan dengan plug-and-play out the box. Selain itu, fitur isolasi port dan kontrol aliran dapat dilakukan dengan flip sederhana dengan tombol di panel. Selain itu, status anggaran PoE dapat ditampilkan langsung pada indikator port, yang sangat membantu dalam pemecahan masalah.

Features

24-port dan 8 port Gigabit PoE untuk CCTV / ELV dan skenario UKM lainnya
Manajemen sederhana tombol sekali klik di luar Plug-n-Play
Pilihan anggaran 370W dan 180W PoE pada model 24-port
Semua port 8/24 memiliki kemampuan PoE / PoE +, jangan ragu untuk memilih port apa pun
Garansi 3 tahun gratis

Specification

Product Model		RG-ES126G-P-L	RG-ES126G-LP-L	RG-ES109G-LP-L
Product Model		RG-ES126G-P-L	RG-ES126G-LP-L	RG-ES109G-LP-L
Ports	10/100/1000BASE-T	24	24	9
	Auto MDI/MDI-X	✓	✓	✓
	1000M SFP	2	2	n/a
Power over Ethernet	PoE	✓	✓	✓
	PoE/PoE+ enabled Ports	24	24	8
	PoE power budget	370W	180W	54W
Physical	Dimensions(WxDxH)	440x 292 x43.6	440x 205 x43.6	206.5x 108.5 x28
	Unit weight	4.2kg	4.2kg	1.1kg
	Surge protection	4KV	4KV	4KV
Power supply	Type	Internal		Power Adaptor
	Input frequency	50/60Hz
	Input voltage	AC 100~240V
Cooling		Fan	Fan	Fanless
Certifications	Safety	EN 60950-1	EN 62368- 1	EN 60950-1
	EMC	EN 300 386
	Emissions	EN 55032, EN 55035
	Immunity generic	EN 55024
	ESD	EN 61000-4-2
	Radiated	EN 61000-4-3
	EFT/Burst	EN 61000-4-4
	Surge	EN 61000-4-5
	Conducted	EN 61000-4-6
	Power frequency magnetic field	EN 61000-4-8
	Voltage dips and interruptions	EN 61000-4-11
	Harmonics	EN 61000-3-2
	Flicker	EN 61000-3-3
RoHS		✓
Operating temperature		0 ℃ ~ 40 ℃
Storage temperature		-40 ℃ ~ 70 ℃
Operating humidity		5%~90% RH
Storage humidity		5%~95% RH
Warranty		3-Year Warranty Free of Charge
Package contents		Ruijie RG-ES100 Series Switch Power Cord Mounting Kit Quick Start Guide		Ruijie RG-ES100 Series Switch Power Cord Power Adaptor Rubber Feet Quick Start Guide
Performance	Switching capacity	52Gbps	52Gbps	18Gbps
Performance	Forwarding rate	39Mpps	39Mpps	13.5Mpps
Easy management	Flow control (IEEE802.3X)	✓	✓	✓
	Port isolation	✓	n/a	✓
	PoE budget indicators	✓	✓	✓

Data Sheet

Product Datasheet

RG-ES100 series datasheet (836.6KB) 2019-06-21

Hardware Installation Guide

Ruijie RG-ES100 Series Switches Hardware Installation and Reference Guide V1.0 (1.6M) 2019-07-05
