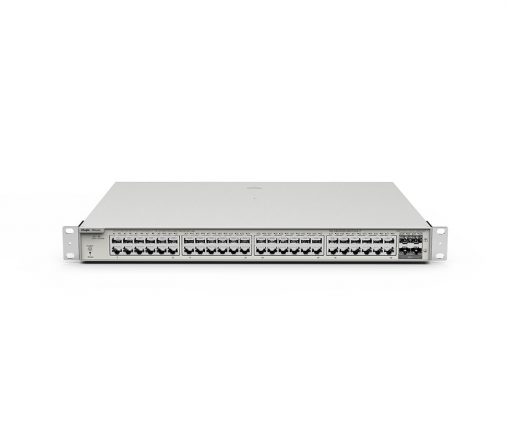

Reyee Switch RG-NBS3200-48GT4XS-P

Reyee Switch RG-NBS3200-48GT4XS-P for Soho Network Solutions. Ruijie RG-NBS3200 Series Switches are the next-generation high-performance, high-security and multi-service Layer 2 Ethernet switches with gigabit and 10-gigabit ports.

Request a Quote

Description

RG-NBS3200 Series L2 10G Uplink Cloud Managed Switches

Reyee Switch RG-NBS3200-48GT4XS-P for Soho Network Solutions. Ruijie RG-NBS3200 Series Switches are the next-generation high-performance, high-security and multi-service Layer 2 Ethernet switches with gigabit and 10-gigabit ports. Adopting an efficient hardware architecture design and equipped with Ruijie’s OpenWRT operating system, this switch series provides larger MAC address table size, faster hardware processing performance, and more convenient operating experience.

RG-NBS3200 series provides gigabit and 10-gigabit uplink ports. Every switch of this series offers 4 fixed 10G fiber ports with high-performance uplink capability.

RG-NBS3200 series switches provide comprehensive end-to-end QoS as well as flexible and rich security settings for small and medium-sized networks at an extremely high price-performance ratio to meet the needs of high-speed, secure and smart enterprise networks.

Specification

Model	RG-NBS3200-24GT4XS	RG-NBS3200-48GT4XS	RG-NBS3200-24SFP/8GT4XS	RG-NBS3200-24GT4XS-P RG-NBS3200-48GT4XS-P
Model	RG-NBS3200-24GT4XS	RG-NBS3200-48GT4XS	RG-NBS3200-24SFP/8GT4XS	RG-NBS3200-24GT4XS-P RG-NBS3200-48GT4XS-P
Fixed ports	24 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply	48 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports, fixed single AC power supply	24 SFP ports (SFP: 100/1000M ports), 8 combo 10/100/1000Base-T ports, 4 SFP+ 10GBase-X ports	24 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP+ 10GBase-X ports 48 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP+ 10GBase-X ports
Switching capacity	336Gbps	336Gbps	336Gbps	336Gbps
Packet forwarding rate	96Mpps	132Mpps	96Mpp	RG-NBS3200-24GT4XS-P 96Mpps RG-NBS3200-48GT4XS-P 132Mpps
MAC address	Support static MAC address, MAC address filtering
MAC address table size	16K
Number of VLANs	4094
Link aggregation	Support
Port mirroring	Many-to-one mirroring
Spanning tree	STP, RSTP
LLDP	Support
IP routing	N/A
ACL	IP standard ACL MAC extended ACL IP extended ACL Port ACL for Layer 2 ports (physical port / AP)
QoS	Port-based speed limit (ingress/egress)
Security	Port protection Hardware CPP
Management	Web management, Ruijie Cloud or Ruijie Cloud app management
DHCP	DHCP snooping
EEE	Support
Physical specifications
Dimensions	440×207.5×43.6mm	440×267.5×43.6mm		440×357.6×43.6mm
PoE	N/A			24/48 Base-T ports (support PoE and PoE+) Maximum PoE / PoE+ output power per switch: 370W Maximum output power per port: 30W
Temperature	Operating temperature: 0 ℃ ~ 50 ℃ Storage temperature: -40 ℃ ~ 70 ℃
Humidity	Operating humidity: 10% ~ 90% RH Storage humidity: 5% ~ 90% RH

Brand

Reyee

Reyee is the SMB sub-brand launched by Ruijie in 2014, including 4 major product lines: switch, router, wireless, and home products. The purpose of the brand is to simplify the network and make it easier for small system integrators/ installers to do business. The Ruijie Cloud for Reyee products provides full lifecycle services to the contractors. For the pre-sales process, it can be used for solution design, viewing detailed success cases and product specifications. During the deployment process, the self-organizing network technology saves a lot of deployment time, and the automatic configuration and deployment also solve the problem of insufficient technical capabilities of the installers.For the post-sales process, it offers remote operation and maintenance, smart alarm and one-click network monitoring.
