RG-NBS3100 Series L2 Gigabit Cloud Managed Switches
Reyee Switch RG-NBS3100-8GT2SFP Soho Network Solutions. Ruijie Real-easy RG-NBS3100 Managed Switch Series consists 4 models of switches designed for SME customers to meet their different network needs including basic VLAN division and advanced security features such as ACL. The models with suffix -P support PoE, which can meet the PoE requirements of wireless APs, digital cameras and other devices in various scenarios.
Flexible VLAN Division
In the office network, in order to isolate network access between different departments to avoid PCs infected by virus affecting the entire network, it is often necessary to divide the internal network into VLANs according to departments, floors, etc. to isolate the broadcast domain and improve the stability of the network. Ruijie Real-easy Series managed switches provide a convenient and flexible way to divide VLANs, allowing you to assign the ports to different VLANs as needed. Users in different VLANs do not affect each other, creating a more stable network for the users.
Surge Protection Ensuring Product Stability
The 6KV surge protection of the port reduces the probability of being damaged by surges and improves the customer’s network stability.
MANET for Switches Allowing One-step Project Management
RG-NBS3100 can obtain the IP address automatically from the gateway and connect to the external network without configuration. It also supports MANET for switches. Users can scan the QR code of any switch in the network using the Ruijie Cloud app to automatically add all switches in the network to the project.
Ruijie Cloud App/ Ruijie Cloud Platform Remote Management
RG-NBS3100 not only supports web interface management, but also supports Ruijie Cloud app and Ruijie Cloud platform remote management. Users can view the network status, modify the configuration, and troubleshoot at home.
24 10/100/1000Base-T ports, 4 SFP 1000Base-X ports
8 10/100/1000Base-T ports, 2 SFP 1000Base-X ports

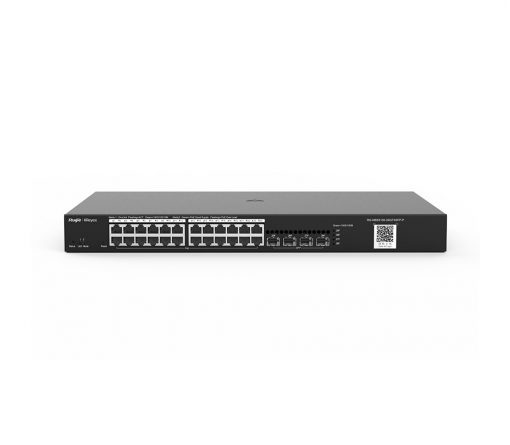

24 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP 1000Base-X ports, 370W PoE power

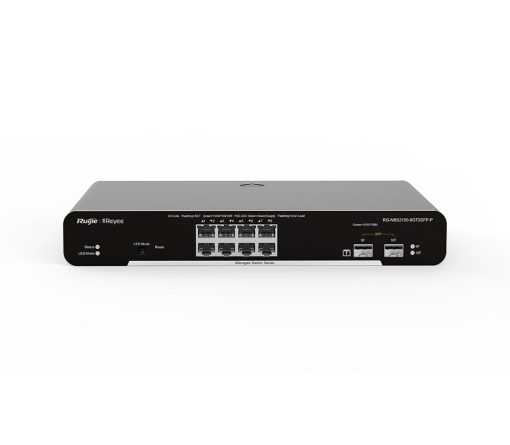

8 10/100/1000Base-T ports (support PoE and PoE+), 2 SFP 1000Base-X ports, 125W PoE power
|Packet forwarding rate||42Mpps||15Mpps||42Mpps||15Mpps|
|MAC address||Support static MAC address, MAC address filtering|
|MAC address table size||
Number of VLANs
|Port mirroring||Many-to-one mirroring|
|Spanning tree||STP, RSTP|
|ACL||IP standard ACL
MAC extended ACL
IP extended ACL
Port ACL for Layer 2 ports (physical port / AP)
|QoS||Port-based speed limit (ingress/egress)|
|Management||Web management, Ruijie Cloud or Ruijie Cloud app management|
24 Base-T ports (support PoE and PoE+)
Maximum PoE / PoE+ output power per switch: 370W
Maximum output power per port: 30W
8 Base-T ports (support PoE and PoE+)
Maximum PoE / PoE+ output power per switch: 125W
Maximum output power per port: 30W
|Temperature||Operating temperature: 0 ℃ ~ 50 ℃
Storage temperature: -40 ℃ ~ 70 ℃
|Humidity||Operating humidity: 10% ~ 90% RH
Storage humidity: 5% ~ 90% RH
|RG-NBS3100-24GT4SFP||24 10/100/1000Base-T ports, 4 SFP 1000Base-X ports, support unified management via Ruijie Cloud platform|
|8 10/100/1000Base-T ports, 2 SFP 1000Base-X ports, support unified management via Ruijie Cloud platform|
|24 10/100/1000Base-T ports (support PoE and PoE+), 4 SFP 1000Base-X ports, 370W PoE power, support unified management via Ruijie Cloud platform|
|RG-NBS3100-8GT2SFP-P||8 10/100/1000Base-T ports (support PoE and PoE+), 2 SFP 1000Base-X ports, 125W PoE power, support unified management via Ruijie Cloud platform|
