Reyee Switch RG-ES205GC-P

Reyee Switch RG-ES205GC-P Soho Network Solutions. With the growing video surveillance industry in China, there are various surveillance equipment manufacturers and brands offering products of different qualities, which has increased the probability of surveillance network malfunction.

Request a Quote

Description

RG-ES200 Series Cloud Managed POE Switches for IP Surveillance

Reyee Switch RG-ES205GC-P Soho Network Solutions. With the growing video surveillance industry in China, there are various surveillance equipment manufacturers and brands offering products of different qualities, which has increased the probability of surveillance network malfunction. At present, the technical threshold of most of the engineering companies engaged in surveillance projects is relatively low.

When encountering surveillance network failure, they are unable to locate the problem quickly, causing high workload to the operation and maintenance staff. Therefore, in order to solve the pain points of the current video surveillance industry, Ruijie Real-easy Series has launched a series of smart surveillance switches.

Ruijie Reyee smart surveillance switches offer a variety of port options to meet the needs of video surveillance networks of different scales. Ruijie Reyee smart surveillance switches support full-power PoE output to ensure that all cameras can be powered simultaneously when connected to the switch at maximum capacity.

In addition, Ruijie Real-easy Series smart surveillance switches provide simple and easy-to-use management features while offering plug and play with default factory configuration, which can quickly locate the surveillance network faults, initiate PoE port restart, perform VLAN configuration, etc. Ruijie Cloud app and Ruijie Cloud platform remote management is also supported, making the operation and maintenance of the surveillance network easier and more convenient, while reducing operation and maintenance costs.

Specification

Model Specifications	RG-ES205GC-P	RG-ES209GC-P	RG-ES218GC-P	RG-ES226GC-P
Model Specifications	RG-ES205GC-P	RG-ES209GC-P	RG-ES218GC-P	RG-ES226GC-P
Hardware specifications

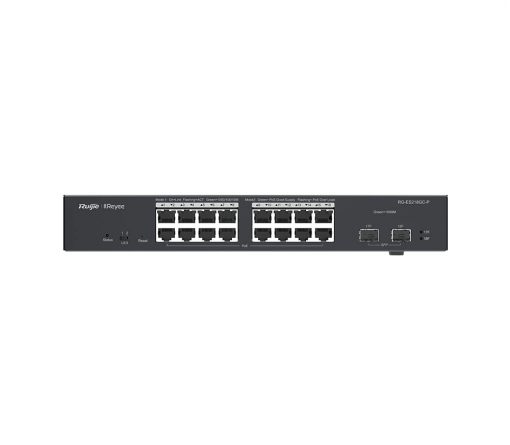

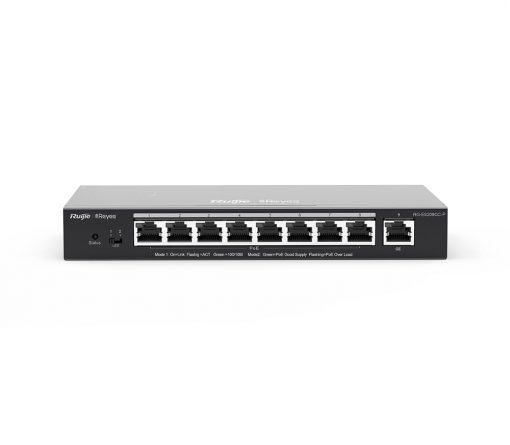

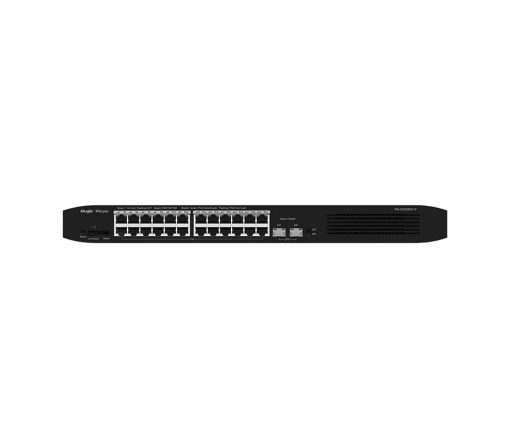

Ports	4 10/100/1000 Base-T ports (PoE/PoE+), 1 10/100/1000 Base-T port	8 10/100/1000 Base-T ports (PoE/PoE+), 1 10/100/1000 Base-T port	16 10/100/1000 Base-T ports (PoE/PoE+), 2 SFP Base-X ports	24 10/100/1000 Base-T ports (PoE/PoE+), 2 SFP Base-X ports
Maximum output power per PoE port	30W	30W	30W	30W
Maximum PoE output power per switch	54W	120W	240W	370W
Switching capacity	10Gbps	18Gbps	36Gbps	52Gbps
Packet forwarding rate	7.44Mpps	13.392Mpps	26.784Mpps	38.688Mpps
Surge protection	Common mode: 4KV	Common mode: 4KV	Common mode: 4KV	Common mode: 4KV
Electrostatic discharge	Air discharge: 6KV Contact discharge: 4KV	Air discharge: 6KV Contact discharge: 4KV	Air discharge: 6KV Contact discharge: 4KV	Air discharge: 6KV Contact discharge: 4KV
Power consumption	≤60W	≤130W	≤280W	≤400W
Power supply	External power adapter	External power adapter	Built-in power supply	Built-in power supply
Dimensions (W x D x H)	1487826mm	20210828mm	30023043.6mm	440x289x43.6mm
MTBF	>200K	>200K	>200K	>200K
Operating environment
Operating temperature	0 to 40°C	0 to 40°C	0 to 40°C	0 to 40°C
Storage temperature	-40~70ºC	-40~70ºC	-40~70ºC	-40~70ºC
Operating humidity	10% to 90% RH	10% to 90% RH	10% to 90% RH	10% to 90% RH
Storage humidity	5% to 95% RH	5% to 95% RH	5% to 95% RH	5% to 95% RH
Software features
MAC capacity	2K	4K	8K	8K
Static MAC address	16	16	16	16
VLAN	Support 802.1Q VLAN
Port management	Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off
Security	Support broadcast storm suppression, port speed limit, port isolation
L2 features	Support port mirroring, loop protection, cable detection
Management	Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app

Brand

Reyee

Reyee is the SMB sub-brand launched by Ruijie in 2014, including 4 major product lines: switch, router, wireless, and home products. The purpose of the brand is to simplify the network and make it easier for small system integrators/ installers to do business. The Ruijie Cloud for Reyee products provides full lifecycle services to the contractors. For the pre-sales process, it can be used for solution design, viewing detailed success cases and product specifications. During the deployment process, the self-organizing network technology saves a lot of deployment time, and the automatic configuration and deployment also solve the problem of insufficient technical capabilities of the installers.For the post-sales process, it offers remote operation and maintenance, smart alarm and one-click network monitoring.
