Dual-spectrum imaging
USS-TIC500 Thermal imaging principle, no perception, no contact, grab human face and measure temperature. Thermal：384*288，Visible 5MP
Detection distance
±0.3°（with black body) 2.5-3.5 meter

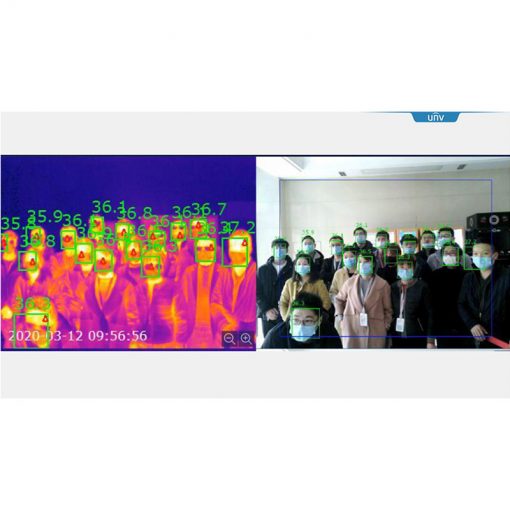

Single-IP and dual-channel
Live views of visible light imaging and thermal imaging at the same time with one IP address, faster and more convenient
Coaxial amplification
Visible light lens linked to focus to the alarm area when the thermal lens generates an alarm
Advantages
High-end ，with black body，High accuracy, High quality
Features
Thermal imaging function:
- Resolution 384 × 288, high sensitivity detector
- Highest temperature cross cursor positioning
- Supports point, line, rectangle, and irregular area temperature measurement modes
- Support human body temperature abnormal alarm function
- Support automatic capture of moving face targets
- Support wearing a mask to identify the face area to avoid false alarms from non-face high temperature objects
Visible light phase function:
- 500W high-definition visible light detector
- Supports automatic exposure control and automatic white balance
- Supports face temperature measurement mode, intelligently analyzes face targets and measures body temperature, supports multiple alarm linkages
- Dual light temperature measurement linkage, can draw regular and superimposed temperature measurement information on visible light image
Specifications
| Model | TIC500 |
| Working mode | Thermal imaging principle, no perception, no contact, grab human face and measure temperature |
| Key spec | Thermal：384*288，Visible 5MP |
| Measurement accuracy | ± 0.3 ° C (with black body) ，2.5 – 3.5 meter |
| PC | Without PC (CPU I5 or more / memory 8G / nVIDIA independent graphics card, video memory 2G or more. Operating system win10, 64-bit.If you have a laptop, you must have a network port.） |
| Language | English datasheet，English version |
| Testing Status | Accuracy best，Quality best |
| Advantage | High-end，with black body，high accuracy，high quality |
| Application | Enough budget，visitors flow rate. example：government、air port、station、mall、museum。 |
