Ruijie Switch XS-S1960 Series By Ruijie is the newest access switch series for the SME market. The XS-S1960-H Series switches are fixed configuration, Gigabit Ethernet switches that provide enterprise-class switching of access for branch offices

Request a Quote

DESCRIPTION

XS-S1960 Series Switches

Ruijie Switch XS-S1960 Series By Ruijie is the newest access switch series for the SME market. The XS-S1960-H Series switches are fixed configuration, Gigabit Ethernet switches that provide enterprise-class access switching for branch offices, managed switches offer advanced basic Layer 2 and Layer 3 features as well as High power PoE Technology (IEEE 802.3bt). The switch adopts a new and manageable web interface on the Ruijie Cloud platform, providing easy device onboarding, configuration, monitoring and troubleshooting.

Specification

Product Model

XS-S1960-10GT2SFP-P-H

XS-S1960-24GT4SFP-H

XS-S1960-24GT4SFP-UP-H

XS-S1960-48GT4SFP-H

Ports

10/100/1000BASE-T

10

24

24

48

1000M SFP

2

4

4

4

Power over Ethernet

PoE

n/a

n/a

PoE/PoE+
Enabled Ports

8

/

24

n/a

H-PoE Enabled Ports

n/a

n/a

4

n/a

IEEE802.3bt
(H-PoE)

n/a

n/a

n/a

IEEE802.3af
(PoE)

n/a

n/a

IEEE802.3at
(PoE+)

n/a

n/a

PoE Power Budget

125W

n/a

370W

n/a

Physical

Packet Buffer

12Mbit

12Mbit

12Mbit

12Mbit

CPU Memory

512MB

512MB

512MB

512MB

Flash

256MB

256MB

256MB

256MB

Dimensions(WxDxH)

340x260x43.6mm

440x260x43.6mm

440x260x43.6mm

440x260x43.6mm

Unit Weight

2.5kg

3.5kg

5.5kg

4kg

Power Supply

Type

Internal

Internal

Internal

Internal

Frequency

50/60Hz

AC Voltage

100~240V

AC Current

2A

0.6A

6.8A

1.5A

Rated HVDC voltage

240V DC

Maximum HVDC voltage

192~290V DC

Maximum Power Rating

165W

24W

460W

40W

Cooling

Fanless

Fanless

Fan

Fan

Certifications

Safety

EN 60950-1

EMC

EN 300 386

Emissions

EN 55032

Immunity Generic

EN 55024

ESD

EN 61000-4-2

Radiated

EN 61000-4-3

EFT/Burst

EN 61000-4-4

Surge

EN 61000-4-5

Conducted

EN 61000-4-6

Power frequency magnetic field

EN 61000-4-8

Voltage dips and interruptions

EN 61000-4-11

Harmonics

EN 61000-3-2

Flicker

EN 61000-3-3

RoHS

EEE

Operating Temperature

0 ℃ ~ 45 ℃

Storage Temperature

-40 ℃ ~ 70 ℃

Operating Humidity

10%~90% RH

Storage Humidity

5%~95% RH

Operating Altitude

-50m ~ 5000m

MTBF(hours)

590278

602365

361712

524960

Warranty

3-Year Warranty Free of Charge

Package Contents

Ruijie XS-S1960-H Series Switch
Power Cord
Mounting Kit
Rubber Feet
Console Cable
RJ45-RJ45 UTP Cable
Grounding Cable
Quick Start Guide

Performance

Switching Capacity

24Gbps

56Gbps

56Gbps

104Gbps

Forwarding Rate

18Mpps

42Mpps

42Mpps

78Mpps

ARP Table Size

500

1K

1K

1K

MAC Table Size

16K

16K

16K

16K

L2 Switching

STP

RSTP

MSTP

✓(64 instances)

Port Grouping

✓(LACP)

VLAN

✓(IEEE802.1Q/MAC VLAN/Private VLAN/Protocol VLAN/Voice VLAN)

GVRP

IGMP Snooping

✓((v1/v2/v3)/SGVL/IVGL/IGMP filter/IGMP fast leave)

Jumbo Frame

9KB

QinQ

G.8032/ERPS

L3

IPv4 Routing

Static/RIP/OSPFv1/v2/VRRP

IPv6 Routing

Static/RIPng/OSPFv3/ND(Neighbor Discovery)/VRRPv3/VRRP+

Ping

✓ (IPv4 and IPv6)

Traceroute

✓ (IPv4 and IPv6)

DHCP

✓ (Server/Client/Relay)

ARP Features

✓(ARP Proxy/Trusted ARP/ARP-Based IP Guard/Gratuitous ARP/ARP-Check/)

Reliability

VSU

n/a

✓ (up to 4 members)

GR

REUP

RLDP

DLDP

Security

CPP

NFPP

SSH

SSL

IEEE802.1X

Port Security

Radius

TACACS+

DAI

IP-MAC Binding

ACL

✓ (IPv4 and IPv6, Standard IP ACL, Extended IP ACL, MAC-extended ACL, Time-based ACL, Expert ACL, ACL80, IPv6 ACL, SVI router ACL, ACL logging, ACL counter, ACL remark, ACL redirection, Security channel, Protected port)

IP Source Guard

✓ (IPv4 and IPv6)

DHCP Snooping

✓ (IPv4 and IPv6)

QoS

Stream classification

✓ (Classification based on IEEE802.1p/DSCP/TOS)

Shaping

✓ (Rate-limit on ingress/egress traffic on interface)

Congestion avoidance

✓ (RED, WRED, Tail drop)

Congestion management

✓(SP, WRR, DRR, WFQ, SP+WFQ, SP+WRR, SP+DRR, 8 queue priorities per port)

Management

Web User Interface

HTTP/HTTPS

Ruijie Cloud Management

RG-SNC Management

Command Line Interface

Telnet/Console

SNMP

Smart+ for CCTV

✓(Auto Smart Deployment/Remote Reboot Helper)

SYSLOG

NTP

DNS

SPAN

RSPAN

ERSPAN

Public MIBs

Private MIBs

RMON

✓(1/2/3/9)

sFlow

Firmware Upgrade

Port Mirroring

Features
Easy Tissue Maintenance
The XS-S1960-H series supports abundant features such as SNMP V1 / V2 / V3, RMON, Syslog, and USB configuration log and backup for routine diagnosis and maintenance. Administrators can use a variety of methods for easier management and such as CLI, web management, CWMP (TR069), etc. With a friendly browser UI, administrators can do most of their work, such as performance monitoring, configuration.
Easy Network Maintenance
Easy Network Maintenance

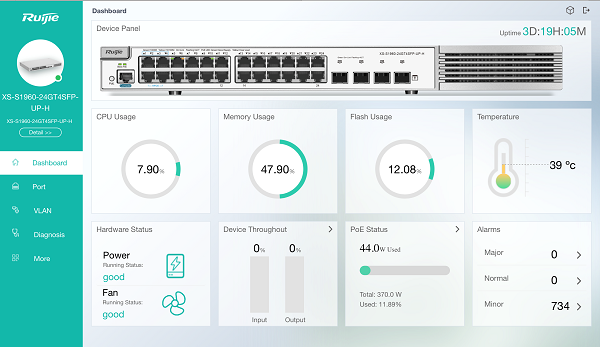

The XS-S1960-H series fully supports Ruijie Cloud which is a cloud-based service that helps users manage and control devices and networks. It can monitor network and configure or remote control devices.

Unique + Smart Features for CCTV Using the Smart + feature for CCTV, the configuration for IP cameras can be done automatically, saving a lot of energy and time on location.
• Auto Intelligent Implementation: IP cameras and NVR will be identified by the switch, and configurations such as MTU, flow control and port isolation will be applied automatically.
• Remote Reboot Helper: With the help of Ruijie Cloud or Web-UI switch, the PoE IP camera can be rebooted without unplugging the cable on the site. XS-S1960-H Series
Comprehensive Security Policy
effectively prevents and controls the spread of viruses and hacker attacks with various inherent mechanisms such as anti-Dos attacks, hacker IP scanning, illegal ARP packet checking, and various hardware ACL policies.
• Industry-leading CPU protection mechanism: CPU Protect Policy (CPP) provides a policy to protect the CPU from a single switch. In a networked environment, various attack packets spread, which can lead to high CPU usage of switches, affect running protocols and even difficulty in switch management. For this purpose, the switch CPU must be protected, that is, traffic control and priority-based processing must be carried out for various incoming packets to ensure the processing capability of the switch CPU.
o CPP can effectively prevent malicious attacks on the network and provide a clean environment for legitimate protocol packets.
o CPP is enabled by default. This provides protection during all switch operation.

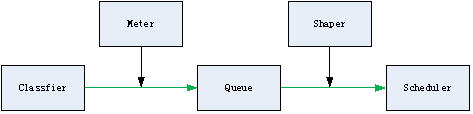

CPP protects the CPU by using the standard QoS DiffServ model
CPP protects the CPU by using the standard QoS DiffServ model

• IP / MAC binding: Implement flexible port or system binding to a user’s IP address and MAC address, strictly restricting user access across ports or system-wide.
• DHCP snooping: Allow DHCP responses from trusted ports only; based on DHCP listening and by dynamically monitoring ARP and checking the user’s IP address, it instantly removes illegal packets that do not match binding entries to effectively prevent ARP fraud and source IP address fraud.
• Secure Shell and SNMPv3: The secure shell cryptographic network protocols (SSH) and Simple Network Management Protocol v3 (SNMPv3) ensure the security of management information. Provides services such as multi-element binding, port security, time-based ACLs and bandwidth speed limiting to block unauthorized users.
• NFPP: The Network Foundation Protection Policy (NFPP) provides protection for switches. Malicious attacks are always found in networked environments. These attacks carry a heavy load on the switch, resulting in high CPU usage and operational problems. Such attacks are as follows:
o Denial of Service (DoS) attacks can consume large amounts of memory, entries or other resources of the switch, which will result in a system outage.
o Massive attack traffic is directed to the CPU, occupying the entire CPU bandwidth. In this case, the normal protocol and management traffic cannot be processed by the CPU, causing protocol packing or management failure. Forwards in the data field will also be affected and the whole network will be abnormal.
o A large number of attack packages directed at the CPU consume enormous CPU resources, make the CPU heavily loaded and thus affect device management and performance.
NFPP can effectively protect the system from these attacks. In the face of attacks, NFPP maintains a well-run of various system services with low CPU load, thus ensuring the stability of the entire network.

Virtual Switch Unit (VSU)
Virtual Switch Unit technology, or VSU for short, allows the interconnection of several physical devices by virtualizing them into one logical device. Logical devices use a single IP address, Telnet process, command line interface (CLI), and allow automatic version checking and configuration. From a user perspective, the benefits are doubled work efficiency and an improved user experience from multiple devices operating simultaneously. And they only need to manage one device. VSU technology also offers the following benefits:
• Easy management: Administrators can centrally manage all devices at the same time. No more need to configure and manage individual switches.
• Simplified typology: VSU is considered one of the switches in the network. With aggregation link connections and peripheral networking devices, the MSTP protocol is unnecessary because there is no Layer 2 loop network. All protocols operate as a single switch.
• Millisecond failure: VSU and peripheral devices are connected via an aggregation link. In case of any device or link failure, failover to another member’s link only takes 50 to 200 ms.
• Excellent scalability: Hot swappable network, any device exiting or joining virtual network does not cause any impact on other devices.

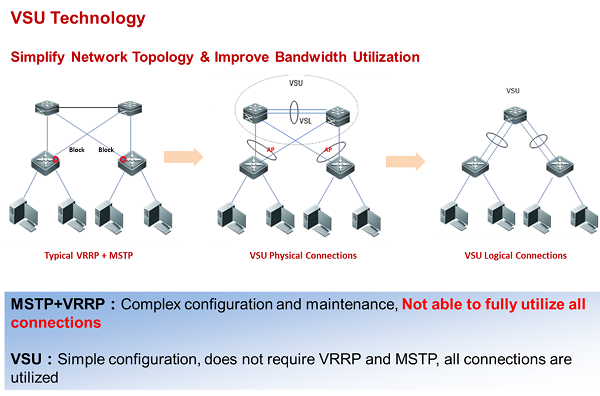

Simplified Network Topology Enabled by VSU
Simplified Network Topology Enabled by VSU

High Reliability
The XS-S1960-H series supports the spanning tree protocols 802.1d, 802.1w, and 802.1s to ensure fast convergence, increase fault tolerance capabilities, ensure stable network running and link load balancing, and provide redundant links.
• Rapid Link Detection Protocol (RLDP): Detects link connectivity and whether the optical fiber link is normal from both ends, and supports port based loop detection functions to prevent network errors caused by loops generated by the connection of the device as a link to the port.
• Ethernet Ring Protection Switching (ERPS) (G.8032): Implement loop blocking and link restoration on the master device. Other devices immediately report the link status to the master device. Without going through other standby devices, the failover time from loop interruptions and recovery is faster than STP. ERSP link failure rates can be resolved in milliseconds under ideal conditions.
• Rapid Ethernet Uplink Protection Protocol (REUP): When the Spanning Tree Protocol (STP) is disabled, the Rapid Ethernet Uplink Protection Protocol (REUP) can provide basic link redundancy via a fast uplink protection function and provide faster second-rate error recovery than STP.
• Nonstop PoE (ZPoE): As more IoT (Internet of Things) devices rely on PoE (Power over Ethernet) power supplies, the ZPoE (Nonstop PoE) feature is introduced to the Ruijie PoE switch. With such a feature, the switch can provide a non-stop PoE power supply to other IP cameras, IP phones and PD (Powered Devices), even when a reboot occurs. So operators can feel free to do maintenance work like firmware upgrade at any time.

XCor-Design for Durability
In corrosive gases, high humidity environments, electronic products will accelerate corrosion, reliability and service life will be shortened, however, the application environment of the access switch is different, there may be a lack of temperature and humidity regulation and close proximity to sources of pollution or the sea. Through design for durability, such as conformal coating, the XS-S1960-H Switch Series can operate stably in a wide variety of deployment environments.
The Anti-Corrosion (XCor) feature is now applied to the XS-S1960-24GT4SFP-UP-H and XS-S1960-48GT4SFP-H. PCBs have a conformal coating with excellent insulation and protection against moisture, dust, corrosion, mold and salt spray to improve environmental adaptability.

New Option for High Power IP Devices
There used to be only two options available for remote power supply scenarios, namely standard PoE and PoE +. Both the XS-S1960-10GT2SFP-H and XS-S1960-24GT4SFP-UP-H can support both PoE and PoE +. But the PoE standard will fail to meet the demand if more than 30W of power is required. Instead, a power line or even high power must be installed. This implementation puts a huge burden on the total investment cost, completion schedule, after-sales maintenance, and installation safety. The XS-S1960-24GT4SFP-UP-H pushes the boundaries with the leading edge IEEE802.3bt standard, delivering 60W per port power output. This ensures the best safety, efficiency, stability and energy saving experience.

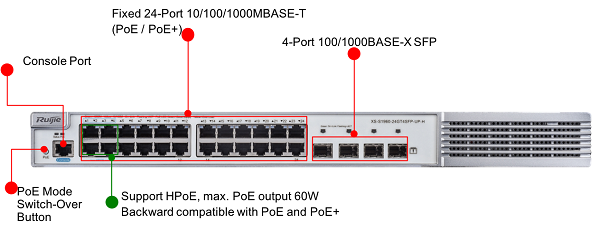

PoE/PoE+ Support
PoE/PoE+ Support
Applicationi

This network topology allows the XS-S1960-H series to work with converged switches (eg RG-S5750-H) across the building and core switches (eg RG-S86E Series) in core areas to provide gigabit service for desktops.

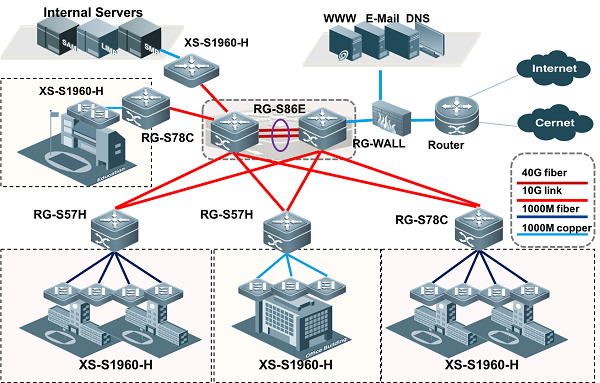

Network Topology Using XS-S1960-H Switch Series
Network Topology Using XS-S1960-H Switch Series
Order Information
Model Description
XS-S1960-24GT4SFP-H Layer 2+ Managed Switch, 24 10/100/1000BASE-T ports, 4 1G SFP ports (non-combo); Managed by Ruijie Cloud, Web-UI and CLI. Bundled with Ruijie Cloud Service lifetime license
XS-S1960-48GT4SFP-H Layer 2+ Managed Switch, 48 10/100/1000BASE-T ports, 4 1G SFP ports (non-combo); Managed by Ruijie Cloud, Web-UI and CLI. Bundled with Ruijie Cloud Service lifetime license
XS-S1960-24GT4SFP-UP-H Layer 2+ Managed Switch, 24 ports 10/100/1000BASE-T (PoE/PoE+), 4 Gigabit SFP ports (non-combo) uplink, Port 1-4 for HPoE 370 Watts; Managed by Ruijie Cloud, Web-UI and CLI. Bundled with Ruijie Cloud Service lifetime license
XS-S1960-10GT2SFP-P-H Layer 2+ Managed Switch, 10 ports 10/100/1000BASE-T, 2 ports 100/1000BASE-X SFP (non-combo), Port 1-8 support PoE/PoE+ 125 Watts; Managed by Ruijie Cloud, Web-UI and CLI. Bundled with Ruijie Cloud Service lifetime license
Mini-GBIC-GT 1000BASE-GT mini GBIC Transceiver
MINI-GBIC-SX-MM850 1000BASE-SX mini GBIC Transceiver (850nm)
MINI-GBIC-LX-SM1310 1000BASE-LX mini GBIC Transceiver (1310nm)
MINI-GBIC-LH40-SM1310 1000BASE-LH mini GBIC Transceiver (1310nm, 40km)
MINI-GBIC-ZX50-SM1550 1000BASE-ZX mini GBIC Transceiver (1550nm, 50km)
MINI-GBIC-ZX80-SM1550 1000BASE-ZX mini GBIC Transceiver (1550nm, 80km)
MINI-GBIC-ZX100-SM1550 1000BASE-ZX mini GBIC Transceiver (1550nm, 100km)
GE-SFP-LX20-SM1310-BIDI 1000BASE-LX, SFP Transceiver, BIDI-TX1310/RX1550,20km,LC
GE-SFP-LX20-SM1550-BIDI 1000BASE-LX, SFP Transceiver, BIDI-TX1550/RX1310,20km,LC
GE-SFP-LH40-SM1310-BIDI 1000BASE-LH, SFP Transceiver, BIDI-TX1310/RX1550,40km,LC
GE-SFP-LH40-SM1550-BIDI 1000BASE-LH, SFP Transceiver, BIDI-TX1550/RX1310,40km,LC
