DESCRIPTION

RG-S2910XS-E Series Switches

Ruijie Switch RG-2910 Series By Ruijie is a next-generation Gigabit switch set designed for superior safety, the switches provide Non-blocking / wire-speed , high performance and outstanding energy efficiency. This series provides full Gigabit access and unmatched scalability up to 10G performance. With an all-new hardware architecture and the latest RGOS11.X modular operating system from Ruijie, the RG-S2910XS-E / P switch offers more table capacity, faster hardware processing performance and a better operating experience than ever before. In addition, PoE models in various specifications support all downlink ports running on PoE + and meet the high bandwidth demands for 10G uplinks. The RG-S2910XS-E / P switch ensures high density user access and leading aggregation performance with ease.

Specification

Model

RG-S2910-24GT4XS-E

RG-S2910-48GT4XS-E

RG-S2910-10GT2SFP-P-E

RG-S2910C-24GT2XS-P-E

RG-S2910C-24GT2XS-HP-E

RG-S2910C-48GT2XS-HP-E

Ports

24 10/100/1000BASE-T ports
4 1G/10GBASE-X SFP+ ports (non-combo)

48 10/100/1000BASE-T ports
4 1G/10GBASE-X SFP+ ports (non-combo)

10 10/100/1000BASE-T ports

2 100/1000BASE-X SFP ports (non-combo)

24 10/100/1000BASE-T ports (PoE/PoE+)
2 100/1000BASE-X SFP ports (combo)
2 1G/10GBASE-X SFP+ ports (non-combo)

24 10/100/1000BASE-T ports (PoE/PoE+)
2 100/1000BASE-X SFP ports (combo)
2 1G/10GBASE-X SFP+ ports (non-combo)

48 10/100/1000BASE-T ports (PoE/PoE+)
2 100/1000BASE-X SFP ports (combo)
2 1G/10GBASE-X SFP+ ports (non-combo)

Expansion Slots

N/A

N/A

N/A

1

2

2

Modular Power Slots

N/A

N/A

N/A

N/A

2

2

Fan Slots

Fixed

Fixed

Fanless

Fixed

Fixed

Fixed

Expansion Modules

N/A

N/A

N/A

M2910-01XS
M2910-01XT
M2910-02XS
M2910-04XS
M2910-02XT

M2910-01XS
M2910-01XT
M2910-04XS

M2910-01XS
M2910-01XT
M2910-04XS

Management Ports

1 console port

1 console port

1 console port

1 console port

1 console port
1 USB 2.0 port

1 console port
1 USB 2.0 port

Switching Capacity

264Gbps

264Gbps

256Gbps

264Gbps

264Gbps

264Gbps

Packet Forwarding Rate

96Mpps

132Mpps

18Mpps

96Mpps

96Mpps

132Mpps

Max. Number of 10GE Ports

4

4

N/A

4

4

4

PoE

N/A

N/A

IEEE802.3af and 802.3at power supply standards; Automatic/energy-saving (default) power supply mode; Hot startup and uninterrupted power supply; Port priority; PoE devices support stacking

IEEE802.3af and 802.3at power supply standards; Automatic/energy-saving (default) power supply mode; Hot startup and uninterrupted power supply; Port priority; PoE devices support stacking

IEEE802.3af and 802.3at power supply standards; Automatic/energy-saving (default) power supply mode; Hot startup and uninterrupted power supply; Port priority; PoE devices support stacking

IEEE802.3af and 802.3at power supply standards; Automatic/energy-saving (default) power supply mode; Hot startup and uninterrupted power supply; Port priority; PoE devices support stacking

Port Buffer

1.5MB

RAM

512MB

ARP Table

1,000

1,000

500

1,000

1,000

1,000

MAC Address

16K

Routing Table Size
(IPv4/IPv6)

500 (IPv4/IPv6)

500 (IPv4/IPv6)

64 (IPv4/IPv6)

500 (IPv4/IPv6)

500 (IPv4/IPv6)

500 (IPv4/IPv6)

ACL Entries

In: 1,500
Out: 500

In: 1,500
Out: 500

In: 750

Out: N/A

In: 1,500
Out: 500

In: 1,500
Out: 500

In: 1,500
Out: 500

VLAN

4K 802.1q VLANs, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, QinQ, IP subnet-based VLAN, GVRP, Guest VLAN

QinQ

Basic QinQ, Flexible QinQ, 1:1 VLAN switching, N:1 VLAN switching, 1:N VLAN switching

Link Aggregation

AP, LACP (maximum 8 ports can be aggregated), Cross devices AP, Flow balance

Port Mirroring

Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN

# RG-S2910-10GT2SFP-P-E supports N:1/1:N port mirroring, Flow-based mirroring

Spanning Tree Protocols

IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC protection, ROOT guard,Spanning Tree Root Guard(STRG)

DHCP

DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay,DHCP Snooping Option 82

Multiple Spanning Tree Protocol (MSTP) Instances

64

Maximum Aggregation Port (AP)

128

SDN

OpenFlow 1.0 & 1.3

VSU (Virtual Switch Unit)

Support (up to 9 stack members,to ensure the effectiveness of the use, 4 members are recommended* ), Local and distant stacking, Cross-chassis link aggregation in the stack, Stacking via 10G Ethernet ports

# All models support the features above except RG-S2910-10GT2SFP-P-E

SCN (Simplicity Campus Network)

Support establishing large L2 network with core devices and achieve resources pooling via VSU and VSD. Only management on core devices is required and hence simplifies horizontal and vertical network management and maintenance.

# All models support the features above except RG-S2910-10GT2SFP-P-E

Zero Configuration

CWMP(TR069)

L2 Features

MAC, EEE, ARP, VLAN, Basic QinQ, Felix QinQ, Link aggregation, Mirroring, STP, RSTP, MSTP, Broadcast/Multicast/Unknown unicast storm control, IGMP v1/v2/v3 snooping, IPv6 MLD Snooping v1/v2,IGMP SGVL/IVGL, IGMP querier, IGMP filter, IGMP fast leave, DHCP, Jumbo frame, RLDP, LLDP, LLDP-MED, REUP, G.8032 ERPS, Layer 2 protocol tunnel

Layer 2 Protocols

IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.1p, IEEE802.1x, IEEE802.3ab, IEEE802.1Q (GVRP), IEEE802.1D, IEEE802.1w, IEEE802.1s

IPv4 Features

Ping, Traceroute

IPv6 Features

ICMPv6, IPv6 Ping, IPv6 Tracert, Manually configure local address, Automatically create local address

IPv4 Routing Protocols

Static Routing, RIP, OSPF v1/v2

Basic IPv6 Protocols

IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping and IPv6 Tracert

IPv6 Routing Protocols

Static routing, RIPng, OSPF v3

Multicast

IGMP v1/v2/v3, IGMP v1/v2/v3 snooping, IGMP proxy, IGMP filter, IGMP fast leave, Multicast routing protocols (PIM-DM, PIM-SM, PIM-SSM), MLD snooping, MLD, PIM-SMv6, Multicast static routing

G.8032

Support

ACL

Standard/Extended/Expert ACL, Extended MAC ACL, ACL 80, IPv6 ACL, ACL logging, ACL counter, ACL remark, Global ACL, ACL redirect, Time-based ACL,Router ACL, VLAN ACL, Port-Based ACL

QoS

802.1p/DSCP/TOS traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR; Input / output port-based speed limit; Port-based traffic recognition; Each port supports 8 queue priorities; flow-based rate limiting with the minimum granularity of 8Kbps,Dynamic QoS

Reliability

VSU (virtualization technology for virtualizing multiple devices into 1); RIP GR; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol)

VSU (virtualization technology for virtualizing multiple devices into 1); RIP GR; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol)

RIP GR; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol)

VSU (virtualization technology for virtualizing multiple devices into 1); RIP GR; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol)

VSU (virtualization technology for virtualizing multiple devices into 1); RIP GR; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol); 1+1 power redundancy; Hot-swappable power module

VSU (virtualization technology for virtualizing multiple devices into 1); RIP GR; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol); 1+1 power redundancy; Hot-swappable power module

EEE Format

Support IEEE 802.3az standard

Security

Binding of the IP address, MAC address, and port address; Binding of the IPv6, MAC address, and port address; Filter illegal MAC addresses; Port-based and MAC-based 802.1x; MAB; Portal and Portal 2.0 authentication; ARP-check; DAI; Restriction on the rate of ARP packets; Gateway anti-ARP spoofing; Broadcast suppression; Hierarchical management by administrators and password protection; RADIUS and TACACS+;Change of Authorization; AAA security authentication (IPv4/IPv6) in device login management; SSH and SSH V2.0; BPDU guard; IP source guard; CPP, NFPP; Port protection, CoA(RADIUS change of authorization),SCP (Secure Copy)Dynamic ARP Inspection(DAI)

Manageability

SNMPv1/v2c/v3, CLI (Telnet / Console), RMON (1, 2, 3, 9), SSH, Syslog / Debug, NTP / SNTP, FTP, TFTP, Web, SFLOW,HTTP or HTTPS

# RG-S2910-10GT2SFP-P-E supports SNMPv2c, CLI (Telnet / Console), Syslog, RMON (1, 2, 3, 9), Web

Hot Patch

Support

Smart Temperature Control

Auto fan speed adjustment; Fan malfunction alerts; Fan status check

# All models support the features above except RG-S2910-10GT2SFP-P-E

Smart Power Supply

N/A

N/A

N/A

Support power control and management

Support power control and management

Support power control and management

Other Protocols

FTP, TFTP, DNS client, DNS static

Dimensions
(W x D x H)  (mm)

440 × 260 × 43.6

440 × 260 × 43.6

340 × 260 × 44

440 × 260 × 44

440 × 320 × 44

440 × 360 × 44

Rack Height

1RU

Weight

≤3.5kg

≤4kg

<2.5kg

5.8kg (gross weight)

5.8kg (gross weight)

6.8kg (gross weight)

MTBF (hours)

614844

511280

590278

361726

501032

451363

Lightning Protection

4KV 4KV 6KV

6KV

6KV

6KV

Power Supply

AC input:
Rated voltage range: 100V to 240V AC
Maximum voltage range: 90V to 264V AC
Frequency: 50/60Hz
Rated current: 1.5A

HVDC input:
Input voltage range: 192V to 290V DC
Input current range: 0.5A to 0.1A

AC input:
Rated voltage range: 100V to 240V AC
Maximum voltage range: 90V to 264V AC
Frequency: 50/60Hz
Rated current: 1.5A

HVDC input:
Input voltage range: 192V to 290V DC
Input current range: 0.8A to 0.5A

AC input:

Rated voltage range: 100V to 240V AC

Maximum voltage range: 90V to 264V AC

Frequency: 50/60Hz

Rated current: 2A

HVDC input:
Input voltage range: 192V to 290V DC
Input current range: 1.0A to 0.4A

AC input:
Rated voltage range: 100V to 240V AC
Maximum voltage range: 90V to 264V AC
Frequency: 50/60Hz
Rated current: 6A

HVDC input:
Input voltage range: 192V to 290V DC
Input current range: 3.5A to 2.5A

AC power (RG-M5000E-AC500P):
Rated voltage range: 100V to 240V AC
Frequency: 50/60Hz
Rated current range: 7A to 3.5A

HVDC input:
Input voltage range: 192V to 290V DC
Input current range: 3.5A to 2.5A

DC power (RG-M5000E-DC500P):
Rated voltage range: -36V to -72V DC
Rated current: 16.5A

AC power (RG-RG-PA1150P-F):
Rated voltage range: 100V to 240V AC
Frequency: 50/60Hz
Rated current: 10A

HVDC input:
Input voltage range: 192V to 290V DC
Rated current range: 10A

AC power (RG-M5000E-AC500P):
Rated voltage range: 100V to 240V AC
Frequency: 50/60Hz
Rated current range: 7A to 3.5A

HVDC input:
Input voltage range: 192V to 290V DC
Input current range: 3.5A to 2.5A

DC power (RG-M5000E-DC500P):
Rated voltage range: -36V to -72V DC
Rated current: 16.5A

AC power (RG-RG-PA1150P-F):
Rated voltage range: 100V to 240V AC
Frequency: 50/60Hz
Rated current: 10A

HVDC input:
Input voltage range: 192V to 290V DC
Rated current range: 10A

Power Consumption

24W

50W

165W (with 8-port PoE or 4-port PoE+)

470W (with full PoE)

850W (with 24-port PoE+)

1700W (with 48-port PoE+)

PoE Power

N/A

N/A

125W

370W

RG-M5000E-AC500P: 370W
RG-M5000E-DC500P: 370W
RG-PA1150P-F: 740W

RG-M5000E-AC500P: 370W
RG-M5000E-DC500P: 370W
RG-PA1150P-F: 740W

Temperature

Operating temperature: 0°C to 50°C

Operating temperature: 0°C to 50°C

Operating temperature: 0°C to 45°C

Operating temperature: 0°C to 50°C

Operating temperature: 0°C to 50°C

Operating temperature: 0°C to 50°C

Storage temperature: -40°C to 70°C

Humidity

Operating humidity: 10% to 90%RH

Storage humidity: 5% to 95%RH

Operating Altitude

-500m to 5,000m

Application

The RG-S2910XS-E switch series features high safety, efficiency and intelligence with superior energy-saving capacity. This series is suitable for the following scenarios:

  • Full gigabit access to large-scale corporate and institutional LANs, such as government buildings, universities, and large manufacturing / energy / metallurgical companies
  • Full gigabit access to business systems, such as hospitals, libraries, exhibition centers and
    IP Phone websites , WLAN access points and high definition camera access
  • Full gigabit access to server clusters and 10G high bandwidth uplink
  • Secure access through flexible and diverse security control policies that can protect against network attacks and viruses

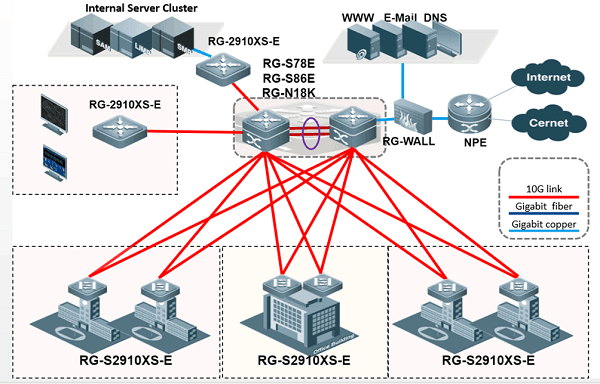

Scenario 1

The RG-S2910XS-E Series Switches are used with the RG-S5750E / P / RG-S78E Series Aggregation Switches. Also working closely with the RG-N18K Series at its core, this implementation provides a Gigabit Ethernet downlink and 10 Gigabit Ethernet uplinks to meet the growing number of network nodes and demanding bandwidth requirements.

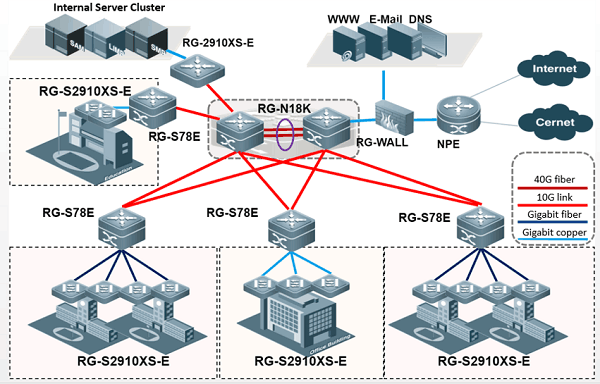

Scenario 2

The RG-S2910XS-E Series switches can be used with the RG-S78E Series / RG-S86E Series / RG-N18K Series to provide Gigabit Ethernet downlink and 10 Gigabit Ethernet uplink to a simplified core network architecture. The different combinations provide comprehensive coverage for large, medium and small size network deployments. Not only does it simplify the network architecture, but also significantly improves the stability and efficiency of the network system.

Overview

RG-S2910XS-E Series Generasi Baru Sakelar Hemat dan Hemat Energi

  • Power consumption is reduced by up to 40% compared to similar products
  • RGOS 11.X multi-process modular OS is developed by Ruijie Networks
  • SDN features and compliance with OpenFlow 1.3
  • Toggle zero configuration via TR069
  • Multiple ports

Safe and Reliable Hardware and Software

  • 3 months reliability testing (regarding high and low temperature tolerances, vibration, electromagnetic interference, power surges, signal tests, etc.)
  • Hardware and software-level CPU Protection Policy (CPP)
  • Accurate traffic statistics
  • Integrated management and control of 9 virtual devices

Creating New Green and Energy Saving Devices

  • Compared to the RG-S5750-S product with the same configuration, S2910XS-E reduces power consumption by more than 40%.
  • Compared to the RG-S2900G-E product of a lower configuration, the S2910XS-E reduces power consumption by about 10%.
Advanced Technologies

Updated Processing Chip Ensures High Performance

  • High level of integration between MAC chip and CPU, featuring high stability, high reliability and low power consumption
  • 512 MB memory and 256 MB flash memory, preventing internal processing bottlenecks

Flexible Port Types and Expansion on Demand

  • One device supports a maximum of 24/48 gigabit power ports and four 10GE SFP ports, and can support line rate forwarding.
  • The PoE switch is configured with two multiplexed downlink SFP ports and two fixed 10GE SFP ports, and is expandable with two 10GE ports to meet flexible expansion requirements.
  • High-end PoE switches are equipped with USB ports for device upgrade, log backup and security identification.

Multi-Process and Modular OS RGOS 11.X

  • The components (processes) are independent. Damage to one component (process) will not affect other components.
  • Compared to non-modular OS, the probability of a host reset is reduced by 98%. For example, if an STP (process) component is damaged, the entire device is not reset.
  • Component (process) errors can be corrected automatically. For example, if an STP (process) component is damaged, only that component (process) instead of the entire device will be automatically restarted and returned to its normal state to run.
Reliability

Strict Selection of Components for Optimal Quality

  • Drop in design for all components, ensuring universal quality standards for all products
  • Power: High quality power supply for use at altitudes from –500 m to 5000 m
  • Fan: Fan with smart speed adjustment to extend fan life
  • Moisture-proof, dust-proof, anti-corrosion, anti-fog, anti-salt performance with conformal coating to suit different environments

The Device Is Stable Running, Always Our Main Attention

  • Hardware and software-level CPU Protection Policy (CPP) and Network Foundation Protection Policy (NFPP) are combined.
  • The CPP developed by Ruijie Networks can summarize the amount of traffic destined for the CPU by category and assign different priorities to ensure the CPU is running stable.
  • Combined with NFPP, CPP can effectively prevent various attacks to offer the highest level of protection to the CPU and ensure normal running of various services, thereby ensuring the stable running of all devices on the network.

PoE Model, On-Demand Service Management and Control

The PoE model that complies with 802.3af and 802.3at standards offers a dual modular power supply, supporting PoE + on all downlink ports.

This switch is equipped with a one-click toggle button. Press the button to view the current communication and power supply status.
The power supply to the STA is not cut off during restart of the HPoE power supply host

VSU technology virtualizes 9 devices into 1 logical

  • Easy management:
    VSU is considered as a single switch on the network. Administrators can centrally manage all devices at the same time.
  • Millisecond failure:
    VSU and peripheral devices are connected via an aggregation link. In case of any device or link failure, failover to another member’s link only takes 50 to 200 ms.
  • Excellent scalability:
    Hot swappable network, any device that leaves or joins a virtual network does not have any impact on other devices.
Energy-Saving

Standard and Technology Support

  • IEEE802.3az (EEE) energy saving technology
  • Better compatibility with energy-saving effects ideal
  • The port switches to low power mode when the Ethernet connection is not active to reduce the port’s TX signal power. When data needs to be forwarded through the port, the port automatically switches back to normal operating mode.
  • Fan with Multi-level SmartSpeed ​​Adjustment

Energy saving, environmental friendly and low noise

Depending on the current fan operating mode, the system automatically sets the fan initial spin speed by default. When the ambient temperature changes, the fan speed will increase or decrease. Noise can be effectively suppressed at certain temperature levels, achieving efficient heat dissipation with lowest noise.

Always Seeking Ways to Improve Optimization

Energy saving technology, no PHY for SFP port, sleep port, intelligent fan speed adjustment …… is aimed at saving energy.
