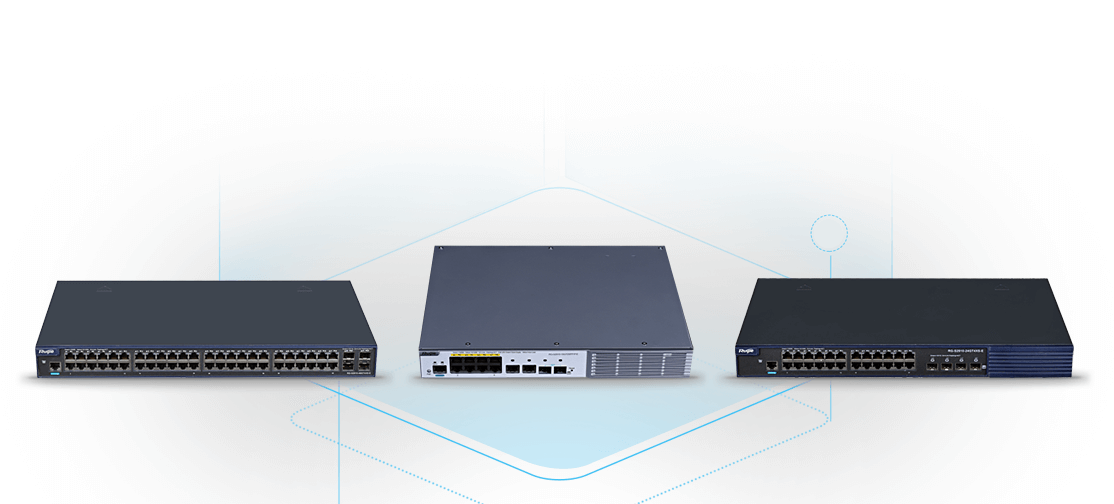

Ruijie RG-S2910XS-E Switch Series
Ruijie RG-S2910XS-E Switch Series is a collection of next-generation Gigabit switches designed for superior security, the switches provide Non-blocking / wire speed, high performance and outstanding energy efficiency. This series provides full Gigabit access and unmatched scalability to 10G performance.

DESCRIPTION
Ruijie RG-S2910XS-E Switch Series is a collection of next-generation Gigabit switches designed for superior security, the switches provide Non-blocking / wire speed, high performance and outstanding energy efficiency. This series provides full Gigabit access with unmatched scalability to 10G performance.
With the latest hardware architecture and Ruijie’s latest modular RGOS11.X operating system as well, the RG-S2910XS-E / P switch offers more capacity, faster hardware processing performance and better operating experience than ever before. In addition, the PoE model in various specifications supports all downlink ports running on PoE + and meets the high bandwidth demand of 10G uplink. The RG-S2910XS-E / P switch ensures high density user access and leading aggregation performance with ease.
Product feature highlight of the Ruijie RG-S2910XS-E Switch Series:
Network Virtualization (VSU) Support
● Dynamic Network Protection (CPP and NFPP Technology)
● Base Layer 3 Routing Support
● Power Redundancy support
● Complete 48-Port PoE + Support
Sorotan fitur produk dari Ruijie RG-S2910XS-E Switch Series:
● Dukungan Virtualisasi Jaringan (VSU)
● Perlindungan Jaringan Dinamis (Teknologi CPP dan NFPP)
● Dukungan Routing Lapisan Dasar 3
● Dukungan Power Redundancy
● Dukungan 48-Port PoE + Lengkap
Specifications for Ruijie Product
Model |
RG-S2910-24GT4XS-E |
RG-S2910-48GT4XS-E |
RG-S2910-10GT2SFP-P-E |
RG-S2910C-24GT2XS-P-E |
RG-S2910C-24GT2XS-HP-E |
RG-S2910C-48GT2XS-HP-E |
Ports | 24 10/100/1000BASE-T ports 4 1G/10GBASE-X SFP+ ports (non-combo) |
48 10/100/1000BASE-T ports 4 1G/10GBASE-X SFP+ ports (non-combo) |
10 10/100/1000BASE-T ports 2 100/1000BASE-X SFP ports (non-combo) |
24 10/100/1000BASE-T ports (PoE/PoE+) 2 100/1000BASE-X SFP ports (combo) 2 1G/10GBASE-X SFP+ ports (non-combo) |
24 10/100/1000BASE-T ports (PoE/PoE+) 2 100/1000BASE-X SFP ports (combo) 2 1G/10GBASE-X SFP+ ports (non-combo) |
48 10/100/1000BASE-T ports (PoE/PoE+)
2 100/1000BASE-X SFP ports (combo) 2 1G/10GBASE-X SFP+ ports (non-combo) |
Expansion Slots | N/A | N/A | N/A | 1 | 2 | 2 |
Modular Power Slots | N/A | N/A | N/A | N/A | 2 | 2 |
Fan Slots | Fixed | Fixed | Fanless | Fixed | Fixed | Fixed |
Expansion Modules | N/A | N/A | N/A | M2910-01XS M2910-01XT M2910-02XS M2910-04XS M2910-02XT |
M2910-01XS M2910-01XT M2910-04XS |
M2910-01XS M2910-01XT M2910-04XS |
Management Ports | 1 console port | 1 console port | 1 console port | 1 console port | 1 console port 1 USB 2.0 port |
1 console port 1 USB 2.0 port |
Switching Capacity | 264Gbps | 264Gbps | 256Gbps | 264Gbps | 264Gbps | 264Gbps |
Packet Forwarding Rate | 96Mpps | 132Mpps | 18Mpps | 96Mpps | 96Mpps | 132Mpps |
Max. Number of 10GE Ports | 4 | 4 | N/A | 4 | 4 | 4 |
PoE | N/A | N/A | IEEE802.3af and 802.3at power supply standards; Automatic/energy-saving (default) power supply mode; Hot startup and uninterrupted power supply; Port priority; PoE devices support stacking | IEEE802.3af and 802.3at power supply standards; Automatic/energy-saving (default) power supply mode; Hot startup and uninterrupted power supply; Port priority; PoE devices support stacking | IEEE802.3af and 802.3at power supply standards; Automatic/energy-saving (default) power supply mode; Hot startup and uninterrupted power supply; Port priority; PoE devices support stacking |
IEEE802.3af and 802.3at power supply standards; Automatic/energy-saving (default) power supply mode; Hot startup and uninterrupted power supply; Port priority; PoE devices support stacking
|
Port Buffer | 1.5MB | |||||
RAM | 512MB | |||||
ARP Table | 1 | 1 | 500 | 1 | 1 | 1 |
MAC Address | 16K | |||||
Routing Table Size (IPv4/IPv6) |
500 (IPv4/IPv6) | 500 (IPv4/IPv6) | 64 (IPv4/IPv6) | 500 (IPv4/IPv6) | 500 (IPv4/IPv6) | 500 (IPv4/IPv6) |
ACL Entries | In: 1,500 Out: 500 |
In: 1,500 Out: 500 |
In: 750 Out: N/A |
In: 1,500 Out: 500 |
In: 1,500 Out: 500 |
In: 1,500 Out: 500 |
VLAN | 4K 802.1q VLANs, Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, QinQ, IP subnet-based VLAN, GVRP, Guest VLAN | |||||
QinQ | Basic QinQ, Flexible QinQ, 1:1 VLAN switching, N:1 VLAN switching, 1:N VLAN switching | |||||
Link Aggregation | AP, LACP (maximum 8 ports can be aggregated), Cross devices AP, Flow balance | |||||
Port Mirroring | Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN # RG-S2910-10GT2SFP-P-E supports N:1/1:N port mirroring, Flow-based mirroring |
|||||
Spanning Tree Protocols | IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC protection, ROOT guard,Spanning Tree Root Guard(STRG) | |||||
DHCP | DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay,DHCP Snooping Option 82 | |||||
Multiple Spanning Tree Protocol (MSTP) Instances | 64 | |||||
Maximum Aggregation Port (AP) | 128 | |||||
SDN | OpenFlow 1.0 & 1.3 | |||||
VSU (Virtual Switch Unit) | Support (up to 9 stack members,to ensure the effectiveness of the use, 4 members are recommended* ), Local and distant stacking, Cross-chassis link aggregation in the stack, Stacking via 10G Ethernet ports # All models support the features above except RG-S2910-10GT2SFP-P-E |
|||||
SCN (Simplicity Campus Network) | Support establishing large L2 network with core devices and achieve resources pooling via VSU and VSD. Only management on core devices is required and hence simplifies horizontal and vertical network management and maintenance. # All models support the features above except RG-S2910-10GT2SFP-P-E |
|||||
Zero Configuration | CWMP(TR069) | |||||
L2 Features | MAC, EEE, ARP, VLAN, Basic QinQ, Felix QinQ, Link aggregation, Mirroring, STP, RSTP, MSTP, Broadcast/Multicast/Unknown unicast storm control, IGMP v1/v2/v3 snooping, IPv6 MLD Snooping v1/v2,IGMP SGVL/IVGL, IGMP querier, IGMP filter, IGMP fast leave, DHCP, Jumbo frame, RLDP, LLDP, LLDP-MED, REUP, G.8032 ERPS, Layer 2 protocol tunnel | |||||
Layer 2 Protocols | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3ad, IEEE802.1p, IEEE802.1x, IEEE802.3ab, IEEE802.1Q (GVRP), IEEE802.1D, IEEE802.1w, IEEE802.1s | |||||
IPv4 Features | Ping, Traceroute | |||||
IPv6 Features | ICMPv6, IPv6 Ping, IPv6 Tracert, Manually configure local address, Automatically create local address | |||||
IPv4 Routing Protocols | Static Routing, RIP, OSPF v1/v2 | |||||
Basic IPv6 Protocols | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping and IPv6 Tracert | |||||
IPv6 Routing Protocols | Static routing, RIPng, OSPF v3 | |||||
Multicast | IGMP v1/v2/v3, IGMP v1/v2/v3 snooping, IGMP proxy, IGMP filter, IGMP fast leave, Multicast routing protocols (PIM-DM, PIM-SM, PIM-SSM), MLD snooping, MLD, PIM-SMv6, Multicast static routing | |||||
G.8032 | Support | |||||
ACL | Standard/Extended/Expert ACL, Extended MAC ACL, ACL 80, IPv6 ACL, ACL logging, ACL counter, ACL remark, Global ACL, ACL redirect, Time-based ACL,Router ACL, VLAN ACL, Port-Based ACL | |||||
QoS | 802.1p/DSCP/TOS traffic classification; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WFQ, SP+WRR, SP+DRR; Input / output port-based speed limit; Port-based traffic recognition; Each port supports 8 queue priorities; flow-based rate limiting with the minimum granularity of 8Kbps,Dynamic QoS | |||||
Reliability | VSU (virtualization technology for virtualizing multiple devices into 1); RIP GR; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol) | VSU (virtualization technology for virtualizing multiple devices into 1); RIP GR; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol) | RIP GR; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol) | VSU (virtualization technology for virtualizing multiple devices into 1); RIP GR; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol) | VSU (virtualization technology for virtualizing multiple devices into 1); RIP GR; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol); 1+1 power redundancy; Hot-swappable power module |
VSU (virtualization technology for virtualizing multiple devices into 1); RIP GR; ERPS (G.8032); REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol); 1+1 power redundancy; Hot-swappable power module
|
EEE Format | Support IEEE 802.3az standard | |||||
Security | Binding of the IP address, MAC address, and port address; Binding of the IPv6, MAC address, and port address; Filter illegal MAC addresses; Port-based and MAC-based 802.1x; MAB; Portal and Portal 2.0 authentication; ARP-check; DAI; Restriction on the rate of ARP packets; Gateway anti-ARP spoofing; Broadcast suppression; Hierarchical management by administrators and password protection; RADIUS and TACACS+;Change of Authorization; AAA security authentication (IPv4/IPv6) in device login management; SSH and SSH V2.0; BPDU guard; IP source guard; CPP, NFPP; Port protection, CoA(RADIUS change of authorization),SCP (Secure Copy)Dynamic ARP Inspection(DAI) | |||||
Manageability | SNMPv1/v2c/v3, CLI (Telnet / Console), RMON (1, 2, 3, 9), SSH, Syslog / Debug, NTP / SNTP, FTP, TFTP, Web, SFLOW,HTTP or HTTPS # RG-S2910-10GT2SFP-P-E supports SNMPv2c, CLI (Telnet / Console), Syslog, RMON (1, 2, 3, 9), Web |
|||||
Hot Patch | Support | |||||
Smart Temperature Control | Auto fan speed adjustment; Fan malfunction alerts; Fan status check # All models support the features above except RG-S2910-10GT2SFP-P-E |
|||||
Smart Power Supply | N/A | N/A | N/A | Support power control and management | Support power control and management |
Support power control and management
|
Other Protocols | FTP, TFTP, DNS client, DNS static | |||||
Dimensions (W x D x H) (mm) |
440 × 260 × 43.6 | 440 × 260 × 43.6 | 340 × 260 × 44 | 440 × 260 × 44 | 440 × 320 × 44 | 440 × 360 × 44 |
Rack Height | 1RU | |||||
Weight | ≤3.5kg | ≤4kg | <2.5kg | 5.8kg (gross weight) | 5.8kg (gross weight) |
6.8kg (gross weight)
|
MTBF (hours) | 614844 | 511280 | 590278 | 361726 | 501032 | 451363 |
Lightning Protection | 4KV | 4KV | 6KV | 6KV | 6KV | 6KV |
Power Supply | AC input: Rated voltage range: 100V to 240V AC Maximum voltage range: 90V to 264V AC Frequency: 50/60Hz Rated current: 1.5AHVDC input: Input voltage range: 192V to 290V DC Input current range: 0.5A to 0.1A |
AC input: Rated voltage range: 100V to 240V AC Maximum voltage range: 90V to 264V AC Frequency: 50/60Hz Rated current: 1.5AHVDC input: Input voltage range: 192V to 290V DC Input current range: 0.8A to 0.5A |
AC input: Rated voltage range: 100V to 240V AC Maximum voltage range: 90V to 264V AC Frequency: 50/60Hz Rated current: 2AHVDC input: Input voltage range: 192V to 290V DC Input current range: 1.0A to 0.4A |
AC input: Rated voltage range: 100V to 240V AC Maximum voltage range: 90V to 264V AC Frequency: 50/60Hz Rated current: 6AHVDC input: Input voltage range: 192V to 290V DC Input current range: 3.5A to 2.5A |
AC power (RG-M5000E-AC500P): Rated voltage range: 100V to 240V AC Frequency: 50/60Hz Rated current range: 7A to 3.5AHVDC input: Input voltage range: 192V to 290V DC Input current range: 3.5A to 2.5ADC power (RG-M5000E-DC500P): Rated voltage range: -36V to -72V DC Rated current: 16.5AAC power (RG-RG-PA1150P-F): Rated voltage range: 100V to 240V AC Frequency: 50/60Hz Rated current: 10AHVDC input: Input voltage range: 192V to 290V DC Rated current range: 10A |
AC power (RG-M5000E-AC500P): HVDC input: DC power (RG-M5000E-DC500P): AC power (RG-RG-PA1150P-F): HVDC input: |
Power Consumption | 24W | 50W | 165W (with 8-port PoE or 4-port PoE+) | 470W (with full PoE) | 850W (with 24-port PoE+) |
1700W (with 48-port PoE+)
|
PoE Power | N/A | N/A | 125W | 370W | RG-M5000E-AC500P: 370W RG-M5000E-DC500P: 370W RG-PA1150P-F: 740W |
RG-M5000E-AC500P: 370W
RG-M5000E-DC500P: 370W RG-PA1150P-F: 740W |
Temperature
|
Operating temperature: 0°C to 50°C | Operating temperature: 0°C to 50°C | Operating temperature: 0°C to 45°C | Operating temperature: 0°C to 50°C | Operating temperature: 0°C to 50°C |
Operating temperature: 0°C to 50°C
|
Storage temperature: -40°C to 70°C | ||||||
Humidity
|
Operating humidity: 10% to 90%RH | |||||
Storage humidity: 5% to 95%RH |
*Future release support
Energy Efficient and Energy Efficient New Series RG-S2910XS-E Ruijie Switches
- Power consumption is reduced by 40% compared to similar products
- Multi-process modular OS RGOS 11.X developed by Ruijie Networks
- SDN features and compliance with OpenFlow 1.3
- Switch zero configuration via TR069
- Multiple ports
Ruijie Advanced Technologies
Ruijie Safe and Reliable Hardware and Software
- Strict selection of components
- 3 months reliability testing
(concerning high and low temperature tolerance, vibration, electromagnetic interference, power surges, signal test, etc.) - Hardware and software-level CPU Protection Policy (CPP)
- Accurate traffic statistics
- Integrated management and control of 9 virtual devices
Ruijie Multiple Modes Ensures Easy Management
Ruijie Creates New Eco-friendly and Energy Efficient Devices
Compared to the RG-S5750-S product with the same configuration, the S2910XS-E reduces power consumption by more than 40% .
Compared to the RG-S2900G-E product of a lower configuration, the S2910XS-E reduces power consumption by about 10% .

Ruijie Latest Processing Chip Ensures High Performance
High level of integration between MAC chip and CPU, featuring high stability, high reliability and low power consumption
512 MB memory and 256 MB flash memory, preventing internal processing bottlenecks
Ruijie Flexible Port Type and
On-Demand Expansion
- One device supports a maximum of 24/48 gigabit power ports and four 10GE SFP ports, and can support line-level forwarding.
- The PoE switch is configured with two fixed multiplex SFP downlink ports and two 10GE SFP ports, and can be expanded with two 10GE ports to meet flexible expansion requirements.
- High-end PoE switches are equipped with USB ports for device upgrade, log backup and security identification.

Multi-Process and Modular
OS RGOS 11.X
- The components (processes) are independent. The details of one component (process) will not affect other components. Compared to non-modular OS, the probability of a host reset is reduced by 98%. For example, if an STP (process) component is damaged, the entire device does not reset.
- Component (process) errors can be corrected automatically. For example, if an STP (process) component is damaged, only that component (process) and not the entire device is automatically restarted and returned to its normal running state.
-
Multi-Process and Modular
OS RGOS 11.X- The components (processes) are independent. The details of one component (process) will not affect other components. Compared to non-modular OS, the probability of a host reset is reduced by 98%. For example, if an STP (process) component is damaged, the entire device does not reset.
- Component (process) errors can be corrected automatically. For example, if an STP (process) component is damaged, only that component (process) and not the entire device is automatically restarted and returned to its normal running state.
Rigorous Component Selection for
Optimal Quality
Drop in design for all components, ensuring universal quality standards for all products
- Power: High quality power supply for use at altitudes from –500 m to 5000 m
- Fan: Fan with intelligent speed adjustment to extend fan life
- Moisture-proof, dust-proof, anti-corrosion, anti-fog, anti-salt fog performance with coatings to suit different environments
The Device Is Stable Running,
Always The Main Of Our Concern
- Hardware and software-level CPU Protection Policy (CPP) (NFPP) and Network Foundation Protection combined.
- The CPP developed by Ruijie Networks can summarize the amount of traffic destined for the CPU by category and assign different priorities to ensure the CPU is running stably.
- Combined with NFPP, CPP can effectively prevent various attacks to offer the highest level of protection to the CPU and ensure the normal running of various services, thereby ensuring the stable running of all devices on the network.

PoE Model, On-Demand Service Management and Control
- The PoE model that complies with 802.3af and 802.3at standards offers a dual modular power supply, supporting PoE + on all downlink ports.
- This switch is equipped with a one-click switching button. Press the button to view the current communication status and power supply.
- The power supply to the STA is not interrupted during restart of the HPoE power supply host
VSU technology virtualizes
9 devices into 1 logical
- Easy management:
VSU is considered as a single switch in the network. Administrators can centrally manage all devices at the same time. - Millisecond failover:
VSU and peripheral devices connected via an aggregation link. After any device or link failure, link failure to other members only takes 50 to 200 ms. - Excellent scalability:
Hot swappable network, any device leaving or joining a virtual network causes zero impact on other devices.
Ruijie Standards and Technology Support
- IEEE802.3az (EEE) energy saving technology
- Better compatibility with energy-saving effects ideal
- The port switches to low power mode when the Ethernet connection is idle to reduce the TX signal strength from the port. When data needs to be forwarded through the port, the port automatically switches back to normal operating mode.
Ruijie Multi-level Intelligent Speed Adjustment Fan
Energy saving, environmental friendly and low noise
Depending on the current fan operating mode, the system automatically sets the fan’s default initial spin speed. When the ambient temperature changes, the fan rotation speed increases or decreases. Noise can be effectively suppressed at certain temperature levels, achieving efficient heat dissipation with lowest noise.

Always Seeking Ways to Improve
Ruijie’s Optimization
Energy saving technology, no PHY for SFP port, sleep port, intelligent fan speed adjustment aimed at energy saving.
Ruijie application
The RG-S2910XS-E switch series features high safety, efficiency and intelligence with superior energy-saving capacity. This series is suitable for the following scenarios:
Full gigabit access to LANs of large-scale enterprises and institutions, such as government buildings, universities, and large manufacturing / energy / metallurgical enterprises
● Full gigabit access to business systems, such as hospitals, libraries, exhibition centers, and websites
● IP telephone, WLAN access point, and high definition camera access
● Full gigabit access to server cluster and 10G high bandwidth uplink
● Secure access through flexible and diverse security control policies that can withstand viruses and network attacks

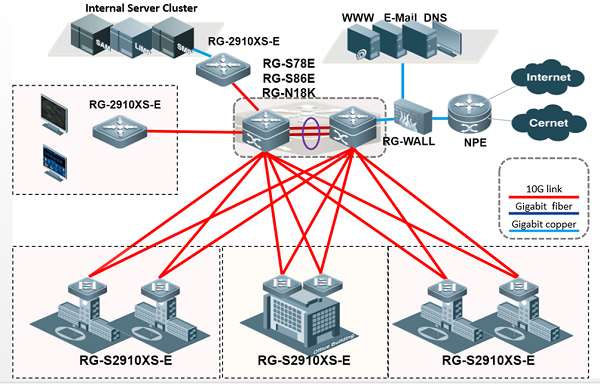

Scenario 1
The RG-S2910XS-E Series Switch is deployed with the RG-S5750E / P Series / RG-S78E Series Aggregation Switch. Also working closely with the RG-N18K Series at its core, this deployment provides a Gigabit Ethernet downlink and 10 Gigabit Ethernet uplinks to meet the ever-increasing number of network nodes and demanding bandwidth requirements.
Scenario 2
The RG-S2910XS-E Series Switch can be used with the RG-S78E Series / RG-S86E Series / RG-N18K Series to provide Gigabit Ethernet downlink and 10 Gigabit Ethernet uplink to a simplified core network architecture. The different combinations provide comprehensive coverage for large, medium and small size network deployments. Not only does it simplify the network architecture, but also significantly improves the stability and efficiency of the network system.
Order Information Dari Ruijie
Model |
Description |
RG-S2910-24GT4XS-E |
24 10/100/1000BASE-T Ports, 4 1G/10GBASE-X SFP+ Ports (non-combo), AC |
RG-S2910-48GT4XS-E |
48 10/100/1000BASE-T Ports, 4 1G/10GBASE-X SFP+ Ports (non-combo), AC |
RG-S2910C-24GT2XS-P-E |
24 10/100/1000BASE-T Ports (PoE/PoE+), 2 100/1000BASE-X SFP Ports (combo), 2 1G/10GBASE-X SFP+ Ports (non-combo), 1 Expansion Slot, AC |
RG-S2910-10GT2SFP-P-E |
10 10/100/1000BASE-T Ports, 2 100/1000BASE-X SFP Ports (non-combo), Port 1-8 support PoE/PoE+, AC |
RG-S2910C-24GT2XS-HP-E |
24 10/100/1000BASE-T Ports (PoE/PoE+), 2 100/1000BASE-X SFP Ports (combo), 2 1G/10GBASE-X SFP+ Ports (non-combo), 1 USB, 2 Expansion Slots, 2 Modular Power Slots, AC/DC |
RG-S2910C-48GT2XS-HP-E |
48 10/100/1000BASE-T Ports (PoE/PoE+), 2 100/1000BASE-X SFP Ports (combo), 2 1G/10GBASE-X SFP+ Ports (non-combo), 1 USB, 2 Expansion Slots, 2 Modular Power Slots, AC/DC |
Optional Accessories |
|
M2910-01XS |
1-Port 10G SFP+ Interface Module, for S2910XS PoE models |
M2910-01XT |
1-Port 10G copper Interface Module, for S2910XS PoE models |
M2910-02XS |
2-Port 10G SFP+ Interface Module, only for RG-S2910C-24GT2XS-P-E |
*M2910-02XT |
2-Port 10G copper Interface Module, only for RG-S2910C-24GT2XS-P-E * Planned for future support |
*M2910-04XS |
4-Port 10G SFP+ Interface Module, for S2910XS PoE models * Planned for future support |
RG-M5000E-AC500P |
AC Power Module, 370W Power Budget for PoE, up to 24 PoE ports or 12 PoE+ ports (only for RG-S2910C-24GT2XS-HP-E and RG-S2910C-48GT2XS-HP-E) |
RG-M5000E-DC500P |
DC Power Module, -32V to -72V DC input voltage, 370W Power Budget for PoE, up to 24 PoE ports or 12 PoE+ ports (only for RG-S2910C-24GT2XS-HP-E and RG-S2910C-48GT2XS-HP-E) |
RG-PA1150P-F |
AC Power Module, 740W Power Budget for PoE, up to 48 PoE ports or 24 PoE+ ports (only for RG-S2910C-24GT2XS-HP-E and RG-S2910C-48GT2XS-HP-E) |
FE-SFP-LX-MM1310 |
100M Multimode Interface Module (2km) |
FE-SFP-LH15-SM1310 |
100M Single-mode Interface Module (15km) |
Mini-GBIC-GT |
1000BASE-GT mini GBIC Transceiver |
Mini-GBIC-SX-MM850 |
1000BASE-SX mini GBIC Transceiver (850nm) |
Mini-GBIC-LX-SM1310 |
1000BASE-LX mini GBIC Transceiver (1310nm) |
Mini-GBIC-LH40-SM1310 |
1000BASE-LH mini GBIC Transceiver (1310nm, 40km) |
Mini-GBIC-ZX50-SM1550 |
1000BASE-ZX mini GBIC Transceiver (1550nm, 50km) |
Mini-GBIC-ZX80-SM1550 |
1000BASE-ZX mini GBIC Transceiver (1550nm, 80km) |
Mini-GBIC-ZX100-SM1550 |
1000BASE-ZX mini GBIC Transceiver (1550nm, 100km) |
XG-SFP-SR-MM850 |
10GBASE-SR, SFP+ Transceiver, MM (850nm, 300m, LC) |
XG-SFP-LR-SM1310 |
10GBASE-SR, SFP+ Transceiver (1310nm, 10km, LC) |
XG-SFP-ER-SM1550 |
10GBASE-SR, SFP+ Transceiver (1550nm, 40km, LC) |
GE-SFP-LX20-SM1310-BIDI |
Gigabit SFP BIDI Transceiver (TX1310/RX1550, 20km, LC) |
GE-SFP-LX20-SM1550-BIDI |
Gigabit SFP BIDI Transceiver (TX1550/RX1310, 20km, LC) |
GE-SFP-LH40-SM1310-BIDI |
Gigabit SFP BIDI Transceiver (TX1310/RX1550, 40km, LC) |
GE-SFP-LH40-SM1550-BIDI |
Gigabit SFP BIDI Transceiver (TX1550/RX1310, 40km, LC) |
XG-SFP-AOC1M |
10GBASE SFP+ Optical Stack Cable (included both side transceivers) for S2910 and S5750-H Series Switches, 1m |
XG-SFP-AOC3M |
10GBASE SFP+ Optical Stack Cable (included both side transceivers) for S2910 and S5750-H Series Switches, 3m |
XG-SFP-AOC5M |
10GBASE SFP+ Optical Stack Cable (included both side transceivers) for S2910 and S5750-H Series Switches, 5m |
