Ruijie RG-S2910-H HPoE Switch Series

Ruijie RG-S2910-H HPoE Switch Series pushes the frontier with the leading IEEE802.3bt standard, delivering a power output of 60W per port. The HPoE switch guarantees the best safety, efficiency, stability and energy-saving experience. Get this product only at the best Ruijie RG-S2910-H in Indonesia.

Request a Quote

DESCRIPTION

Ruijie RG-S2910-H HPoE Switch Series pushes the frontier with the leading IEEE802.3bt standard, delivering a power output of 60W per port. The HPoE switch guarantees the best safety, efficiency, stability and energy-saving experience.

HPoE switches are highly adaptive to a wide range of options, eliminating rigid ties at high deployment costs, slow implementation cycles, unstable power delivery, management complexity, and unsatisfactory security issues that alternative solutions have to solve. The switch fully addresses the need for high PoE access for low power selection as well as high power Wi-Fi hotspot applications in outdoor venues.

Industrial grade Power Box (PBOX) is available to support non-PoE tools or non-IEEE 802.3bt (PD) powered devices. PBOX fully supports remote power delivery for high power devices.

The RG-S2910-H HPoE Switch Series feature highlights:

  • Up to 60 Watts per Port with High Power PoE Technology (IEEE 802.3bt)
  • Industrial grade PBOX for Flexible Remote Use (12VDC / 24VAC Option)
  • Excellent Power delivery stability (Average Error Rate <0.5%)
  • Save Time & Cost for Construction Work
Specification

HPoE Switches Ruijie

Model

RG-S2910-24GT4SFP-UP-H

RG-S2910-24GT4XS-UP-H

RG-S2910-10GT2SFP-UP-H

Ports 24 10/100/1000BASE-T ports (PoE/PoE+), 4 Gigabit SFP ports (non-combo) uplink, Port 1-4 for HPoE, AC 24 10/100/1000BASE-T ports (PoE/PoE+), 4 1G/10G SFP+ ports (non-combo) uplink, Port 1-4 for HPoE, AC 10 10/100/1000BASE-T ports (8ports PoE/PoE+), 2 Gigabit SFP ports (non-combo) uplink, Port 1-8 for HPoE, AC
Management Port 1 console port
Switching Capacity Up to 256Gbps Up to 256Gbps Up to 256Gbps
Packet Forwarding Rate 42Mpps/96Mpps Up to 96Mpps Up to 18Mpps
PoE IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt
Port Buffer 1.5MB
ARP Table 1 1 500
MAC Address 16K
Routing Table Size (IPv4/IPv6) 500 (IPv4/IPv6) 500 (IPv4/IPv6) 64 (IPv4/IPv6)
ACL Entries In: 1500
Out: 500
In: 1500
Out: 500
In: 750
Out: N/A
VLAN Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, Private VLAN, Voice VLAN, IP subnet-based VLAN, GVRP
QinQ Basic QinQ, Flexible QinQ
Port Mirroring Support aggregation port as source and destination port of mirroring; Flow-based mirroring; VLAN-based mirroring; Many-to-one mirroring; One-to-many mirroring; Cross-device traffic mirroring; RSPAN; ERSPAN Support aggregation port as source and destination port of mirroring; Flow-based mirroring; VLAN-based mirroring; Many-to-one mirroring; One-to-many mirroring; Cross-device traffic mirroring; RSPAN; ERSPAN Support aggregation port as source and destination port of mirroring; Flow-based mirroring; VLAN-based mirroring; Many-to-one mirroring; One-to-many mirroring; RSPAN; ERSPAN
Spanning Tree Protocols IEEE802.1d STP, IEEE802.1w RSTP, standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC protection, ROOT guard
DHCP DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP snooping, IPv6 DHCP client, IPv6 DHCP relay
Multiple Spanning Tree Protocol (MSTP) Instances 64
SDN OpenFlow
VSU
VSU Stack Members Up to 9 stack members N/A
VSL 4 BASE-X ports can be configured as VSL N/A
Zero Configuration CWMP(TR069)
L2 Features MAC, VLAN, Basic QinQ, Felix QinQ, Mirroring, STP, RSTP, MSTP, Broadcast storm control, IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, Jumbo frame, RLDP, LLDP, LLDP-MED, REUP, G.8032
Layer 2 Protocols IEEE802.1d, IEEE802.1w, IEEE802.1s, IGMP Snooping v1/v2/v3
Layer 3 Features ARP, IPv4/v6
IPv4 Features Ping, Traceroute
IPv6 Features 0-64 any length mask, ICMPv6, Neighbor Discovery, Manually configure local address, Automatically create local address, IPv6 Ping, IPv6 Tracert, IPv6 extender option head
Basic IPv6 Protocols IPv6 addressing, Neighbor Discovery (ND), IPv6 ACL, ICMPv6, IPv6 Ping, IPv6 Tracert
IPv4 Routing Protocols Static Routing, RIP, OSPFv1/v2
IPv6 Routing Protocols Static Routing, RIPng, OSPFv3
G.8032 Support
ACL Standard IP ACL, Extended IP ACL, Extended MAC ACL, Expert ACL, ACL80, IPv6 ACL, ACL Logging, ACL Counter, ACL Remark, Global ACL, ACL Redirect
Reliability GR for RIP GR for RIP GR for RIP
EEE Format Support IEEE 802.3az standard
Security Binding of the IPv6 and MAC address; Port-based and MAC-based 802.1x; MAB; Portal and Portal 2.0 authentication; ARP-check; DAI; Gateway anti-ARP spoofing; Hierarchical management by administrators and password protection; RADIUS and TACACS+; SSH V1.5 and SSH V2.0; IP source guard; CPP, NFPP; Port protection
Manageability SNMPv1/v2c/v3, RMON(1, 2, 3, 9), SSH, Syslog / Debug, NTP / SNTP, FTP, TFTP, Web
Smart Temperature Control Temperature monitoring and alert
Dimensions (W x D x H) (mm) 440×260×44 440×260×44 340×260×44
Rack Height 1RU
MTBF 361712 hours 388055 hours 408710 hours
Lightning Protection 6KV 6KV 6KV
Power Supply AC input:
Nominal voltage range: 100V to 240V AC
Maximum voltage range: 90V to 264V AC
Frequency: 50Hz to 60HzRG-PBOX-DC12: Support 12VDC output and 10/100/1000M Ethernet signal transmission
RG-PBOX-AC24: Support 24VAC output and 10/100/1000M Ethernet signal transmission
(*For detailed specifications of the adapters, please refer to the below table.)
Power Consumption <460W <460W <630W
PoE Power Consumption Total 370W PoE/PoE+/HPoE budget output power
All 24 BASE-T ports support PoE (up to 24 ports) and PoE+ (up to 12 ports)
All ports from Port 1-4 support HPoE output power of up to 60W per port
Total 370W PoE/PoE+/HPoE budget output power
All 24 BASE-T ports support PoE (up to 24 ports) and PoE+ (up to 12 ports)
All ports from Port 1-4 support HPoE output power of up to 60W per port
Total 520W PoE/PoE+/HPoE budget output power
All ports from Port 1-8 support HPoE output power of up to 60W per port
Temperature
Operating temperature: 0°C to 50°C
Storage temperature: -40°C to 70°C
Humidity
Operating humidity: 10% to 90%RH
Storage humidity: 5% to 95%RH
Operating Altitude -500m to 5,000m

Industrial Adapters

Model RG-PBOX-DC12 RG-PBOX-AC24
Product Description High-power PoE power adapter, supports 12VDC output and 10/100/1000M Ethernet signal transmission, suitable for indoor or semi-open spaces.
High-power PoE power adapter, supports 24VAC output and 10/100/1000M Ethernet signal transmission, suitable for indoor or semi-open spaces.
Ports 2 10M/100M/1000M Ethernet ports, 1 standard power supply terminal block
2 10M/100M/1000M Ethernet ports, 1 standard power supply terminal block
Power Input
Input voltage range: 43-57V DC
Input voltage range: 43-57V DC
Input Interface: RJ45
Input Interface: RJ45
Maximum input power: 80W (PBOX input)
Maximum input power: 80W (PBOX input)
Power Output Power output port, 12VDC/60W
Power output port, 24VAC/60W
Operating Temperature -20℃ to 50℃
Storage Temperature -40℃ to 70℃
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 10% to 95% (non-condensing)
Operating Altitude -500m to 5000m
Protection Rating IP40
Dimensions (W x D x H) (mm) 187x89x35
Overview

Ruijie High-Power and Remote Power Supply, Ensuring Power Across The Network

Ruijie RG-S2910-H HPoE is used to solve problems, such as high installation costs, long construction period, unstable power delivery, difficult O&M, and low safety coefficient caused by the independent deployment of the power supply system required to conductor to power STA. HPoE can be widely used in current weak scenarios, new deployments and reconstructions and meets the power supply requirements of high power STAs in systems such as video surveillance, door control, information publishing, parking and DDC.

Ruijie’s Simple Placement

  • No independent power delivery system required
  • Two-in-one network and power cable
  • Shortened construction period
  • Reducing costs

Safe and Reliable Ruijie

  • Device Security
  • Power conducting safety
  • Network security

Easy O&M, Ruijie

Offering you an unmatched experience in every aspect from
device O&M to service management and control

  • Power delivery system connection to network for remote restart
  • Simple Virtualization Management
  • On-demand service management and control
Security and Reliability

Device Security

In an environment prone to thunderstorms and electromagnetic interference, the device is susceptible to damage caused by strong transient currents.

HPoE provides a variety of protection mechanisms;
Overcurrent protection, preventing damage to the device even on short circuit;
Port lightning protection up to 6KV, ensuring stable operation in various harsh environments.

Power Conducting Safety

In independent deployment mode strong current cables are used in most cases. The power cord voltage is higher than the safe voltage limit (36 V), which could result in an accident.

Ruijie HPoE technology complies with international power delivery standards and has low voltage and high safety, ensuring the safety of O&M and working personnel.

Network security

Support for various types of ACL, port security and IP + MAC + Port binding technology, effectively preventing various ARP fraud

Proactive prevention of DoS and DDoS attacks

Support for CPU Protection Policy (CPP) and Network Protection Protection (NFPP), which effectively prevents attacks on standalone devices and the entire network

Stable and Reliable Power Delivery

High power (60 W) and long range (100 m) delivery are provided. Compared with the conventional centralized power delivery mode:

Ruijie HPoE technology meets international standards; intelligently adjusts line loss and lowers voltage, reducing errors caused by manual adjustment; and provides independent power delivery via a single port, achieving fault domain isolation.

Easy O&M

Fast and Easy to Build

No Power Cord Required in Scenarios with a Network Cable

To supply power to a high-power (> 30 W) STA, an independent power delivery system needs to be used, and the results of grooving, pipe layout, wire-threading, debugging, and wall and floor decoration lead to very complex construction and a long construction life.

Only a network cable is required for power delivery and data transmission via HPoE.

Reducing Costs & Reducing Investment

30% discount in Typical Configuration Mode

If an independent power delivery system is used, materials such as power chassis, power cord, power socket and power adapter are required, while construction costs are also incurred, resulting in high overall costs.

In the Ruijie HPoE power delivery mode, the previously mentioned materials and accessories are not required, which reduces overall costs by 30% in a typical deployment scenario.

Remote Restart for Easy O&M

In conventional power delivery mode, the power delivery system is not connected to the network. When the device is damaged, a power supply must be found for manual restart, which can quickly solve most problems. However, if the defective device power supply cannot be restarted due to environmental restrictions, other, more complex solutions need to be adopted.

Ruijie HPoE allows the power delivery system to be connected to the network. Consequently, faulty devices can be started remotely using a PC to quickly fix errors and increase O&M efficiency.

Simple Virtualization Management

VSU technology virtualizes multiple physical devices into one logical device and uses a single IP address, Telnet processing, and CLI for management.

Multiple devices are managed as one device, ensuring high management efficiency.

On-Demand Service Management and Control

  • Scheduled power on / off of the STA:
    The start / stop time of the STA can be adjusted based on user habits.
  • Uninterrupted power delivery during hot start:
    power delivery to the STA is uninterrupted during restart of the HPoE power delivery host.
  • Anytime power state check:
    This switch is equipped with a one-click switching button. Press the button to view the current communication status and power supply.
Application

Ruijie application

With its powerful and flexible high power PoE features, the HPoE Series can fully meet the network requirements of the following scenarios:

  • PoE remote power delivery of high-power devices in various intelligent building systems, such as surveillance systems, access control systems, information broadcasting systems, digital clock systems, parking systems, etc.
  • In a variety of outdoor wireless use scenarios, the HPoE Series can meet the power delivery requirements of an off-power wireless AP.

Scenarios

The HPoE series provides high-power PoE remote power delivery for smart building infrared dome cameras, access control card readers, parking entrances, information broadcasting devices, etc.

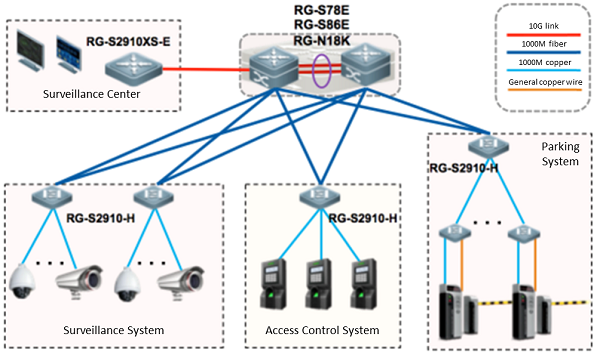

Penempatan RG-S2910-H untuk Bangunan Cerdas
Penempatan RG-S2910-H untuk Bangunan Cerdas

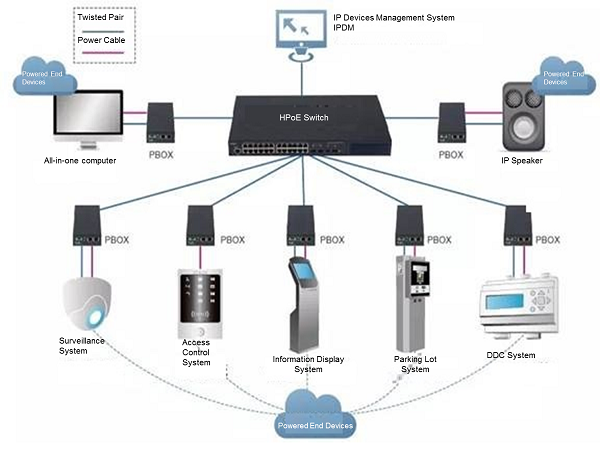

The HPoE series, as a power conductor from IP devices, supports direct power to devices that have been connected to the network.

RG-S2910-H Memberi Daya pada Perangkat AkhirScore:

  • Compared to existing power delivery methods using power cords, the HPoE Series can significantly reduce equipment costs and implementation costs.
  • High voltage power cables used in existing deployments carry certain risks. On the other hand, HPoE low-voltage power conductors are safe and reliable.
  • All devices are network accessible via IP deployment and can be integrated with IPDM (IP Device Management) systems for unified remote control.
Order Information

Order Information Ruijie

Model

Description

RG-S2910-24GT4SFP-UP-H

24 10/100/1000BASE-T ports (PoE/PoE+) and 4 Gigabit SFP ports (non-combo) uplink, Port 1-4 for HPoE, AC

RG-S2910-24GT4XS-UP-H

24 10/100/1000BASE-T ports (PoE/PoE+) and 4 1G/10G SFP+ ports (non-combo) uplink, Port 1-4 for HPoE, AC

RG-S2910-10GT2SFP-UP-H

10 10/100/1000BASE-T ports (HPoE/PoE/PoE+) and 2 Gigabit SFP ports (non-combo) uplink, Port 1-8 for HPoE, AC

Optional Industrial Adapters and Accessories

RG-PBOX-DC12

Support 12VDC output and 10/100/1000M Ethernet signal transmission; suitable for indoor or semi-open space

RG-PBOX-AC24

Support 24VAC output and 10/100/1000M Ethernet signal transmission; suitable for indoor or semi-open space

Mini-GBIC-GT

1000BASE-GT mini GBIC Transceiver

Mini-GBIC-SX-MM850 1000BASE-SX mini GBIC Transceiver (850nm)
Mini-GBIC-LX-SM1310

1000BASE-LX mini GBIC Transceiver (1310nm)

Mini-GBIC-LH40-SM1310

1000BASE-LH mini GBIC Transceiver (1310nm, 40km)

Mini-GBIC-ZX50-SM1550

1000BASE-ZX mini GBIC Transceiver (1550nm, 50km)

Mini-GBIC-ZX80-SM1550

1000BASE-ZX mini GBIC Transceiver (1550nm, 80km)

Mini-GBIC-ZX100-SM1550

1000BASE-ZX mini GBIC Transceiver (1550nm, 100km)
