Reyee Switch RG-ES224GC
Reyee Switch RG-ES224GC Series RG-ES200 Cloud Managed Non-POE Switches Soho Network Solutions. The intelligent surveillance switch supports network topology view of the entire network and monitors network status in real time
DESCRIPTION
RG-ES200 Series Cloud Managed Non-POE Switches for IP Surveillance
Reyee Switch RG-ES224GC Soho Network Solutions. With the growing video surveillance industry in China, there are various manufacturers and brands of surveillance equipment offering products of different qualities, which has increased the likelihood of surveillance network malfunction. At present, the technical threshold of most engineering firms involved in surveillance projects is relatively low.
When faced with surveillance network failures, they were unable to find the problem quickly, causing high workloads on operations and maintenance staff. Therefore, to solve the current problem of video surveillance industry, Ruijie Real-easy Series has launched a series of intelligent surveillance switches. Besides Ruijie Real-easy intelligent surveillance.
Model
|
RG-ES216GC |
RG-ES224GC |
Hardware specifications |
||
| Ports | 16 10/100/1000Base-T ports | 24 10/100/1000Base-T ports |
| Switching capacity | 32Gbps | 48Gbps |
| Package forwarding rate | 24Mpps | 36Mpps |
| Surge protection | Common mode: 6KV | Common mode: 6KV |
| Power consumption | <12W | <14W |
| Power supply | Built-in power supply | Built-in power supply |
| Dimensions (W x D x H) | 440x165x44mm | 440x165x44mm |
| MTBF | >200K | >200K |
| Operating environment | ||
| Operating temperature | 0 to 50°C | 0 to 50°C |
| Storage temperature | -40~70ºC | -40~70ºC |
| Operating humidity | 10% to 90% RH | 10% to 90% RH |
| Storage humidity | 5% to 95% RH | 5% to 95% RH |
| Software features | ||
| MAC capacity | 8K | 8K |
| Static MAC address | 16 | 16 |
| VLAN | Support 802.1Q VLAN | |
| Port management | Support port status display, port traffic statistics, port duplex / negotiation rate configuration, flow control configuration | |
| Security | Support broadcast storm suppression, port speed limit, port isolation, DHCP Snooping | |
| L2 features | Support port mirroring, loop protection, cable detection | |
| Management | Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud | |
Plug and Play with zero configuration

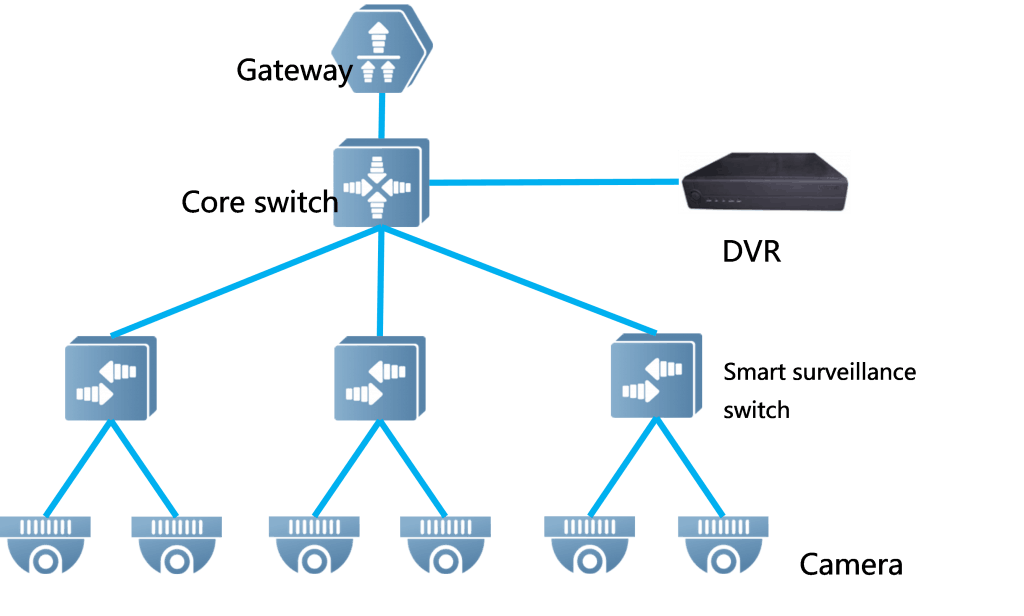

Under the factory default state the smart surveillance switch requires zero configuration once plugged in. The video surveillance network can be quickly set up after properly connecting the switch to the camera and DVR.
High compatibility for network cables
The intelligent surveillance switch not only supports standard cat5 / 5e / 6 network cables, but also supports data transmission over network cables of non-standard materials (such as 0.38 / 0.40 / 0.45 diameter copper-coated steel / iron), facilitating construction and wiring.
High surge protection for device stability
The ports of the smart surveillance switch offer surge protection of up to 6KV, reducing the chance of being damaged by surges and increasing the stability of the customer’s network.
Fast fault positioning
The intelligent surveillance switch supports network topology view of the entire network and monitors network status in real time. When a network camera failure occurs, the location and cause of failure can be displayed in a timely manner, and notifications can be sent via the mobile app.
Configure VLANs on demand
In a villa / shop / office network, a network camera and a wireless AP can be connected to the same Switch. Without network isolation, there may be problems such as lagging camera screen and slow wireless speed.
The smart surveillance switch provides a convenient and flexible VLAN division, which can automatically divide different VLANs according to the type of equipment connected to the port, so that the surveillance network and data network do not interfere with each other, increasing the stability of the entire network.
Ruijie Cloud application / Ruijie Cloud platform remote management
The intelligent surveillance switch not only supports web interface management, but also supports mobile applications and remote management of the Ruijie Cloud platform. Users can view network status, change configurations, and troubleshoot problems at home. Also, the port can be restarted remotely.
Automated networking for switches that allows one-step project management
The intelligent surveillance switch can obtain an IP address automatically from the gateway and connect to the external network without configuration. MANET for Switch is also supported. Users can scan QR codes from any Switch on the network using the mobile app to automatically add all Switches on the network to the project.
In addition, the smart surveillance switch supports networking with Reyee Series EG / EAP. Switches can be found automatically by Reyee Series EG / EAP and added to the appropriate project.
Model |
Description |
|
RG-ES216GC |
16 10/100/1000Base-T ports, support Web/ Ruijie Cloud APP/ Ruijie Cloud platform management |
|
RG-ES224GC |
24 10/100/1000Base-T ports, support Web/ Ruijie Cloud APP/ Ruijie Cloud platform management |
