Cisco Catalyst 3650 Series Specifications

Switch Performance

Table 7 shows Cisco Catalyst 3650 Series Switches performance specifications.

Table 7.          Cisco Catalyst 3650 Performance Specifications

Performance Numbers for All Switch Models
Switching capacity	176 Gbps on 48-port models (non-multigigabit models) 92 Gbps on 24-port models (non-multigigabit models) 254 Gbps on 24-port Multigigabit models with 2x10G uplink 272 Gbps on 24-port Multigigabit models with 4x10G uplink 392 Gbps on 48-port Multigigabit models with 4x10G uplink 472 Gbps on 48-port Multigigabit models with 8x10G uplink 472 Gbps on 48-port Multigigabit models with 2x40G uplink
Stacking bandwidth	160 Gbps
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	24,000
FNF entries	48,000 flow on 48-port models 24,000 flows on 24-port models
DRAM	4 GB
Flash	2 GB (non-Multigigabit models) and 4GB (Multigigabit models)
VLAN IDs	4,094
Total switched virtual interfaces (SVIs)	1,000
Jumbo frame	9198 bytes
Total routed ports per 3650 stack	208
Wireless
Number of access points per switch/stack	25
Number of wireless clients per switch/stack	1000
Total number of WLANs per switch	64
Wireless bandwidth per switch	Up to 40 Gbps on 48-port models Up to 20 Gbps on 24-port models
Supported Aironet access point series	3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
Forwarding Rate of Switch Models
Model	Forwarding Rate
4 x 1 Gigabit Ethernet Uplink-Models
3650-24TS	41.66 Mpps
3650-24PS
3650-48TS	77.37 Mpps
3650-48PS
3650-48FS
2 x 10 Gigabit Ethernet Uplink-Models
3650-24TD 3650-24PD 3650-24PDM	68.45 Mpps
3650-48TD 3650-48PD 3650-48FD	104.16 Mpps
3650-8X24PD	172.61 Mpps
3650-12X48FD	261.90 Mpps
4 x 10 Gigabit Ethernet Uplink-Models
3650-48TQ 3650-48PQ 3650-48FQ 3650-48FQM	130.95 Mpps
3650-8X24UQ	202.38 Mpps
3650-12X48UQ	291.66 Mpps
8 x 10 Gigabit Ethernet Uplink-Models
3650-12X48UR	351.19 Mpps
2 x 40 QSFP+ Uplink-Models
3650-12X48UZ	351.19 Mpps

Dimensions, Weight, Acoustic, Mean Time between Failures, and Environmental Range Specifications for Cisco Catalyst 3650 Series Switches

Table 8 shows dimensions, weight, acoustic, mean time between failure (MTBF), and environmental range. Weight includes the chassis assembly as it is shipped: three fans, two StackWise adapters, and one power supply blank. The weight also includes the default power supply that is shipped with the unit.

Table 8.          Dimensions, Weight, Acoustic, MTBF, and Environmental Range

Dimensions (H x W x D)	Inches	Centimeters
WS-C3650-24T WS-C3650-24P WS-C3650-48T WS-C3650-48P	1.73 x 17.5 x 17.625	4.4 x 44.5 x 44.8
WS-C3650-8X24PD
WS-C3650-48F WS-C3650-8X24UQ WS-C3650-12X48UQ WS-C3650-12X48UR WS-C3650-12X48UZ	1.73 x 17.5 x 19.125	4.4 x 44.5 x 48.6
WS-C3650-12X48FD
WS-C3650-24PDM WS-C3650-48FQM	1.73 x 17.5 x 11.625	4.4 x 44.5 x 29.6
Weight	Pounds	Kilograms
WS-C3650-24T	15.15	6.87
WS-C3650-24P	16.00	7.26
WS-C3650-24PDM	12.26	5.56
WS-C3650-8X24PD	16.60	7.53
WS-C3650-8X24UQ	16.71	7.58
WS-C3650-48T	15.90	7.21
WS-C3650-48P	16.75	7.60
WS-C3650-48F	17.20	7.80
WS-C3650-12X48FD	17.75	8.05
WS-C3650-12X48UQ	17.75	8.05
WS-C3650-12X48UR	17.80	8.08
WS-C3650-12X48UZ	17.80	8.08
WS-C3650-48FQM	12.65	5.74
STACK-T2-BLANK	0.1	0.05
C3650-STACK-KIT	0.25	0.11
MTBF Hours
WS-C3650-24T	661,800
WS-C3650-24P	528,280
WS-C3650-8X24PD	335,930
WS-C3650-8X24UQ	233,780
WS-C3650-24PDM (with power supply)	304,860
WS-C3650-48T	527,580
WS-C3650-48P	383,760
WS-C3650-48F	383,760
WS-C3650-12X48FD	227,490
WS-C3650-12X48UQ	203,130
WS-C3650-12X48UR	201,680
WS-C3650-12X48UZ	203,190
WS-C3650-48FQM (with power supply)	272,260
PWR-C2-250WAC	751,642
PWR-C2-640WAC	693,692
PWR-C2-1025WAC	570,259
PWR-C2-640WDC	706,759
PWR-C1-715WAC	664,055
PWR-C1-1100WAC	392,174
FAN-T1	16,661,470
Environmental Ranges
With AC Power Supply Operating Environment and Altitude	Normal operating temperature* and altitudes: -5ºC to +45ºC, up to 5000 feet (1500m) -5ºC to +40ºC, up to 10,000 feet (3000m) -5ºC to +35ºC, up to 13,000 feet (4000m) -5ºC to +30ºC, up to 16,400 feet (5000m) * Minimum ambient temperature for cold start is 32°F (0°C).
	Short-term* exceptional conditions: -5ºC to +50ºC, up to 5000 feet (1500m) -5ºC to +45ºC, up to 10,000 feet (3000m) -5ºC to +40ºC, up to 13,000 feet (4000m) -5ºC to +35ºC, up to 16,400 feet (5000m) -5ºC to +45ºC, at sea level with single fan failure * Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences.
With AC Power Supply Operating Environment and Altitude for WS-C3650-24PDM and WS-C3650-48FQM	Normal operating temperature* and altitudes: -5ºC to +45ºC, up to 5000 feet (1500m) -5ºC to +45ºC, up to 10,000 feet (3000m) * Minimum ambient temperature for cold start is 32°F (0°C).
	Short-term* exceptional conditions: -5ºC to +50ºC, up to 5000 feet (1500m) -5ºC to +50ºC, up to 10,000 feet (3000m) * Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences.
With DC Power Supply Operating Environment and Altitude (NEBS)	Normal operating temperature and altitudes: -5ºC to +45ºC, up to 6000 feet (1800m) -5ºC to +40ºC, up to 10,000 feet (3000m) -5ºC to +35ºC, up to 13,000 feet (4000m) -5ºC to +30ºC, up to 16,400 feet (5000m)
	Short-term* exceptional conditions: -5ºC to +55ºC, up to 6000 feet (1800m) -5ºC to +50ºC, up to 10,000 feet (3000m) -5ºC to +45ºC, up to 13,000 feet (4000m) -5ºC to +40ºC, up to 16,400 feet (5000m) -5ºC to +45ºC, at sea level with single fan failure * Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences.
Relative Humidity	5% to 96%, noncondensing
Acoustic Noise Measured Per ISO 7779 and Declared Per ISO 9296 Bystander Positions Operating to an Ambient Temperature of 25°C	With AC or DC power supply (with 16 PoE+ ports loaded): LpA: 45dB typical, 48dB maximum 42dB typical, 45dB maximum for WS-C3650-24PDM and WS-C3650-48FQM LwA: 5.5B typical, 5.8B maximum 5.3B typical, 5.6B maximum for WS-C3650-24PDM and WS-C3650-48FQM Typical: Noise emission for a typical configuration Maximum: Statistical maximum to account for variation in production
Storage Environment	Temperature: -40 to 158º F (-40 to 70º C) Altitude: 16,400 ft (5,000 m)
Vibration	Operating: 0.41Grms from 3 to 500Hz with spectral break points of 0.0005 G2/Hz at 10Hz and 200Hz 5dB/octave roll off at each end.
	Nonoperating: 1.12Grms from 3 to 500Hz with spectral break points of 0.0065 G2/Hz at 10Hz and 100Hz 5dB/octave roll off at each end.
Shock	Operating: 30G, 2ms half sine
	Nonoperating: 55G, 10ms trapezoid

Connectors for Cisco Catalyst 3650 Series

Table 9 shows connectors.

Table 9.          Connectors

Connectors and cabling

●  1000BASE-T ports: RJ-45 connectors, 4-pair Cat-5E UTP cabling ●  1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Cat-5E UTP cabling ●  100BASE-FX, 1000BASE-SX, -LX/LH, -ZX, -BX10, DWDM and CWDM SFP transceivers: LC fiber connectors (single-mode or multimode fiber) ●  10GBASE-SR, LR, LRM, CX1 (v02 or higher) SFP+ transceivers: LC fiber connectors (single-mode or multimode fiber) ●  Cisco StackWise-160 stacking ports: copper-based Cisco StackWise cabling ●  Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ●  Management console port: RJ-45-to-DB9 cable for PC connections

Power connectors

●  Customers can provide power to a switch by using the internal power. The connectors are located at the back of the switch ●  Internal power supply connector: The internal power supply is an auto-ranging unit. The internal power supply supports input voltages between 100 and 240VAC. Use the supplied AC power cord to connect the AC power connector to an AC power outlet

Management and Standards Support for Cisco Catalyst 3650 Series Switches

Table 10 shows management and standards support for the Cisco Catalyst 3650 Series.

Table 10.          Management and Standards Support for the Cisco Catalyst 3650 Series

Description	Specification
Management	BRIDGE-MIB CISCO-AUTH-FRAMEWORK-MIB CISCO-BGP4-MIB, BGP4-MIB CISCO-BRIDGE-EXT-MIB CISCO-BULK-FILE-MIB CISCO-CABLE-DIAG-MIB CISCO-CALLHOME-MIB CISCO-CEF-MIB CISCO-CIRCUIT-INTERFACE-MIB CISCO-ENTITY-VENDORTYPE-OID-MIB CISCO-CONTEXT-MAPPING-MIB CISCO-DEVICE-LOCATION-MIB CISCO-DHCP-SNOOPING-MIB CISCO-EIGRP-MIB CISCO-EMBEDDED-EVENT-MGR-MIB CISCO-ENTITY-FRU-CONTROL-MIB CISCO-ENTITY-SENSOR-MIB ENTITY-MIB CISCO-ERR-DISABLE-MIB CISCO-CONFIG-COPY-MIB CISCO-FLOW-MONITOR-MIB CISCO-FTP-CLIENT-MIB CISCO-HSRP-EXT-MIB CISCO-HSRP-MIB CISCO-IETF-ISIS-MIB CISCO-IF-EXTENSION-MIB CISCO-IGMP-FILTER-MIB CISCO-CONFIG-MAN-MIB CISCO-IP-CBR-METRICS-MIB CISCO-IPMROUTE-MIB CISCO-IP-STAT-MIB CISCO-IP-URPF-MIB CISCO-L2L3-INTERFACE-CONFIG-MIB CISCO-LAG-MIB CISCO-LICENSE-MGMT-MIB CISCO-MAC-AUTH-BYPASS-MIB CISCO-MAC-NOTIFICATION-MIB CISCO-MDI-METRICS-MIB CISCO-FLASH-MIB CISCO-OSPF-MIB CISCO-OSPF-TRAP-MIB CISCO-PAE-MIB CISCO-PAGP-MIB CISCO-PIM-MIB CISCO-PING-MIB CISCO-PORT-QOS-MIB CISCO-PORT-SECURITY-MIB CISCO-PORT-STORM-CONTROL-MIB CISCO-POWER-ETHERNET-EXT-MIB CISCO-PRIVATE-VLAN-MIB CISCO-PROCESS-MIB CISCO-PRODUCTS-MIB CISCO-RF-MIB CISCO-RTP-METRICS-MIB CISCO-RTTMON-MIB CISCO-SMART-INSTALL-MIB	CISCO-SNMP-TARGET-EXT-MIB CISCO-STACKMAKER-MIB CISCO-MEMORY-POOL-MIB CISCO-STP-EXTENSIONS-MIB CISCO-SYSLOG-MIB CISCO-TCP-MIB CISCO-UDLDP-MIB CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB CISCO-VLAN-MEMBERSHIP-MIB CISCO-VTP-MIB EtherLike-MIB HC-RMON-MIB IEEE8021-PAE-MIB IEEE8023-LAG-MIB IF-MIB IGMP-MIB IGMP-STD-MIB IP-FORWARD-MIB IP-MIB IPMROUTE-STD-MIB LLDP-EXT-MED-MIB LLDP-MIB NOTIFICATION-LOG-MIB OLD-CISCO-MEMORY-MIB CISCO-CDP-MIB POWER-ETHERNET-MIB RMON2-MIB RMON-MIB SNMP-COMMUNITY-MIB SNMP-FRAMEWORK-MIB SNMP-MPD-MIB SNMP-NOTIFICATION-MIB SNMP-PROXY-MIB SNMP-TARGET-MIB SNMP-USM-MIB SNMPv2-MIB SNMP-VIEW-BASED-ACM-MIB TCP-MIB UDP-MIB CISCO-IMAGE-MIB CISCO-STACKWISE-MIB AIRESPMACE-WIRELESS-MIB CISCO-LWAPP-IDS-MIB CISCO-LWAPP-AP-MIB CISCO-LWAPP-CCX-RM-MIB CISCO-LWAPP-CLIENT-ROAMING-MIB CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB CISCO-LWAPP-DOT11-CCX-CLIENT-MIB CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB CISCO-LWAPP-DOT11-CLIENT-MIB CISCO-LWAPP-DOT11-MIB CISCO-LWAPP-DOWNLOAD-MIB CISCO-LWAPP-LINKTEST-MIB CISCO-LWAPP-MFP-MIB CISCO-LWAPP-MOBILITY-EXT-MIB CISCO-LWAPP-QOS-MIB CISCO-LWAPP-REAP-MIB CISCO-LWAPP-ROGUE-MIB CISCO-LWAPP-RRM-MIB CISCO-LWAPP-SI-MIB CISCO-LWAPP-TSM-MIB CISCO-LWAPP-WLAN-MIB CISCO-LWAPP-WLAN-SECURITY-MIB
Standards	IEEE 802.1as IEEE 802.1s IEEE 802.1w IEEE 802.11 IEEE 802.1x IEEE 802.1x-Rev IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3bz IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.1D Spanning Tree Protocol IEEE 802.1p CoS prioritization IEEE 802.1Qat Stream Reservation Protocol IEEE 802.1Qav IEEE 802.1Q VLAN IEEE 802.3 10BASE-T specification IEEE 802.3u 100BASE-TX specification IEEE 802.3ab 1000BASE-T specification IEEE 802.3z 1000BASE-X specification	RMON I and II standards SNMPv1, SNMPv2c, and SNMPv3

Power Supply Specifications

Table 11 lists the power specifications for the Cisco Catalyst 3650 Series based on the kind of power supply used.

Table 11.          Power Specifications for Cisco Catalyst 3650 Series

Description	Specification
	PWR-C2-1025 WAC	PWR-C2-640 WAC	PWR-C2-250 WAC	PWR-C2-640 WDC	WS-C3650-24PDM/WS-C3650-48FQM Switches
Power Supply Rated Maximum	1025W	640W	250W	640W	975W
Total Output BTU (Note: 1000 BTU per hr = 293 W)	3497 BTU/hr, 1025W	2183 BTU/hr, 640W	853 BTU/hr, 250W	2188 BTU/hr, 640W	3326.8 BTU/hr, 975W
Input-Voltage Range and Frequency (Note: ±10% of “Input-Voltage Range”)	115-240VAC, 50-60 Hz	100-240VAC, 50-60 Hz	100-240VAC, 50-60 Hz	-36VDC to -72VDC	100-240VAC, 50-60 Hz
Input Current	12-6A	8-4A	4-2A	21 – 10.5 A	12-5A
Output Ratings	12V @ 20.83A -54V @ 14.6A	12V @ 20.83A -54V @ 7.36A	12V @ 20.83A	12V @ 20.83A -54V @ 7.36A	12V @ 16.66A -54V @ 14.3A
Output Holdup Time	10 ms minimum @ 102.5VAC	16.7 ms minimum @ 100VAC	16.7 ms minimum @ 100VAC	> 2ms@-48VDC	20 ms minimum @ 100VAC
Power-Supply Input Receptacles	IEC 320-C16 (IEC60320-C16)	IEC 320-C16 (IEC60320-C16)	IEC 320-C13 (IEC60320-C13)	Terminal strip	IEC 320-C16 (IEC60320-C16)
Power Cord Rating	13A	13A	10A	20A @ 100VDC	15A
Physical Specifications	(H x W x D): 1.58 X 3.75 X 13.25 in (4.0 x 9.5 x 33.7 cm) Weight: 3.55 lb (1.61 kg)	(H x W x D): 1.58 X 3.75 X 11.75 in (4.0 x 9.5 x 29.8 cm) Weight: 3.1 lb (1.41 kg)	(H x W x D): 1.58 X 3.75 X 11.75 in (4.0 x 9.5 x 29.8 cm) Weight: 2.55 lb (1.16 kg)	(H x W x D): 1.58 X 3.75 X 11.75 in (4.0 x 9.5 x 29.8 cm) Weight: 2.75 lb (1.25 kg)	N/A
Operating Temperature	For the operating temperature ranges at various altitudes of AC and DC power supply module powered switches, see Table 1.
Storage Temperature	-40 to 158°F (-40 to 70°C)
Relative Humidity Operating and Nonoperating Noncondensing	5 to 96% noncondensing				5 to 95% noncondensing
Altitude	16,400 ft. (5,000 meters)				10,000 ft. (3,000 meters)
MTBF	Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Issue 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level).
EMI and EMC Compliance	“AC OK”: Input power to the power supply is OK “PS OK”: Output power from the power supply is OK
Safety Compliance	For the operating temperature ranges at various altitudes of AC and DC power supply module powered switches, see Table 1.
LED Indicators	-40 to 158°F (-40 to 70°C)				N/A

Description	Specification
	PWR-C1-1100WAC	PWR-C1-715WAC
Power supply rated maximum	1100W	715W
Total output BTU (Note: 1000 BTU/hr = 293W)	3793 BTU/hr, 1100W	2465 BTU/hr, 715W
Input-voltage range and frequency	115-240VAC, 50-60 Hz	100-240VAC, 50-60 Hz
Input current	12-6A	10-5A
Output ratings	-56V at 19.64A	-56V at 12.8A
Output holdup time	10 ms minimum at 102.5VAC	16.7 ms minimum at 100VAC
Power-supply input receptacles	IEC 320-C16 (IEC60320-C16)	IEC 320-C16 (IEC60320-C16)
Power cord rating	13A	13A
Physical specifications	(H x W x D): 1.58 X 3.25 X 13.7 in Weight: 3 lb (1.4 kg)	(H x W x D): 1.58 X 3.25 X 12.20 in Weight: 2.8 lb (1.3 kg)
Operating temperature	23 to 113°F (-5 to 45°C)
Storage temperature	-40 to 158°F (-40 to 70°C)
Relative humidity operating and nonoperating noncondensing	5 to 90% noncondensing
Altitude	10,000 ft. (3000 meters), up to 45°C
MTBF	Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is 500,000 hr (with 90% confidence level).
EMI and EMC compliance	FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55022 Class A CISPR 22 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 50082-1, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1
Safety compliance	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CCC, CE Marking
LED indicators	“AC OK”: Input power to the power supply is OK “PS OK”: Output power from the power supply is OK

Power Consumption of Standalone Cisco Catalyst 3650 Series Switches

Table 12 shows the power consumption of standalone Cisco Catalyst 3650 Series Switchals based on Alliance for Telecommunications Industry Solutions (ATIS) testing using IMIX distribution flow traffic, with an input voltage of 115VAC @ 60 Hz, Energy Efficient Ethernet (EEE) enabled, and no PoE loading. The values ​​given are the figures for the maximum power consumption possible in each test scenario.

Table 12.       Power Consumptions (in Watts) of Standalone Cisco Catalyst 3650 Series

Model	Fixed Uplink	Power Consumption (Watts) (No More Than)
		0% Traffic	10% Traffic	100% Traffic	Weighted Average
WS-C3650-24TS	4 x Gigabit Ethernet with Small Form-Factor Pluggable (SFP)	43.9	56.4	57.1	55.21
WS-C3650-48TS		61.1	85.1	86.4	82.85
WS-C3650-24PS		53.8	65.3	65.9	64.18
WS-C3650-48PS		81.4	98.7	99.5	97.09
WS-C3650-48FS		90.8	108.7	109.4	106.98
WS-C3650-24TD	2 x 10 Gigabit Ethernet with SFP+ and 2 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP	54.0	60.8	63.0	60.35
WS-C3650-48TD		73.3	90.9	93.9	89.40
WS-C3650-24PD		61.1	68.3	70.1	67.75
WS-C3650-24PDM		63.8	72.3	76.2	71.9
WS-C3650-48PD		80.3	99.1	101.5	97.45
WS-C3650-48FD		88.8	106.5	109.4	105.03
WS-C3650-8X24PD		103	107.8	111.5	107.7
WS-C3650-12X48FD		158.7	168.6	172.7	168
WS-C3650-48TQ	4 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP	73.0	91.9	96.7	90.47
WS-C3650-48PQ		86.4	103.4	107.4	102.10
WS-C3650-48FQ		96.6	116.2	120.5	114.69
WS-C3650-48FQM		74.1	89.2	95.8	88.4
WS-C3650-8X24UQ		110.0	115.3	123.3	115.6
WS-C3650-12X48UQ		170.4	179.9	186.6	179.7
WS-C3650-12X48UR	8 x 10 Gigabit Ethernet with SFP+ or 8 x Gigabit Ethernet with SFP	174.5	184.9	195.7	184.9
WS-C3650-12X48UZ	2 x 40 Gigabit Ethernet with Quad Small Form-Factor Pluggable+ (QSFP+)	162.4	173.7	184.0	173.6

Safety and Compliance

Table 13 lists the safety and compliance information for the Cisco Catalyst 3650 Series.

Table 13.       Safety and Compliance Information for Cisco Catalyst 3650 Series

Description	Specification
Safety Certifications	UL 60950-1 Second Edition CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition IEC 60950-1 Second Edition GOST NOM (obtained)
Electromagnetic Emissions Certifications	47CFR Part 15 (CFR 47) Class A (FCC Part 15 Class A) AS/NZS CISPR22 Class A CISPR22 Class A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A KCC CNS13438 Class A EN55024 CISPR24 KN24
Environmental	Reduction of Hazardous Substances (ROHS) 5
Noise Specifications	Office Product Spec: 48dBA at 25°C (refer to ISO 7779)
Telco	Common Language Equipment Identifier (CLEI) Code

Compare models, or try the Cisco Switch Selector by Cisco Jakarta to find the best switch for your needs.

Catalyst 3650-12X48UR

• 8 x 10 Gigabit Ethernet with SFP + uplinks
• 48 UPOE ports
• 1100 WAC default AC power supply
• Supports Cisco Catalyst Multitgigabit technology
• Enhanced Limited Lifetime Warranty (E-LLW)

Catalyst 3650-12X48UQ

• 4 x 10 Gigabit Ethernet with SFP + uplinks
• 48 UPOE ports
• 1100 WAC default AC power supply
• Supports Catalyst Multitgigabit technology
• Enhanced Limited Lifetime Warranty (E-LLW)

Catalyst 3650-12X48UZ

• 2 x 40 Gigabit Ethernet with QSFP + Uplinks
• 48 UPOE ports
• 1100 WAC default AC power supply
• Supports Catalyst Multitgigabit technology
• Enhanced Limited Lifetime Warranty (E-LLW)

Catalyst 3650-48FQM

• 48 10M / 100M / 1000M ports
• 12-in. deep mini switch for tight spaces
• Quiet, ideal for office areas
• Fixed fans and fixed power supplies
• Enhanced Limited Lifetime Warranty (E-LLW)

Catalyst 3650-8X24UQ

• 4 x 10 Gigabit Ethernet with SFP + uplinks
• 24 UPOE ports
• 1100 WAC default AC power supply
• Supports Catalyst Multitgigabit technology
• Enhanced Limited Lifetime Warranty (E-LLW)

Catalyst 3650-24PDM

• 2 x 10 Gigabit Ethernet with SFP + uplinks
• 24 POE + ports
• Fixed 640 WAC default AC power supply
• 390W available PoE power
• Enhanced Limited Lifetime Warranty (E-LLW)

Catalyst 3650-48FQ

• 4 x 10 Gigabit Ethernet with SFP + uplinks
• 48 PoE + ports
• 1025 WAC default AC power supply
• 775W available PoE power
• Enhanced Limited Lifetime Warranty (E-LLW)

Catalyst 3650-24PD

• 2 x 10 Gigabit Ethernet with SFP + uplinks
• 24 PoE + ports
• 640 WAC default AC power supply
• 390W available PoE power
• Enhanced Limited Lifetime Warranty (E-LLW)

Integrated wireless controller capabilities with:

1. Up to 40G wireless capacity per switch (48-port model).
2. Supports up to 50 access points and 1000 wireless clients on each switching entity (switch or stack).

• 24 and 48 10/100/1000 data and PoE + models with energy efficient Ethernet (EEE) ports.
• 24 and 48 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps (multigigabit) Cisco UPOE and PoE + models with EEE.
• Five fixed-uplink models with four Gigabit Ethernet, two 10 Gigabit Ethernet, four 10 Gigabit Ethernet, eight 10 Gigabit Ethernet, or two 40 Gigabit Ethernet Quad Small Form-Factor Pluggable Plus (QSFP +) ports.
• 24-port and 48-port 10/100/1000 PoE + models with lower noise and 11.62 inches lower depth for shallow-depth cabinets in corporate, retail and branch environments.
• Optional Cisco StackWise-160 technology that provides scalability and robustness with 160 Gbps stack throughput.
• Dual redundant, modular power supplies and three modular fans provide redundancy.
• Support for RPS 2300 external power system on 3650 SKU mini for power redundancy.
• Full IEEE 802.3at (PoE +) with 30W of power on all ports in 1 form rack unit (RU) form factor.
• Cisco UPOE at 60W per port in 1 rack unit (RU) form factor.
• IEEE 802.3bz (2.5GBASE-T and 5GBASE-T) exceeds 1 Gbps with Category 5e and Category 6 in place.
• IEEE 802.1ba Audio Video Bridging (AVB) is integrated to provide a better AV experience, including improved time synchronization and quality of service (QoS).
• Software support for IPv4 and IPv6 routing, multicast routing, modular QoS, Flexible NetFlow (FNF) Version 9, and enhanced security features.
• A single universal Cisco IOS® Software Image across all license levels, providing an easy upgrade path for software features.
• Limited lifetime warranty (E-LLW) upgrade with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support.

• All Cisco Catalyst 3650 Series Switches have refurbished, built-in uplink ports and shipped with one power supply. Tables 1 through 5 provide further details. Figure 1 is a picture of Cisco Catalyst 3650 Series Switches by Cisco Jakarta.



  Table 1 shows the Cisco Catalyst 3650 Series configurations.

  Table 1.          Cisco Catalyst 3650 Series Configurations

  Models	Fixed Uplinks	Total 10/100/1000 Ethernet Ports	Default AC Power Supply	Available PoE Power
  WS-C3650-24TS	4 x Gigabit Ethernet with Small Form‑Factor Pluggable (SFP)	24	250 WAC	–
  WS-C3650-48TS		48
  WS-C3650-24PS		24 PoE+	640 WAC	390 W
  WS-C3650-48PS		48 PoE+
  WS-C3650-48FS		48 PoE+	1025 WAC	775 W
  WS-C3650-24TD	2 x 10 Gigabit Ethernet with SFP+ and 2 x 1 Gigabit Ethernet with SFP	24	250 WAC
  WS-C3650-48TD		48
  WS-C3650-24PD		24 PoE+	640 WAC	390 W
  WS-C3650-24PDM		24 PoE+	Fixed 640 WAC	390 W
  WS-C3650-48PD		48 PoE+	640 WAC	390 W
  WS-C3650-48FD		48 PoE+	1025 WAC	775 W
  WS-C3650-8X24PD		24 PoE+ (with 8 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports)	715 WAC	435 W
  WS-C3650-12X48FD		48 PoE+ (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports)	1100 WAC	660 W
  WS-C3650-48TQ	4 x 10 Gigabit Ethernet with SFP+ or 4 x Gigabit Ethernet with SFP	48	250 WAC
  WS-C3650-48PQ		48 PoE+	640 WAC	390 W
  WS-C3650-48FQ		48 PoE+	1025 WAC	775 W
  WS-C3650-48FQM		48 PoE+	Fixed 975 WAC	775 W
  WS-C3650-8X24UQ		24 UPOE (with 8 100-Mbps and 1‑, 2.5-, 5-, and 10-Gbps ports)	1100 WAC	820 W
  WS-C3650-12X48UQ		48 UPOE (with 12 100-Mbps and 1‑, 2.5-, 5-, and 10-Gbps ports)	1100 WAC	660 W
  WS-C3650-12X48UR	8 x 10 Gigabit Ethernet with SFP+ or 8 x Gigabit Ethernet with SFP	48 UPOE (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports)	1100 WAC	660 W
  WS-C3650-12X48UZ	2 x 40 Gigabit Ethernet with QSFP+	48 UPOE (with 12 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps ports)	1100 WAC	660 W

  Fixed Uplinks

  All Cisco Catalyst 3650 Series Switches have fixed, built-in uplink ports. Customers can choose from five types of uplink ports at the time of the switch purchase:

  • Four Gigabit Ethernet with Small Form-Factor Pluggable (SFP)
  • Two 10 Gigabit Ethernet with SFP + and two 10 Gigabit Ethernet with SFP or four Gigabit Ethernet with SFP
  • Four 10 Gigabit Ethernet with SFP + or four Gigabit Ethernet with SFP
  • Eight 10 Gigabit Ethernet with SFP + or eight Gigabit Ethernet with SFP
  • Two 40 Gigabit Ethernet with QSFP

  The SFP + interface supports 10 Gigabit Ethernet and Gigabit Ethernet ports. See Table 1 for a description of the basic switch model and the corresponding uplink port. See Table 2 for a description of the various uplink port interface options.

  Table 2.          1 and 10 Gigabit Fixed Uplink Configurations

  	Interface Options
  Fixed Uplink Ports	10 Gigabit Ethernet SFP+ Ports	Gigabit Ethernet SFP Ports
  4 x Gigabit Ethernet fixed uplink ports	0	4
  4 x Gigabit Ethernet or 2 x 10 and 2 x 1 Gigabit Ethernet fixed uplink ports	2	0
  	0	4
  	2	2
  4 x Gigabit Ethernet and 4 x 10 Gigabit Ethernet fixed uplink ports	4	0
  	0	4
  	2	2
  	3	1
  	1	3
  8 x Gigabit Ethernet or 8 x 10 Gigabit Ethernet fixed uplink ports	8	0
  	0	8
  	Any combination of 10 Gigabit Ethernet and remaining 1 Gigabit Ethernet uplink ports

  Dual Redundant Modular Power Supplies and External RPS2300

  Cisco Catalyst 3650 Series Switches support dual redundant power supplies (see Figure 2). Switches are shipped with one power supply by default, and a second supply can be purchased at the time of ordering the switch or at a later time. If only one power supply is installed, the power supply must always be in power supply 1. This switch also ships with three field replaceable fans.



  Table 3 shows the different power supplies available on this switch and the PoE power available.

  Table 3.          Switch Models and Corresponding Default Power Supplies

  Models	Default Power Supply	Available PoE Power	Support Secondary Power Supply
  24-port data switch	PWR-C2-250WAC	–	Yes
  48-port data switch			Yes
  24-port PoE switch	PWR-C2-640WAC	390 W	Yes
  48-port PoE switch			Yes
  48-port full PoE switch	PWR-C2-1025WAC	775 W	Yes
  24-port mini PoE switch	Fixed 640 WAC	390W	No, but supports RPS 2300
  48-port mini PoE switch	Fixed 975 WAC	775W	No, but supports RPS 2300
  24-port Multigigabit PoE switch	PWR-C1-715WAC	435 W	Yes
  24-port Multigigabit UPOE switch	PWR-C1-1100WAC	820 W	Yes
  48-port Multigigabit full PoE switch
  48-port Multigigabit UPOE switch		660 W	Yes

  Sakelar multigigabit mendukung rangkaian catu daya yang berbeda dari sakelar non-multigigabit. Selain itu PWR-C1-350WAC tidak didukung pada sakelar multigigabit. Selain catu daya yang tercantum dalam Tabel 3, catu daya DC 640W tersedia pada saat pemesanan atau sebagai cadangan pada semua model sakelar non-multigigabit. Catu daya DC juga memberikan kemampuan PoE untuk fleksibilitas maksimum (lihat Tabel 4 untuk anggaran PoE yang tersedia dengan catu daya DC). Pelanggan dapat mencampur dan mencocokkan catu daya AC dan DC di dua slot catu daya yang tersedia. Catu daya ini dapat dipasang di salah satu sakelar.

  Table 4.          Available PoE with DC Power Supply

  Model	Number of DC Power Supplies	Total Available PoE Budget
  24-port or 48-port PoE Switch (non-multigigabit)	1	390 W
  	2	780 W
  24-port PoE Switch (Multigigabit)	1	160 W
  	2	600 W
  48-port PoE Switch (Multigigabit)	1	0 W
  	2	440 W

  Power over Ethernet Plus (PoE+)

  Cisco Catalyst 3650 Series Switches mendukung PoE (IEEE 802.3af) dan PoE + (standar IEEE 802.3at), yang menyediakan daya hingga 30 W per port. PoE menghilangkan kebutuhan daya dinding untuk setiap perangkat yang mendukung PoE dan menghilangkan biaya untuk pemasangan kabel dan sirkuit listrik tambahan yang jika tidak akan diperlukan dalam penggunaan telepon IP dan WLAN. Seri 3650 dapat menyediakan TCO yang lebih rendah untuk penggunaan yang menggabungkan telepon IP Cisco, titik akses LAN nirkabel Cisco Aironet®, atau perangkat akhir yang sesuai dengan IEEE 802.3at. Tabel 5 menunjukkan kombinasi catu daya yang diperlukan untuk berbagai kebutuhan PoE.

  Table 5.          Minimum Power Supply Requirements for Full PoE and PoE+

  	24-Port PoE Switch	48-Port PoE Switch
  PoE on All Ports (15.4 W per port)	One PWR-C2-640 WAC	One PWR-C2-1025WAC or Two PWR-C2-640 WAC
  PoE+ on All Ports (30 W per port)	One PWR-C2-1025WAC or Two PWR-C2-640 WAC	Two PWR-C2-1025 WAC

  Cisco Universal Power over Ethernet (Cisco UPOE)

  Cisco UPOE is a breakthrough technology, offering the following services and benefits:

  • 60W per port to enable various end devices such as Samsung VDI clients, BT IP turret systems on the trading floor, Cisco Catalyst compact switches in retail and hospitality environments, personal Cisco TelePresence® systems, and physical access control devices.
  • High availability for power and guaranteed uninterrupted service, a requirement for critical
    applications (e911).
  • Downsize the OpEx by providing network durability at a lower cost by combining spare power into a wiring cabinet.
  • Faster installation of the new campus access network infrastructure by eliminating the need for power outlets for each endpoint.

  Cisco UPOE capability is only available on certain multigigabit models.

  Table 6 shows the power supply requirements for Cisco UPOE.

  Table 6.          Power Supply Requirements for Cisco UPOE

  	24-Port Multigigabit Cisco UPOE Switch	48-Port Multigigabit Cisco UPOE Switch
  Cisco UPOE (60W per port) on all (24-port switch) or max. 29 ports (48-port switch)	One 1100W and one 715W power supplies or two 1100W power supplies

  Cisco Catalyst Multigigabit Technology

  Cisco Multigigabit Ethernet adalah inovasi unik untuk sakelar akses Cisco Catalyst Ethernet baru. Dengan pertumbuhan 802.11ac yang luar biasa dan aplikasi nirkabel baru, perangkat nirkabel mempromosikan permintaan bandwidth jaringan yang lebih besar. Ini menciptakan kebutuhan akan teknologi yang mendukung kecepatan lebih tinggi dari 1 Gbps pada semua infrastruktur kabel. Teknologi multigigabit Cisco memungkinkan Anda untuk mencapai kecepatan bandwidth dari 1 Gbps hingga 10 Gbps melalui pemasangan kabel Category 5e (Cat 5e) tradisional atau lebih. Selain itu, port multigigabit pada sakelar Cisco Catalyst tertentu mendukung Cisco UPOE, yang semakin penting untuk ruang kerja generasi berikutnya dan ekosistem Internet of Things (IoT).

  Teknologi multigigabit Cisco menawarkan manfaat signifikan untuk beragam kecepatan, tipe kabel, dan daya PoE. Manfaat dapat dikelompokkan ke dalam tiga area berbeda:

  • Kecepatan ganda: Teknologi Cisco Catalyst Multigigabit mendukung negosiasi ulang otomatis beberapa kecepatan pada port switch. Kecepatan yang didukung adalah 100 Mbps, 1 Gbps, 2.5 Gbps, dan 5 Gbps pada kabel Cat 5e dan hingga 10 Gbps pada kabel Cat 6a.
  • Jenis kabel: Teknologi ini mendukung berbagai jenis kabel, termasuk Cat 5e, Cat 6, dan Cat 6a atau lebih tinggi.
  • Daya PoE: Teknologi ini mendukung PoE, PoE +, dan Cisco UPOE untuk semua kecepatan dan tipe kabel yang didukung.

  Cisco Catalyst 3650 Mini Switches

  Cisco Catalyst 3650 Series menambahkan sakelar mini baru ke sekumpulan sakelar 3650 yang ada. Sakelar ini memiliki kedalaman kurang dari 12 ”dan lebih tenang dari sakelar 3650 yang ada, membuatnya sempurna untuk dipasang di kabinet berkabel ketat, rak, atau ruang pengguna di mana kedalaman sakelar menjadi perhatian. Anda dapat menghindari mengganti kabinet atau memasang sakelar secara miring dan akibatnya mengurangi waktu henti untuk jaringan.

  Switch-switch ini memungkinkan penegakan kebijakan kabel-nirkabel yang seragam, visibilitas aplikasi, fleksibilitas, optimalisasi aplikasi, dan ketahanan superior seperti 3650 switch yang ada. Mereka datang dalam 24-dan 48-port 10M / 100M / 1000M SKU switch (WS-C3650-24PDM dan WS-C3650-48FQM) dan mendukung semua fitur yang sama seperti switch 3650 yang ada kecuali mereka datang dengan kipas tetap, daya tetap persediaan, dan dukungan untuk RPS2300 eksternal untuk redundansi.

  Switch PoE ini mendukung PoE (IEEE 802.3af) dan PoE + (standar IEEE 802.3at), memberikan daya hingga 30W untuk 12 port dengan total 390W pada model 24-port dan daya hingga 30W untuk 24 port untuk total 775W pada model 48-port. Switch 24-port memiliki uplink 2×1 Gigabit Ethernet SFP dan 2×10 Gigabit Ethernet SFP +; sakelar 48-port memiliki uplink 4×10 Gigabit Ethernet SFP + untuk mendukung aplikasi bandwidth tinggi. Switch ini mendukung penumpukan dan dapat menumpuk satu sama lain atau 3650 switch yang ada menggunakan teknologi Cisco StackWise-160 yang sama. 3650 mini dan 3650 menggunakan perangkat lunak yang sama dan dengan demikian dapat digunakan dan dikelola menggunakan kebijakan, konfigurasi yang sama, dan seterusnya seperti 3650 yang ada. Beberapa kasus penggunaan untuk mini 3650 adalah sebagai berikut:

  Kantor Kecil dan Cabang

  Banyak cabang kecil dan kantor satelit di mana ada beberapa karyawan tidak memiliki lemari kabel yang lebih besar karena keterbatasan ruang. Kantor tipikal seperti ini memiliki kabinet yang lebih kecil dan akan membutuhkan saklar yang dapat melayani beberapa karyawan, memberikan dukungan PoE, dapat mengelola jaringan kabel-nirkabel, dan menerapkan kebijakan yang konsisten sama dengan cabang atau kantor yang lebih besar. Karena kedalamannya kurang dari 12 “, kebisingan yang lebih rendah, dan dukungan untuk uplink 10G bersama dengan susun, keamanan canggih, dan konvergensi kabel-nirkabel, mini 3650 adalah saklar yang sempurna untuk jenis ruang ini.

  pendidikan

  Switch mini 3650 memperluas akses ke lab, ruang kelas, dan ruang pelatihan lainnya dari ruang distribusi pusat / lantai, mengurangi biaya pemasangan kabel dan memberikan kualitas layanan yang unggul dengan keamanan yang ditingkatkan, konvergensi kabel-nirkabel, dan fitur jaringan perusahaan. Karena kedalamannya yang dangkal dan kebisingan yang lebih rendah, sakelar ini cocok untuk ruang kelas atau area terbatas.

  Eceran

  Outlet ritel yang khas perlu melayani pelanggan di beberapa titik penjualan, masing-masing dengan mesin POS, titik akses, telepon, printer, tampilan video dengan jaringan, dan beberapa tenaga PoE. Outlet ritel ini terhubung ke router akses yang menghubungkannya ke jaringan luar dan biasanya membutuhkan sakelar yang sesuai dengan kabinet dengan kedalaman yang dangkal. Karena kedalaman switch 12 ”bersama dengan fitur keamanan dan jaringan yang canggih, mereka dapat membantu pengecer secara efisien memanfaatkan ruang dan menghemat biaya real estat.

• Convergent Wired and Wireless AccessThe Cisco Catalyst 3650 Series is a standalone and stackable access switching platform that enables wired plus wireless services on a single platform based on the Cisco IOS XE Software. With this, Cisco has pioneered a number of rich capabilities such as high availability based on stateful switchover (SSO) on stack, granular QoS, security, and Flexible NetFlow (FNF) across wired and wireless in a seamless manner. Additionally, the wired plus wireless feature is bundled into a single Cisco IOS Software image, which reduces the number of software images a user must qualify / certify before enabling it on their network. A single console port for command line interface (CLI) management reduces the number of touch points managed for wired plus wireless services, thereby reducing network complexity,Converged wired plus wireless not only increases wireless bandwidth across the network but also scales wireless deployments. Each 48-port Cisco Catalyst 3650 provides 40 Gbps of wireless throughput (20 Gbps on the 24-port model). This wireless capacity increases with the number of members in the stack. This ensures that the network can scale to current wireless bandwidth requirements, as defined by IEEE 802.11n-based access points and by future wireless standards such as IEEE 802.11ac. In addition, the Cisco Catalyst 3650 distributes wireless controller functions to achieve better scalability. Each Cisco Catalyst 3650 switch / stack can operate as a wireless controller in two modes:
  • Mobility Agent (MA) : This is the default mode that the Cisco Catalyst 3650 uses to deliver. In this mode the switch is capable of terminating the CAPWAP tunnel from the access point and providing wireless connectivity to wireless clients. Maintaining a wireless client database and configuring and enforcing security policies and QoS for wireless clients and access points can be enforced in this mode. No additional licenses on top of the Base IP are required to operate in mobility agent mode.
  • Mobility controller (MC): In this mode, a Cisco Catalyst 3650 switch can perform all mobility agent tasks other than mobility coordination, radio resource management (RRM), and Cisco CleanAir® coordination within the mobility subdomain. Mobility controller mode can be activated on the CLI switch. The Base IP license tier is required when a Cisco Catalyst 3650 switch acts as a mobility controller. The centrally located Cisco 5508 Wireless LAN Controller (WLC 5508), Cisco Wireless Services Module 2 (WiSM2) (when running AireOS Version 7.3), and the Wireless LAN Controller 5760 can also perform this role for larger deployments.

  With a mobility agent located in a wired cabinet providing 40 Gbps of wireless per switch (nx 40 Gbps for a stack of n switches) and a mobility controller managing multiple central wireless functions, converged access based wireless deployments provide best in class scalability for wireless and throughput. significantly improved wireless.



  Intelligent Services Cisco Jakarta

  Flexible NetFlow (FNF)

  Full visibility into wired plus wireless traffic is achieved due to access point control and provision of a wireless access point (CAPWAP) on the switch. It helps identify users and user traffic flows to identify potential attackers and take corrective action at the access layer before attacks penetrate further into the network. This is achieved using FNF, which monitors every flow entering and leaving the switch stack for both wired and wireless users. It also helps identify top wired / wireless speakers and enforces appropriate bandwidth provision policies.

  QoS

  The Switch 3650 has advanced wired plus wireless QoS capabilities. It uses the Cisco modular QoS command line interface (MQC). The switch manages wireless bandwidth using unprecedented hierarchical bandwidth management starting at the per-access-point level and further down the per-radio, per-service set identification (SSID), and per-user rates. This helps manage and prioritize the available bandwidth between various radios and various SSIDs (corporate, guest, etc.) within each radio by percentage.

  This switch is also capable of automatically allocating the same bandwidth among connected users within a given SSID. This ensures that all users within a given SSID get a fair share of the available bandwidth while connected to the network. UADP ASIC allows hierarchical bandwidth management and fair bandwidth sharing, thus providing hardware-based QoS for optimized performance at line-level traffic.

  In addition to these capabilities, switches can perform class of service (CoS) or differentiated service code points (DSCP) based on queuing, policing, shaping, and tagging of wired plus wireless traffic. This allows users to create general policies that can be used for wired plus wireless traffic. The 3650 also supports policy names which can be downloaded from the Cisco Identity Services Engine (ISE) when the user successfully authenticates to the network using ISE.

  Security

  The Cisco Catalyst 3650 provides a rich set of security features for wired plus wireless users. Features like IEEE 802.1x, Snooping Dynamic Host Configuration Protocol (DHCP), IP Source Guard and aircraft protection controls, wireless intrusion prevention system (WIPS), and so on allow protection against unauthorized users and attackers. With multiple wired and wireless users connected to the network, the switch supports session-aware networking, where each device connected to the network is identified as a single session, and unique access control lists (ACLs) and / or QoS policies can be defined and enforced using ISE. for each of these sessions, provides better control over network-connected devices.

  Resiliency

  Cisco StackWise-160 technology

  The Cisco Jakarta Cisco Catalyst 3650 supports an optional stacking module based on Cisco StackWise-160 technology. Cisco StackWise-160 technology builds on the hugely successful industry-leading StackWise technology, which is a premium stacking architecture. StackWise-160 has a stack bandwidth of 160 Gbps. StackWise – 160 uses the Cisco IOS Software SSO to provide robustness in the stack. The stack behaves as a single switching unit managed by an “active” switch selected by the member switch. The active switch automatically selects the standby switch in the stack. The active switch creates and updates all switching / routing / wireless information and syncs that information continuously with the standby switch.

  If the active switch fails, the standby switch assumes the role of the active switch and continues to run the stack. The access point remains connected during the active to standby transition. A working stack can accept new members or delete old ones without service interruption. The Wise-160 Stack creates a single, powerful integrated system of up to nine switches, providing simplified management using a single IP address, single Telnet session, single CLI, automatic version checking, automatic upgrades, auto upgrades, automatic configuration, and more. The StackWise-160 also enables local switching on the Cisco Catalyst 3650 Series Switches. (See Figure 4.)



  At the heart of the Cisco Catalyst 3650 is the UADP ASIC with programmability for future features and intelligence with investment protection. The new ASIC provides the foundation for converged APIs across wired and wireless, Cisco Open Network Environment, software defined network readiness (SDN) and OnePK SDK via software updates over the life of the product.

  Software Features and Services on Cisco Catalyst 3650 Series Switches by Cisco Jakarta

  The software services supported on the Cisco Catalyst 3650 Series Switches can be classified into five broad categories:

  • Ease of operation
  • Advanced security features
  • Excitement
  • Application visibility and control
  • Audio Video Bridging (AVB)

  Ease of Operation

  The Cisco Catalyst 3650 helps reduce operating costs:

  • Cisco Catalyst Intelligent Operation
  • Easy-to-use deployment and control features
  • Efficient switch operation
  • Network management tool

  Cisco Catalyst Smart Operations

  Cisco Catalyst Smart Operations is a comprehensive suite of capabilities that simplifies LAN deployment, configuration and troubleshooting. In addition to adaptive and always-on technologies such as the StackWise-160, Cisco Catalyst Smart Operations enables touch-free installation and switch changes, fast upgrades, and easy troubleshooting with reduced operating costs. Cisco Catalyst Smart Operations is a feature set that includes Smart Installation, Auto Smartports, Smart Configuration, and Smart Troubleshooting to increase operational excellence:

  • Cisco Smart Install is a transparent plug-and-play technology for configuring Cisco IOS Software images and changing configurations without user intervention. Smart Install uses dynamic IP address allocation and other switch assistance to facilitate installation, providing transparent network plug and play.
  • Cisco Auto Smartports provides automatic configuration when a device is connected to a switch port, enabling automatic detection and plug and play of devices to the network.
  • Cisco Smart Troubleshooting is a broad set of debug diagnostic commands and system health checks in a switch, including Generic Online Diagnostics (GOLD) and Onboard Failure Logging (OBFL).
  • The Embedded Event Manager (EEM) is a powerful and flexible feature that provides real-time network event detection and onboard automation. Using EEM, customers can customize the behavior of their network devices to suit their business needs. This feature requires the IP Base feature set.

  Easy-to-Use Deployment and Control Features

  • User experience:
  1. IP service level agreements (SLA) enable customers to ensure new business-critical IP applications, as well as IP services that utilize data, voice, and video, in an IP network. This feature requires the IP Service feature set.
  2. DHCP automatic configuration of multiple switches via the boot server simplifies switch deployment.
  3. Automatic QoS (AutoQoS) simplifies QoS configuration in a voice over IP (VoIP) network by issuing interface and global switch commands to detect Cisco IP phones, classify traffic, and help activate outgoing queue configurations.
  4. Auto-negotiation on all ports automatically selects half or full duplex transmission mode to optimize bandwidth.
  5. Media dependent interface crossover (MDIX) automatically adjusts for sending and receiving pairs if the wrong type of cable (crossover or straight through) is installed.
  • Simplified configuration and connectivity:
  1. Dynamic Trunking Protocol (DTP) facilitates dynamic trunk configuration across all switch ports.
  2. Port Aggregation Protocol (PAgP) automates the creation of Cisco Fast EtherChannel groups or Gigabit EtherChannel groups for linking to other switches, routers, or servers.
  3. Link Aggregation Control Protocol (LACP) allows the creation of Ethernet channels with IEEE 802.3ad compliant devices. This feature is similar to Cisco EtherChannel and PAgP technologies.
  4. Unidirectional Link Detection Protocols (UDLD) and aggressive UDLDs allow unidirectional links caused by faulty fiber optic cables or port errors to be detected and deactivated on fiber optic interfaces.
  5. Cisco VLAN Trunking Protocol (VTP) Version 3 supports dynamic VLAN and dynamic trunk configuration across all switches.
  • Efficient switch operation:
  1. Switching database manager (SDM) templates, VLAN templates (specific to LAN Base license level), and advanced templates allows administrators to automatically optimize addressable addressable memory (TCAM) memory allocation to desired features based on usage-specific requirements.
  2. The local Proxy Address Resolution (ARP) protocol works in conjunction with the edge of the private VLAN to minimize broadcasts and maximize available bandwidth.
  3. Stack master configuration management with Cisco StackWise-160 technology helps ensure that all switches are upgraded automatically when the master switch receives a new software version. Automatic software version checking and updating helps ensure that all members of the stack have the same software version.
  4. Trivial File Transfer Protocol (TFTP) reduces software upgrade administrative costs by downloading from a centralized location.
  5. Network Timing Protocol (NTP) provides accurate and consistent timestamps for all intranet switches.
  • Multicast:
  1. Optimized multicast for wired plus wireless: The Cisco Catalyst 3650 offers greater multicast efficiency by receiving only one multicast stream and doubling it for all connected wired plus wireless devices connected to that switch.
  2. Internet Group Management Protocol (IGMP) v1, v2, v3 snooping for IPv4: multicast listener discovery (MLD) v1 and v2 snooping provide fast client connections and multicast streams and limit bandwidth intensive video traffic to requesters only.
  • Monitoring:
  1. Remote Switch Port Analyzer (RSPAN) allows administrators to remotely monitor ports in a Layer 2 switch network from other switches on the same network.
  2. For enhanced traffic management, monitoring and analysis, the Embedded Remote Monitoring (RMON) software agent supports four RMON groups (history, statistics, alarms and events).
  3. Layer 2 traceroute makes troubleshooting easier by identifying the physical path that packets take from source to destination.
  4. Wireless RF management provides real-time and historical information about RF interference affecting network performance across controllers using system-wide integration of Cisco CleanAir technology.

  Efficient Switch Operation

  Cisco Catalyst 3650 Series Switches, designed and engineered by Cisco, provide optimal power-saving, EEE, and low-power operation for best-in-class power management and power consumption capabilities. The Cisco Catalyst 3650 port is capable of reducing power modes so that unused ports can switch to a lower power utilization state. Other efficient switch operation features are:

  • Cisco Discovery Protocol Version 2 allows Cisco Catalyst 3650 Series Switches to negotiate more granular power settings when connecting to Cisco powered devices such as IP phones or access points than what the IEEE classification provides.
  • The per-port power consumption command allows the customer to specify the maximum power setting for each port. The per-port PoE power sensing measures the actual power drawn, allowing smarter control of powered devices.
  • The PoE MIB provides proactive visibility into power usage and allows the customer to set different power level thresholds.

  Responsible for the environment

  Organizations can choose to turn off access point radios to reduce power consumption during peak hours. The integrated wireless LAN controller avoids spreading additional devices in the network.

  Network Management Tools

  The Cisco Catalyst 3650 Series Switches offer a superior CLI for detailed configuration and Cisco Prime ™ infrastructure for unified wired plus wireless management. The Cisco Prime infrastructure provides 0 day and continuous provisioning, continuous monitoring and maintenance, configuration templates, and 360 degree device and user views and serves as an FNF collector for user traffic views using the Cisco Prime Assurance Manager module.

  Advanced Security Features

  Cisco Catalyst 3650 Series Switches support advanced security features including but not limited to:

  • Protection against attackers:
  1. Port security secures access to trunk ports or access based on MAC addresses. This limits the number of MAC addresses learned to resist MAC address flooding.
  2. DHCP snooping prevents malicious users from spoofing the DHCP server and sending fake addresses. This feature is used by other major security features to prevent a number of other attacks such as ARP poisoning.
  3. Dynamic ARP inspection (DAI) helps ensure user integrity by preventing malicious users from exploiting ARP’s insecurities.
  4. IP source guard prevents malicious users from spoofing or taking over other users’ IP addresses by creating a binding table between the client’s IP, MAC address, port, and VLAN.
  5. The Unicast Reverse Path Forwarding (RPF) feature helps reduce problems caused by the introduction of a malformed or fake (fake) IP source address into the network by removing IP packets that do not have a verifiable source IP address.
  6. Two-way data support on the SPAN port allows Cisco intrusion detection system (IDS) to take action when an intruder is detected.
  • User authentication:
  1. Flexible authentication that supports multiple authentication mechanisms, including 802.1X, MAC authentication bypass, and web authentication using a single consistent configuration.
  2. RADIUS redefines the authorization and downloadable calls for comprehensive policy management capabilities.
  3. Private VLANs restrict traffic between hosts on the same segment by splitting traffic at Layer 2, turning broadcast segments into multiaccess segments such as nonbroadcast. The private VLAN edge provides security and isolation between switch ports, which helps ensure that users can’t snoop on other users’ traffic.
  4. Multidomain authentication allows IP phones and PCs to authenticate on the same switch port while assigning them to the appropriate voice and data VLANs.
  5. MAC address notification allows administrators to be notified of users added or removed from the network.
  6. Mobility and security for secure and reliable wireless connectivity and a consistent end user experience. Increased network availability through proactive blocking of known threats.
  7. IGMP filtering provides multicast authentication by filtering out unsubscribed subscribers and limiting the number of concurrent multicast streams available per port.
  • ACLs:
  1. Security Cisco VLAN ACLs on all VLANs prevent unauthorized data flows from being bridged within the VLAN.
  2. Standard Cisco and ACL extended IP security routers establish security policies on interfaces that are routed to aircraft and data airplane traffic. IPv6 ACLs can be applied to filter IPv6 traffic.
  3. Port-based ACLs for Layer 2 interfaces allow security policies to be applied to individual switch ports.
  • Device access:
  1. The Secure Shell (SSH), Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) protocols provide network security by encrypting administrator traffic during Telnet and SNMP sessions. The SSH protocol, Kerberos, and cryptographic versions of SNMPv3 require special cryptographic software images due to US export restrictions
  2. TACACS + and RADIUS authentication facilitate centralized control of the switch and restrict unauthorized users from changing configurations.
  3. Multilevel security on console access prevents unauthorized users from changing switch configurations.
  • The bridge protocol data unit guard (BPDU) closes the Spanning Tree PortFast interface that is activated when a BPDU is received to avoid accidental topology loops.
  • Spanning Tree Root Guard (STRG) prevents edge devices that are not under the control of the network administrator from becoming Spanning Tree Protocol root nodes.
  • End-to-end wireless security offers CAPWAP compliant DTLS encryption to ensure encryption between access points and controllers across remote WAN / LAN links.

  Resiliency

  A seamless network enables enterprise mobility and business-class video services. The industry’s first unified network (wired plus wireless) location service enables tracking of cellular assets and users of those assets for both wired plus wireless devices. A seamless experience is actually enabled by the following feature set on the Cisco Catalyst 3650 Series Switches:

  • High availability
  • High performance IP routing
  • Superior QoS

  High Availability

  In addition to StackWise-160, the Cisco Catalyst 3650 Series supports high availability features including but not limited to the following:

  • Cross-Stack EtherChannel provides the ability to configure Cisco EtherChannel technology across multiple stack members for high durability.
  • Flexlink provides link redundancy with a convergence time of less than 100 ms.
  • IEEE 802.1s / w Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP) provide spanning-tree convergence that is independent of spanning-tree timers and also offers the benefits of Layer 2 load balancing and distributed processing. Stacked units behave as single spanning-tree nodes.
  • Rapid Spanning Tree Per-VLAN (PVRST +) enables fast convergence of spanning trees on a per-VLAN-spanning-tree basis, without requiring implementation of spanning-tree instances.
  • Switch-port autorecovery (Err-disable) automatically tries to re-enable links that were disabled due to network errors.

  High Performance IP Routing

  Cisco Express Forwarding routing architecture provides extremely high-performance IP routing on Cisco Catalyst 3650 Series Switches:

  • IP unicast routing protocols (static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng, the upgraded Interior Gateway Routing Protocol [EIGRP] stub) are supported for small network routing applications with the IP Base feature set. Limited static routing with the Base LAN feature set. Cost-equal routing facilitates balancing and redundancy of Layer 3 loads across the stack.
  • Advanced IP unicast routing protocols (Open Shortest First [OSPF], EIGRP, Border Gateway Protocol Version 4 [BGPv4], and Intermediate-to-Mid System Version 4 [IS-ISv4]) are supported for load balancing and building a secure LAN. scalable. IPv6 routing (OSPFv3, EIGRPv6) is supported in hardware for maximum performance. OSPF for routed access is included in the IP Base drawing. The IP Services feature set is required for the full OSPF, EIGRP, BGPv4, and IS-ISv4.
  • Policy-based routing (PBR) enables superior control by facilitating redirection of flows regardless of the routing protocol being configured. Virtual routing and forwarding (VRF) -Lite allows service providers to support two or more VPNs, with overlapping IP addresses. IP Base feature set required.
  • Protocol-independent multicast (PIM) for IP multicast routing is supported, including PIM infrequent mode (PIM – SM), PIM solid mode (PIM-DM), PIM solid mode, and source specific mode (SSM). IP Service feature set is required.
    IPv6 addressing is supported on the interface with appropriate event commands for monitoring and troubleshooting.

  Superior QoS

  The Cisco Catalyst 3650 Series offers Gigabit Ethernet speeds with intelligent services that keep traffic flowing smoothly, even at 10 times the normal network speed. Industry-leading mechanisms for tagging, classification, and traffic-stack scheduling deliver superior performance for data, voice, and video traffic, all at high speed.

  The following are some of the QoS features supported on the Cisco Catalyst 3650 Series Switches:

  • Granular and equitable wireless bandwidth management uses Cisco IOS Software and proven UADP ASIC technology from Cisco to provide hierarchical bandwidth management at line rates (per access point, per radio, per SSID, per client based policy). Sharing fairly among users in the SSID ensures that not a single user is starving as other users have taken a hit. Fair share is automatically enabled for wireless at the user level as well as the SSID level.
  • 802.1p CoS and DSCP field classifications are provided, using tagging and reclassification on a per-packet basis based on the source and destination IP address, MAC address, or Layer 4 Transmission Control Protocol / User Datagram Protocol (TCP / UDP) protocol number.
  • Shaped round robin (SRR) scheduling helps ensure differential priority of packet flow by intelligently servicing incoming and outgoing queues. Weighted tail drop (WTD) provides avoidance of congestion in incoming and outgoing queues before disruption occurs. Strict priority queues help ensure that highest priority packets are served before all other traffic.
  • The CIR (Cisco information information rate) function provides bandwidth in increments as low as 8 Kbps.
    Value constraints are assigned based on source and destination IP addresses, source and destination MAC addresses, Layer 4 TCP / UDP information, or a combination of these fields, using QoS ACL (IP ACL or MAC ACL), class map, and policy map.
    Eight egress queues per port for wired traffic and four egress queues for wireless help to allow different management of different types of traffic across the stack for wired traffic. Up to 2000 aggregate cops are available per switch.

  Application Visibility and Control Using Flexible NetFlow (FNF)

  The Cisco IOS FNF Software is the next generation in flow visibility technology, enabling optimization of network infrastructure, reducing operating costs, and improving capacity planning and security incident detection with increased flexibility and scalability. The Cisco Catalyst 3650 provides FNF-optimized application visibility on wired plus wireless. The switch is capable of 48,000 flow entries on the 48-port model and 24,000 flow entries on the 24-port model on wired and wireless.

  With UADP ASIC, the Cisco Catalyst 3650 delivers next-generation flow technology with unprecedented flexibility and comprehensive visibility extending from Layer 2 flags (MAC and VLAN) to Layer 4 (TCP / UDP) and beyond across wired and wireless traffic. The Cisco Catalyst 3650 switch is a medianet capable of providing visibility and troubleshooting capabilities across wired plus wireless video traffic. Certain medianet features will be enabled in a future software update.

  The flow data collected by FNF can be exported to an external collector for analysis and reporting or tracked by EEM. The Cisco Catalyst 3650 enables strong, customizable on-box correlation of policy activities and actions with EEM, allowing a switch to trigger event alarms or custom policy actions when specified conditions are met. With no external tools required, customers can use existing infrastructure to perform traffic monitoring, making traffic analysis economical even on large IP networks.

  The Cisco Catalyst 3650 supports Wireshark, the world’s leading network protocol analyzer, and is ideal for proactive debugging, troubleshooting and monitoring network performance. Using Wireshark, users can capture wired and wireless control and data packets, easily displaying and analyzing them on the screen or the Wireshark GUI. Using Flexible NetFlow and the Embedded Event Manager, Wireshark packet capture can be initiated in an event such as a SYN flood attack or abnormal bandwidth usage by certain users.

  High-performance video over wireless integrates Cisco VideoStream technology to optimize the delivery of video applications across WLANs.

  The wireless plus wired IP phone supports unified communications for enhanced collaboration through messaging, attendance, and conferencing and supports all Cisco Unified Communications wireless IP phones for cost-effective real-time voice services.

  Audio Video Bridging

  With Cisco IOS® XE 16.3 Software Release, select * the Cisco Catalyst 3650 Series model supporting the IEEE 802.1 AVB standard. This standard provides the means for the delivery of highly reliable and reliable low-latency AV streaming services over Layer 2 Ethernet networks. This standard also makes it easy to integrate new services and for AV equipment from different vendors to operate. Whether a flexible one-to-one analog or digital AV endpoint connection, network transport allows transparent many-to-many plug-and-play connections for multiple AV endpoints.

  Benefits:

  Improves experience quality by lowering jitter and latency for time-synchronized, high-quality AV delivery
  Provides application scalability across network deployments, including expansive and complex AV infrastructure
  Lower total cost of ownership (TCO) by reducing cabling (lowering CapEx) and no licensing costs (lowering OpEx)

  Deployment Options

  Campus

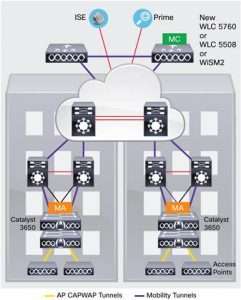

  In a campus-type deployment, operating the Cisco Catalyst 3650 in mobility agent mode and centralizing mobility controller functionality in the WLC 5760, WLC 5508, or WiSM2 helps achieve greater scalability and performance. The Cisco Catalyst 3650 provides CAPWAP termination for access points, uniform policy enforcement for wireless clients, enhanced wireless bandwidth, and uniform Cisco IOS Software based configuration and monitoring for wireless plus wired features. Mobility controllers provide central mobility, RRM, and CleanAir coordination.

  Backward compatibility with traditional centralized wireless deployment modes on the WLC 5508, WiSM2, and WLC 5760 helps ensure that customers can migrate to a converged access approach based on the Cisco Catalyst 3650 incrementally, providing advanced controllers for existing access points. This migration also provides investment protection in the existing wireless controller infrastructure. The incremental adoption of the new Cisco Catalyst 3650 helps ensure seamless migration to connected wireless access mode. Figure 5 shows the Cisco Catalyst 3650 in a campus deployment.



  Branch

  3650 is optimized for branch deployment when operating in mobility controlled mode. In this mode, the switch can not only stop the CAPWAP tunnel from the access point and provide client connectivity, but can also manage mobility within the branch. This eliminates the need for local controllers on each branch in addition to the access layer switches. Also, complete visibility to wired plus wireless traffic means that a WAN router can prioritize properly wired plus wireless traffic in and out of branches. Figure 6 shows the Cisco Catalyst 3650 in a branch deployment.



Cisco Enhanced Limited Lifetime Hardware Warranty By Cisco Jakarta PartnersCisco Catalyst 3650 Series Switches come with E-LLW which includes delivery of NBD replacement devices when available and 90 days of 8 × 5 Cisco TAC support.

Your formal warranty statement, including the warranty applicable to Cisco software, appears in the Cisco information package that accompanies your Cisco product. We encourage you to carefully review the warranty statement that shipped with your specific product prior to use.

Cisco reserves the right to refund the purchase price as a solution to its exclusive warranty.



Table 14.          E-LLW Details

Cisco E-LLW

Device Covered Applies to Cisco Catalyst 3650 Series Switches. Warranty Duration As long as the original customer owns the product. EoL Policy In the event of a product outage, Cisco warranty support is limited to 5 years from the announcement of termination. Hardware Replacement Cisco or its service centers will use commercially reasonable efforts to ship replacement NBD deliveries, if available. Otherwise, a replacement will be dispatched within 10 business days of receipt of the RMA request. Actual delivery time may vary depending on customer location. Effective Date The hardware warranty starts from the date of shipment to the customer (and if resold by a Cisco reseller, no later than 90 days after the original shipment by Cisco). TAC Support Cisco will provide during business hours, 8 hours per day, 5 days per week basic configuration, diagnosis, and device-level troubleshooting for a period of 90 days from the date of shipment of the Cisco Catalyst 3650 product originally purchased. This support does not include network-level solutions or support beyond the specific device being considered. Cisco.com Access Guarantee allows guest access only to Cisco.com.

Licensing for Cisco Catalyst 3650 Series Switches The three feature sets available with all Cisco Catalyst 3650 Series Switches are:

• LAN Base: Enterprise access layer 2 switching features
• IP Base: Enterprise access layer 3 switching features
• IP Services: Advanced enterprise layer 3 switching (IPv4 and IPv6) features

The Base LAN feature set offers enhanced smart services that include comprehensive Layer 2 features, up to 255 VLANs. The Base IP feature set provides entry-level enterprise services in addition to all the Base LAN features, with 4094 VLANs. IP Base also includes support for wireless controller functions (mobility agent and mobility controller roles; additional access point licenses required for mobility controller roles), single pass, intelligent operation, FNF, and so on. The IP Services feature set provides a complete enterprise service that includes advanced Layer 3 features such as EIGRP, OSPF, BGP, PIM, and IPv6 routing such as OSPFv3 and EIGRPv6. All software feature sets support advanced security and MQC based QoS.

Cisco Catalyst 3650 Series Switches with the LAN Base feature set are stackable only with other Cisco Base Catalyst 3650 Series switches. The same goes for the Base IP and IP Services as well. LAN Base switch stack with Base IP or IP Service feature set is not supported.

Customers can transparently upgrade software features configured in Cisco Catalyst 3650 Series Switches via the Cisco IOS Software CLI using a rights-based software upgrade process (RTU). Software activation enables the Cisco IOS Software feature set. Based on the license type, Cisco IOS Software activates the appropriate feature set. The license type can be changed, or upgraded, to activate different feature sets.

Access Point License for Cisco Catalyst 3650

An access point license is required for the Cisco Catalyst 3650 operating in mobility controller mode. No access point license is required for the 3650 operating in agent mobility mode. This function is included in the IP Base feature set. Other devices that can act as mobility controllers are the WLC 5760, WLC 5508, and WiSM2 wireless controllers. Access point licenses can only be transferred between two 3650 switches or between 3650 and 5760 controllers and vice versa.

Software Policy for Cisco Catalyst 3650 Series Switches

Customers with the Cisco Catalyst LAN Base and IP Base software feature sets will be provided with maintenance updates and bug fixes designed to maintain software compliance with published specifications, release notes, and industry standard compliance as long as the original end user retains or uses the product or until one year from the end date of sale for this product, whichever occurs earlier. Customers with a license for our IP Service software images need a service support contract such as Cisco Smart Net Total Care ™ Service to download updates. This policy supersedes any prior software warranties or representations and is subject to change without notice.

• Cisco and Services for Next-Generation Cisco Catalyst Fixed SwitchesEnable innovative, secure, and intelligent excellence in a Boundary Network Architecture using personalized services from Cisco and our partners. Through a discovery process that starts with understanding your business goals, we help you integrate the next generation of Cisco Catalyst fixed switches into your architecture and incorporate network services into that platform. Sharing knowledge and leading practice, we support your success every step of the way as you use, absorb, manage and improve new technology. Choose from a range of flexible support services designed to meet your business needs and help you maintain high quality network performance while controlling operating costs. (See Table 15.)
  Table 15.          Technical Services Available for Cisco Catalyst 3650 Switches

  Technical Services
  Cisco Smart Net Total Maintenance Service● At any time, global access to Cisco TAC ● Unlimited access to Cisco.com’s extensive knowledge base and tools Advance hardware replacement on weekdays, 8x5x4, 24x7x4 and 24x7x2 as well as on-site replacement and installation of spare parts available ● Operating system software update in progress within licensed feature set ● Proactive diagnostics and real-time alerts on devices that support Smart Call Home
  Cisco Smart Foundation Services● NBD advances hardware replacement when available ● Access working hours to the SMB TAC (access levels vary by region) ● Access to the knowledge base of SMB Cisco.com ● Online technical resources via the Smart Foundation Portal ● Repair and patch operating system software bugs
  Cisco SP Base Service● Around-the-clock, global access to the Cisco TAC ● Registered access to Cisco.com ● NBD, 8x5x4, 24x7x4, and 24x7x2 advance hardware replacement; return to factory option available  2 ● Ongoing operating system software updates  1
  Cisco Focused Technical Support Services● Three levels of premium service, high touch available: ◦ Cisco High-Touch Operations Management Service ◦ Cisco High-Touch Technical Support Service ◦ Cisco High-Touch Engineering Services ● A Cisco Smart Net Total Care or SP Base contract is required on all network equipment

  Notes:

  1. Cisco operating system updates include the following: maintenance releases, minor updates, and major updates in the licensed feature set.
  2. Advanced hardware replacement is available in a variety of service level combinations. For example, 8x5xNBD indicates that deliveries will be made during a standard 8 hour working day, 5 days a week (the generally accepted working day in the region), with NBD deliveries. Where NBD is not available, same day vessels are provided. Limits apply; for details, please review the appropriate service descriptions.

• Table 16 lists ordering information for the Cisco Catalyst 3650 Series. To place an order, visit the Cisco Ordering homepage at https://www.cisco.com/en/US/ordering/or13/or8/order_customer_help_how_to_order_listing.html.Table 16.       Cisco Catalyst 3650 Series Ordering Information


  Product Number	Product Description
  Cisco Catalyst 3650 4x1G Uplink Series
  WS-C3650-24TS-L	Standalone with Optional Stacking 24 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-48TS-L	Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-24PS-L	Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-48PS-L	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-48FS-L	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 1025WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-24TS-S	Standalone with Optional Stacking 24 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power supply, 1 RU, IP Base feature set
  WS-C3650-48TS-S	Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power supply, 1 RU, IP Base feature set
  WS-C3650-24PS-S	Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC power supply, 1 RU, IP Base feature set
  WS-C3650-48PS-S	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC power supply, 1 RU, IP Base feature set
  WS-C3650-48FS-S	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 1025WAC power supply, 1 RU, IP Base feature set
  WS-C3650-24TS-E	Standalone with Optional Stacking 24 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power supply, 1 RU, IP Services feature set
  WS-C3650-48TS-E	Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x1G Uplink ports, with 250WAC power supply, 1 RU, IP Services feature set
  WS-C3650-24PS-E	Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC power supply, 1 RU, IP Services feature set
  WS-C3650-48PS-E	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 640WAC power supply, 1 RU, IP Services feature set
  WS-C3650-48FS-E	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x1G Uplink ports, with 1025WAC power supply, 1 RU, IP Services feature set
  Cisco Catalyst 3650 2x10G and 2x1G Uplink Series
  WS-C3650-24TD-L	Standalone with Optional Stacking 24 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-48TD-L	Standalone with Optional Stacking 48 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-24PD-L	Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-24PDM-L	Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with fixed 640WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-48PD-L	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-48FD-L	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 1025WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-24TD-S	Standalone with Optional Stacking 24 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power supply, 1 RU, IP Base feature set
  WS-C3650-48TD-S	Standalone with Optional Stacking 48 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power supply, 1 RU, IP Base feature set
  WS-C3650-24PD-S	Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC power supply, 1 RU, IP Base feature set
  WS-C3650-24PDM-S	Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with fixed 640WAC power supply, 1 RU, IP Base feature set
  WS-C3650-48PD-S	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC power supply, 1 RU, IP Base feature set
  WS-C3650-48FD-S	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 1025WAC power supply, 1 RU, IP Base feature set
  WS-C3650-24TD-E	Standalone with Optional Stacking 24 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power supply, 1 RU, IP Services feature set
  WS-C3650-48TD-E	Standalone with Optional Stacking 48 10/100/1000 Ethernet and 2x10G Uplink ports, with 250WAC power supply, 1 RU, IP Services feature set
  WS-C3650-24PD-E	Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC power supply, 1 RU, IP Services feature set
  WS-C3650-24PDM-E	Standalone with Optional Stacking 24 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with fixed 640WAC power supply, 1 RU, IP Services feature set
  WS-C3650-48PD-E	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 640WAC power supply, 1 RU, IP Services feature set
  WS-C3650-48FD-E	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 2x10G Uplink ports, with 1025WAC power supply, 1 RU, IP Services feature set
  WS-C3650-8X24PD-L	Standalone with Optional Stacking 24 (16 10/100/1000 and 8 100Mbps/1/2.5/5/10 Gbps) Ethernet and 2x10G Uplink ports, with 715WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-8X24PD-S	Standalone with Optional Stacking 24 (16 10/100/1000 and 8 100Mbps/1/2.5/5/10 Gbps) Ethernet and 2x10G Uplink ports, with 715WAC power supply, 1 RU, IP Base feature set
  WS-C3650-8X24PD-E	Standalone with Optional Stacking 24 (16 10/100/1000 and 8 100Mbps/1/2.5/5/10 Gbps) Ethernet and 2x10G Uplink ports, with 715WAC power supply, 1 RU, IP Services feature set
  WS-C3650-12X48FD-L	Standalone with Optional Stacking 48 (36 10/100/1000 and 12 100Mbps/1/2.5/5/10 Gbps) Ethernet and 2x10G Uplink ports, with 1100WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-12X48FD-S	Standalone with Optional Stacking 48 (36 10/100/1000 and 12 100Mbps/1/2.5/5/10 Gbps) Ethernet and 2x10G Uplink ports, with 1100WAC power supply, 1 RU, IP Base feature set
  WS-C3650-12X48FD-E	Standalone with Optional Stacking 48 (36 10/100/1000 and 12 100Mbps/1/2.5/5/10 Gbps) Ethernet and 2x10G Uplink ports, with 1100WAC power supply, 1 RU, IP Services feature set
  Cisco Catalyst 3650 4x10G Uplink Series
  WS-C3650-48TQ-L	Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x10G Uplink ports, with 250WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-48PQ-L	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 640WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-48FQ-L	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 1025WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-48FQM-L	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with fixed 975WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-48TQ-S	Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x10G Uplink ports, with 250WAC power supply, 1 RU, IP Base feature set
  WS-C3650-48PQ-S	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 640WAC power supply, 1 RU, IP Base feature set
  WS-C3650-48FQ-S	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 1025WAC power supply, 1 RU, IP Base feature set
  WS-C3650-8X24UQ-L	Standalone with Optional Stacking 24 (16 10/100/1000 and 8 100Mbps/1/2.5/5/10 Gbps) Ethernet and 4x10G Uplink ports, with 1100WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-8X24UQ-S	Standalone with Optional Stacking 24 (16 10/100/1000 and 8 100Mbps/1/2.5/5/10 Gbps) Ethernet and 4x10G Uplink ports, with 1100WAC power supply, 1 RU, IP Base feature set
  WS-C3650-8X24UQ-E	Standalone with Optional Stacking 24 (16 10/100/1000 and 8 100Mbps/1/2.5/5/10 Gbps) Ethernet and 4x10G Uplink ports, with 1100WAC power supply, 1 RU, IP Services feature set
  WS-C3650-12X48UQ-L	Standalone with Optional Stacking 48 (36 10/100/1000 and 12 100Mbps/1/2.5/5/10 Gbps) Ethernet and 4x10G Uplink ports, with 1100WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-12X48UQ-S	Standalone with Optional Stacking 48 (36 10/100/1000 and 12 100Mbps/1/2.5/5/10 Gbps) Ethernet and 4x10G Uplink ports, with 1100WAC power supply, 1 RU, IP Base feature set
  WS-C3650-12X48UQ-E	Standalone with Optional Stacking 48 (36 10/100/1000 and 12 100Mbps/1/2.5/5/10 Gbps) Ethernet and 4x10G Uplink ports, with 1100WAC power supply, 1 RU, IP Services feature set
  WS-C3650-48FQM-S	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with fixed 975WAC power supply, 1 RU, IP Base feature set
  WS-C3650-48TQ-E	Standalone with Optional Stacking 48 10/100/1000 Ethernet and 4x10G Uplink ports, with 250WAC power supply, 1 RU, IP Services feature set
  WS-C3650-48PQ-E	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 640WAC power supply, 1 RU, IP Services feature set
  WS-C3650-48FQ-E	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with 1025WAC power supply, 1 RU, IP Services feature set
  WS-C3650-48FQM-E	Standalone with Optional Stacking 48 10/100/1000 Ethernet PoE+ and 4x10G Uplink ports, with fixed 975WAC power supply, 1 RU, IP Services feature set
  Cisco Catalyst 3650 8x10G Uplink Series
  WS-C3650-12X48UR-L	Standalone with Optional Stacking 48 (36 10/100/1000 and 12 100Mbps/1/2.5/5/10 Gbps) Ethernet and 8x10G Uplink ports, with 1100WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-12X48UR-S	Standalone with Optional Stacking 48 (36 10/100/1000 and 12 100Mbps/1/2.5/5/10 Gbps) Ethernet and 8x10G Uplink ports, with 1100WAC power supply, 1 RU, IP Base feature set
  WS-C3650-12X48UR-E	Standalone with Optional Stacking 48 (36 10/100/1000 and 12 100Mbps/1/2.5/5/10 Gbps) Ethernet and 8x10G Uplink ports, with 1100WAC power supply, 1 RU, IP Services feature set
  Cisco Catalyst 3650 2x40G Uplink Series
  WS-C3650-12X48UZ-L	Standalone with Optional Stacking 48 (36 10/100/1000 and 12 100Mbps/1/2.5/5/10 Gbps) Ethernet and 2x40G Uplink ports, with 1100WAC power supply, 1 RU, LAN Base feature set
  WS-C3650-12X48UZ-S	Standalone with Optional Stacking 48 (36 10/100/1000 and 12 100Mbps/1/2.5/5/10 Gbps) Ethernet and 2x40G Uplink ports, with 1100WAC power supply, 1 RU, IP Base feature set
  WS-C3650-12X48UZ-E	Standalone with Optional Stacking 48 (36 10/100/1000 and 12 100Mbps/1/2.5/5/10 Gbps) Ethernet and 2x40G Uplink ports, with 1100WAC power supply, 1 RU, IP Services feature set
  Cisco Catalyst 3650 Bundles
  WS-C3650-24PWS-S	Cisco Catalyst 3650 24 Port PoE 4x1G Uplink w/5 AP licenses IPB
  WS-C3650-24PWD-S	Cisco Catalyst 3650 24 Port PoE 2x10G Uplink w/5 AP licenses IPB
  WS-C3650-48FWS-S	Cisco Catalyst 3650 48 Port FPoE 4x1G Uplink w/5 AP licenses IPB
  WS-C3650-48FWD-S	Cisco Catalyst 3650 48 Port FPoE 2x10G Uplink w/5 AP licenses IPB
  WS-C3650-48FWQ-S	Cisco Catalyst 3650 48 Port FPoE 4x10G Uplink w/5 AP licenses IPB
  WS-C3650-48PWD-S	Cisco Catalyst 3650 48 Port PoE 2x10G Uplink w/5 AP licenses IPB
  WS-C3650-48PWS-S	Cisco Catalyst 3650 48 Port PoE 4x1G Uplink w/5 AP licenses IPB
  Cisco Catalyst 3650 Series Spare StackWise-160 Module, Cables and Blank
  C3650-STACK-KIT=	Cisco Catalyst 3650 Stack Module spare
  STACK-T2-50CM=	Cisco StackWise-160 50CM Stacking Cable Spare
  STACK-T2-1M=	Cisco StackWise-160 1M Stacking Cable Spare
  STACK-T2-3M=	Cisco StackWise-160 3M Stacking Cable Spare
  STACK-T2-BLANK=	Cisco Catalyst 3650 Stacking Blank Spare
  Cisco Catalyst 3650 Series RTU Feature License and Software Options
  C3650-RTU=	Paper SW License for Cisco Catalyst 3650 Switches
  C3650-48-L-E	Cisco Catalyst 3650 48-port LAN Base to IP Services Paper RTU License
  C3650-24-S-E	Cisco Catalyst 3650 24-port IP Base to IP Services Paper RTU License
  C3650-24-L-S	Cisco Catalyst 3650 24-port LAN Base to IP Base Paper RTU License
  C3650-48-L-S	Cisco Catalyst 3650 48-port LAN Base to IP Base Paper RTU License
  C3650-24-L-E	Cisco Catalyst 3650 24-port LAN Base to IP Services Paper RTU License
  C3650-48-S-E	Cisco Catalyst 3650 48-port IP Base to IP Services Paper RTU License
  L-C3650-RTU=	Electronic SW License for Cisco Catalyst 3650 Switches
  L-C3650-48-S-E	Cisco Catalyst 3650 48-port Switch IP Base to IP Services Electronic RTU License
  L-C3650-48-L-S	Cisco Catalyst 3650 48-port Switch LAN Base to IP Base Electronic RTU License
  L-C3650-48-L-E	Cisco Catalyst 3650 48-port Switch LAN Base to IP Services Electronic RTU License
  L-C3650-24-L-S	Cisco Catalyst 3650 24-port Switch LAN Base to IP Base Electronic RTU License
  L-C3650-24-S-E	Cisco Catalyst 3650 24-port Switch IP Base to IP Services Electronic RTU License
  L-C3650-24-L-E	Cisco Catalyst 3650 24-port Switch LAN Base to IP Services Electronic RTU License
  Access Point Licenses
  L-LIC-CT3650-UPG	Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery)
  L-LIC-CTIOS-1A	1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
  LIC-CT3650-UPG	Primary upgrade license SKU for Cisco 3650 wireless controller (paper license)
  LIC-CTIOS-1A	1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
  Cisco Catalyst 3650 Series Spare Power Supplies and Fan
  PWR-C2-250WAC=	250 WAC power supply spare
  PWR-C2-640WAC=	640 WAC power supply spare
  PWR-C2-1025WAC=	1025 WAC power supply spare
  PWR-C2-640WDC=	640 WDC power supply spare
  PWR-C1-715WAC=	715WAC power supply spare
  PWR-C1-1100WAC=	1100WAC power supply spare
  PWR-C1-440WDC=	440WDC power supply spare
  PWR-C2-BLANK=	Power supply blank spare
  FAN-T1=	Fan module spare
  Cisco Catalyst 3650 Series Spare Power Cords
  CAB-TA-NA=	AC power cord for Cisco Catalyst 3650 (North America)
  CAB-TA-AP=	AC power cord for Cisco Catalyst 3650 (Australia)
  CAB-TA-AR=	AC power cord for Cisco Catalyst 3650 (Argentina)
  CAB-TA-SW=	AC power cord for Cisco Catalyst 3650 (Switzerland)
  CAB-TA-UK=	AC power cord for Cisco Catalyst 3650 (United Kingdom)
  CAB-TA-JP=	AC power cord for Cisco Catalyst 3650 (Japan)
  CAB-TA-250V-JP=	Japan 250VAC power cord for Cisco Catalyst 3650 (Japan)
  CAB-TA-EU=	AC power cord for Cisco Catalyst 3650 (Europe)
  CAB-TA-IT=	AC power cord for Cisco Catalyst 3650 (Italy)
  CAB-TA-IN=	AC power cord for Cisco Catalyst 3650 (India)
  CAB-TA-CN=	AC power cord for Cisco Catalyst 3650 (China)
  CAB-TA-DN=	AC power cord for Cisco Catalyst 3650 (Denmark)
  CAB-TA-IS=	AC power cord for Cisco Catalyst 3650 (Israel)
  CAB-C15-CBN=	Cabinet jumper power cord, 250 VAC 13A, C14-C15 connectors
  CAB-C15-CBN-JP=	Japan Cabinet Jumper Power Cord, 250 VAC 13A, C14-C15
  Cisco Catalyst 3650 Series Spare Accessory and Rack Mount Kits
  ACC-KIT-T1=	Accessory kit for Cisco Catalyst 3650 Series
  RACK-KIT-T1=	Rack mount kit for Cisco Catalyst 3650 Series
  4PT-KIT-T1=	Extension rails and brackets for four-point mounting for Cisco Catalyst 3650 Series

  Optics Compatibility Information

  The Cisco Catalyst 3650 Series supports a wide variety of optics. As the list of supported optics is updated regularly, please refer to the table provided here for the latest SFP compatibility

Financing to Help You Achieve Your Goals. Cisco Capital® financing can help you get the technology you need to achieve your goals and stay competitive. We can help you reduce CapEx. Accelerate your growth. Optimize your investment dollars and ROI. Cisco Capital financing gives you the flexibility to acquire complementary third party hardware, software, services, and equipment. And there is only one predictable payment. Cisco Capital is available in more than 100 countries. Learn more. [1] 3650 multigigabit switch uses a different power supply from non-multigigabit models. Please refer to Table 3. [2] 3650 mini SKU (WS-C3650-24PDM and WS-C3650-48FQM) only supports fixed power supply and fan. They also support RPS2300 for redundancy.
