Ruijie Access Point RG-AP740-L By Ruijie

Ruijie Access Point RG-AP740-L By Ruijie

Equipped with the highly acclaimedX-Sense Smart Antenna, the Ruijie Access Point RG-AP740-L tops the list in its class.

Request a Quote

DESCRIPTION

RG-AP740-I Wireless Access Point

Equipped with Ruijie’s famous X-Sense Smart Antenna, The Ruijie Access Point RG-AP740-L tops its class by supporting the latest 802.11ac Wave 2 standard, 4 spatial streams, and MU-MIMO. Empowering a tri-radio design, the RG-AP740-I AP offers access speeds of up to 1733Mbps and 800Mbps with 2 main radio units, removing the bottlenecks of high speed Wi-Fi performance over 1000Mbps. Hence, the AP speeds up Wi-Fi performance up to 2.966Gbps per device.

Equipped with the industry-leading “X-Sense 4” antenna, the RG-AP740-I greatly enhances AP coverage performance and ensures an optimal access experience for smart mobile devices. The AP also has security features, radio frequency (RF) control, cellular access, Quality of Service (QoS), and unlimited roaming. In collaboration with the Ruijie RG-WS Wireless Controller Series, wireless data forwarding, security and access control are easy. With a tri-radio design, the RG-AP740-I AP supports 2.4G + 5G + 2.4G and 2.4G + 5G + 5G Modes as well as 802.11ac Wave 2, 802.11ac Wave 1, and 802.11n.

The wall-mount RG-AP740-I AP allows easy and secure installation to a wall or ceiling and offers local power and Power over Ethernet (PoE) options. The RG-AP740-I AP is perfect for environments such as large campuses, offices, hospitals, and service provider hotspots.

Overview

Patented X-sense™ Smart Antenna

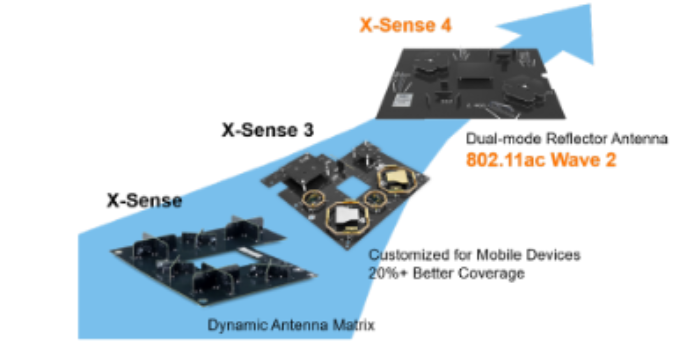

Antena Cerdas X-Sense 4

X-Sense 4 Smart Antenna

  • Automatic Selection of Optimal Signal Paths

Prepared with the patented Smart Antenna matrix architecture, the AP740-I supports multiple antenna combinations and effectively overcomes the drawbacks of traditional antenna coverage dead zones.

  • Signal Strength Enhanced with the Same Strength

AP740-I accurately calculates smart device location and increases signal strength according to antenna dynamic combination, ensuring the best signal coverage.

  • Reduced Interference & Simplified

Applicability The AP740-I Series automatically adjusts the direction of the wireless signal output according to the user’s location. When experiencing interference, Smart Antenna technology and X-Sense ™ Smart Antenna can effectively reduce interference by more than 30%.

Performance Proven by Independent Third Party Validation, Tolly Certified

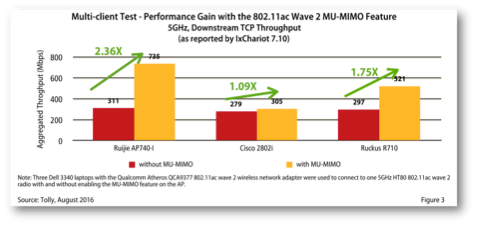

Laporan Sertifikasi Tolly

Certification Reports

Tolly GroupTolly Group is a reputable third-party independent performance testing organization. More than 65% of Fortune 100 Companies turn to Tolly Reports to assist in strategic technology decision making.

The performance of the Ruijie AP740-I is further validated in the Tolly certified report. We’ve outperformed other vendor-led wireless access points in real-world performance ratings.

High Density WiFi Experience

  • Pre-AX, Minimizes Co-channel & Other Interference

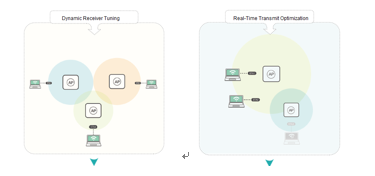

Teknologi Pre-AX Mengoptimalkan Pengalaman WiFi

Pre-AX Technology Optimizes WiFi Experience

DCCA / DTPC is adopted from 802.11ax technology to dynamically adjust RSSI threshold to maximize usable spectrum and allow more data to be sent. Each AP optimizes the RF and power channels according to their respective clients.

  • CorrectLink, Increase Traffic Load Balancing & Roaming Clients

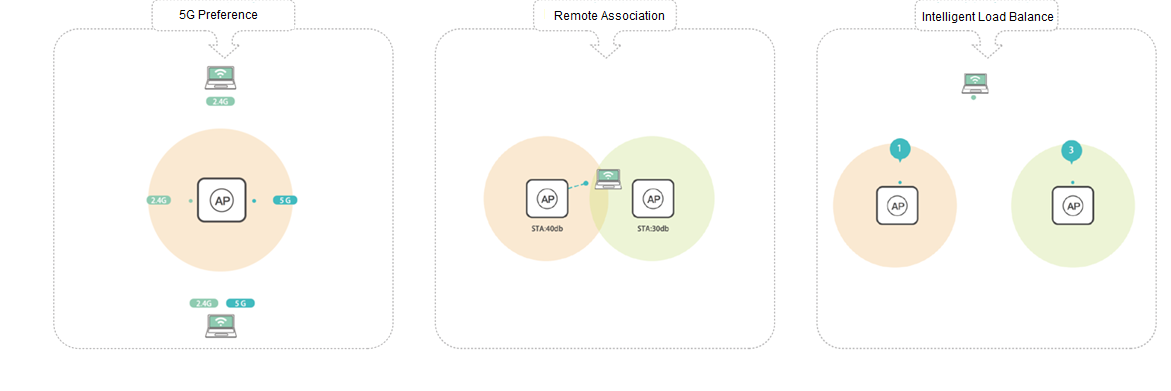

Teknologi CorrectLink Mengoptimalkan Pengalaman WiFi

CorrectLink Technology Optimizes the WiFi Experience

CorrectLink technology is designed to analyze the latency, jitter and signal strength of each client. It also correlates with additional information such as wireless channel utilization and throughput to optimize the best user experience for wireless clients.

  • AirReorder, Smart Airtime Scheduling Technology

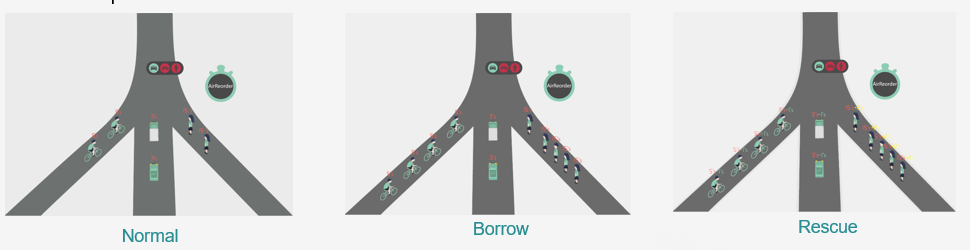

AirReorder Mengalokasikan Slot Waktu ke Terminal

AirReorder Allocates Time Slots to Terminals

The fundamental thing about AirReorder is to allocate the same time slots to ensure that each terminal can get the best possible RF resource justice. This can prevent the slower data rate client from degrading the performance of the entire network by occupying the limited shared media.

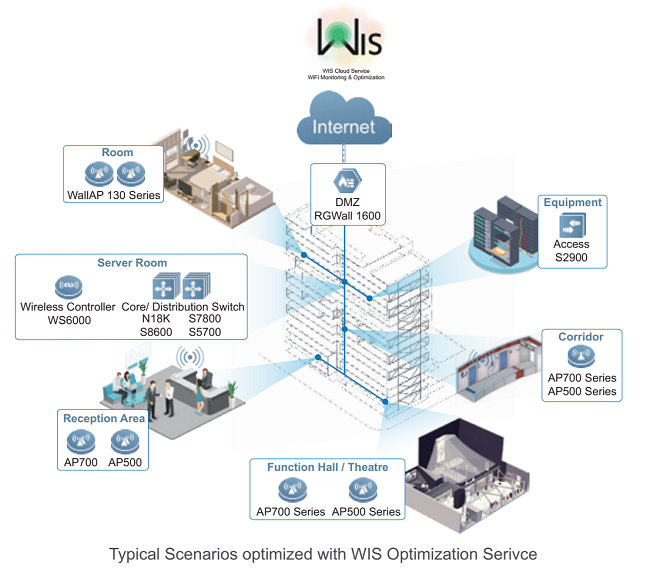

Seamless Integration with WIS Cloud

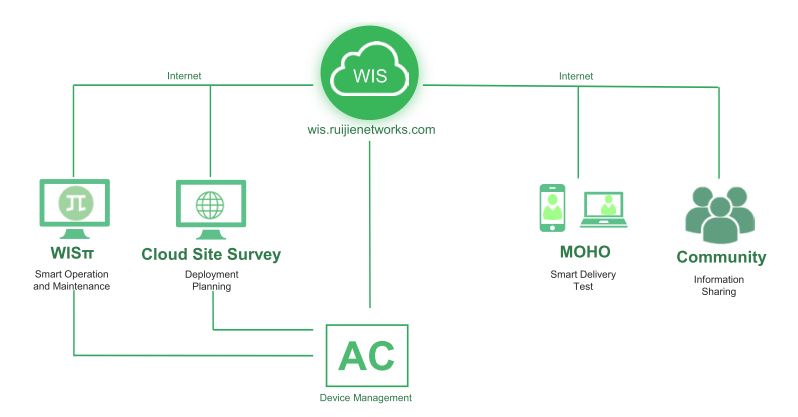

Platform Layanan Cerdas Cloud WIS

WIS Cloud Smart Services Platform

Ruijieis an AI-based smart service designed for WiFi optimization in the cloud. Seamlessly integrated with Ruijie hardware AC on premise helps simplify WiFi deployment planning, delivery testing, and operation diagnosis. With WIS you can:

  • Survey cloud sites for deployment planning
  • Smart mobile APP for provisioning
  • Visualize user experience
  • One-click WiFi optimization
  • and it’s FREE!

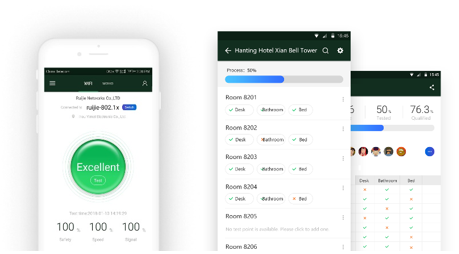

Aplikasi Ruijie MOHO untuk Pengujian WiFi

Ruijie MOHO App for WiFi Testing

As part of the Ruijie WIS solution, Ruijie MOHO is a mobile application designed to perform WiFi testing from your fingertips. Comprehensive testing tools such as collaborative test, speed test, multi-point test, etc. are available on the Ruijie MOHO app which can be downloaded for free from the IOS APP Store & Google Play.

WISπ One-Click Optimization [/ caption]

Another key feature of Ruijie WIS, WISπ provides one-click optimization using AI-based automatic machine learning correlation based on timing information real data collected from your WiFi network. It completely optimizes the entire WiFi network performance by providing the most suitable configuration with fine-tuning with just one click.

Virtual AP Technology

Virtual AP Enhances Network Security [/ caption]

In most companies today, providing Guest WiFi to visitors is important. However, Guest WiFi may be another entry point for network interference whether intentional or not.

Ruijie AP Virtualization technology makes it possible to virtualize a physical AP into multiple virtual APs to handle different services. Different VAPs can connect to different ACs to ensure the only authorized user access to the correct power source.

With VAP, you can now enjoy the benefits:

  • Resource isolation
  • Flexible authentication
  • Minimize RF interference
  • Cost effective & secure

Take advantage of the AP740’s dual GE uplink design, two distinct CAPWAP tunnels that separate employee WiFi traffic and guest WiFi into two physical uplinks different, which further increases security.

Virtual AC Technology

Virtual AC Enables Centralized Management [/ caption]

Ruijie Network AC Virtualization Technology helps to virtualize multiple air conditioners into a single logical air conditioner regardless of module or based AC tool. It supports up to 8 hardware AC members in one high availability cluster. AP licenses are shared from the license pool regardless of the number of ACs in the cluster.

With centralized management and distributed processing capabilities, it increases the scalability and resilience of the entire Wireless Network. Simplified management also streamlines IT operations.

PPSK Authentication

Simple and Effective Wireless Security Practices [/ caption]

Traditional pre-shared key (PSK) is shared by all users on the WLAN, potentially causing risk of leakage of sex workers.

Ruijie Per-user PSK (PPSK) is an easy-to-setup wireless authentication method with enterprise-level security. Credentials can be created and revoked individually. Each PPSK can also be bound to a unique user / machine.

With PPSK, you can enjoy the benefits of:

  • High security by using different passwords for each user and device in each SSID
  • Simple implementation, allows batch account creation
  • Ease of use and offers the same experience as WPA / WPA2-PSK
  • Out feature -of-box in AC controller

No additional AAA required

Bluetooth app iBeacon

iBeacon for O2O Marketing [/ caption]

AP700 Series comes with a built-in BT4.0 module , bringing revolutionary changes to LBS marketing through iBeacon. iBeacon, first developed by Apple and then widely supported by other mobile devices, is a protocol that leverages Bluetooth low energy (BLE) wireless technology to provide location-based information and services.

Getting ready for this BT 4.0 integration, the AP is becoming a powerful O2O marketing tool, enabling customers to get exclusive offers from nearby stores, view details on their mobile when they are close to a featured product, get alerts about what’s in store next and much more.

Spesification
Model

RG-AP740-I

RG-AP740-I(C)

RG-AP720-I

Model

RG-AP740-I

RG-AP740-I(C)

RG-AP720-I

Target Deployments

For campuses, offices, hospitals, and hotspots of service providers

Basic Specifications

Radio

Concurrent tri-radio dual-band

Concurrent dual-radio dual-band

Concurrent dual-radio dual-band

Protocol

802.11a/b/g/n/ac

Wave 2

Operating Bands

802.11b/g/n: 2.4GHz to 2.483GHz

802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries)

Antenna

Built-in “X-Sense 4” Smart Antenna

4×4 MU-MIMO

Built-in Smart Antenna

4×4 MU-MIMO

Built-in Smart Antenna

2×2 MU-MIMO

Max Throughput

1733Mbps/800Mbps/433Mbps per radio

2966Mbps per AP

1733Mbps/800Mbps per radio

2533Mbps per AP

400Mbps@2.4GHz

867Mbps@5GHz

1267Mbps per AP

 Spatial Streams

4

4

2

Modulation

OFDM: BPSK@6/9Mbps

QPSK@12/18Mbps

16-QAM@24Mbps

64-QAM@48/54Mbps

DSSS:

DBPSK@1Mbps

DQPSK@2Mbps

CCK@5.5/11Mbps

MIMO-OFDM:

PSK, QPSK, 16QAM, 64QAM and 256QAM

OFDM: BPSK@6/9Mbps

QPSK@12/18Mbps

16-QAM@24Mbps

64-QAM@48/54Mbps

DSSS:

DBPSK@1Mbps

DQPSK@2Mbps

CCK@5.5/11Mbps

MIMO-OFDM:

BPSK, QPSK, 16QAM, 64QAM and 256QAM

OFDM: BPSK@6/9Mbps

QPSK@12/18Mbps

16-QAM@24Mbps

64-QAM@48/54Mbps

DSSS:

DBPSK@1Mbps

DQPSK@2Mbps

CCK@5.5/11Mbps

MIMO-OFDM:

BPSK, QPSK, 16QAM, 64QAM and 256QAM

Receiver Sensitivity

11b:-91dBm(1Mbps),-88dBm(5Mbps),-85dBm(11Mbps)

11a/g:-89dBm(6Mbps),-80dBm(24Mbps),-76dBm(36Mbps),-71dBm(54Mbps)

11n:-83dBm@MCS0,-65dBm@MCS7,-83dBm@MCS8,-65dBm@MCS15

11ac HT20:-83dBm(MCS0), -57dBm(MCS9)

11ac HT40:-79dBm(MCS0), -57dBm(MCS9)

11ac HT80:-76dBm(MCS0), -51dBm(MCS9)

Maximum Transmit Power

100mw

Adjustable Power

1dBm

IP Rating

IP41

Ports

Service Port

2 10/100/1000BASE-T Ethernet uplink ports (Both ports support PoE) 1 USB port

2 10/100/1000BASE-T Ethernet uplink ports (Both ports support PoE) 1 USB port

2 10/100/1000BASE-T Ethernet ports (LAN1 port supports PoE & Uplink) 1 USB port

Management Port

1 console port

Power

Power Supply Local power supply (DC 48V) and PoE+ (802.3af/802.3at)

Support dual PoE for power backup

(Power adapters sold separately)

Local power supply (DC 48V) and

PoE+ (802.3af/802.3at)

Support dual 802.3at power supply, or dual 802.3af power supply

Local power supply (DC 48V) and PoE+ (802.3af/at)

(Power adapters sold separately)

Power Consumption

<25.4W

<25.4W

<12.95W

WLAN Maximum clients per AP

Up to 612

Up to 512

Up to 256

BSSID capacity

Up to 16 per radio                                                          Up to 48 per AP

Up to 16 per radio                                                          Up to 32 per AP

Up to 16 per radio                                                          Up to 32 per AP

SSID hiding

Support

Configuring the authentication mode, encryption mechanism and VLAN attributes for each SSID

Support

Remote Intelligent Perception Technology (RIPT)

Support

X-speed

Support

Intelligent load balancing based on the number of users or traffic

Support

STA control

SSID/radio-based

Bandwidth control

STA/SSID/AP-based speed control

Preference for 5GHz (band select)

Support

Wireless position tracking

Support

Dynamic Frequency Selection(DFS)

Future Release Support

Security

PSK, Web, and 802.1x authentication

Support

Data encryption

WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)

SMS authentication

Support

PEAP authentication

Support

Data frame filtering

Whitelist, static/dynamic blacklist

User isolation

Support

Rogue AP detection and countermeasure

Support

Dynamic ACL assignment

Support

RADIUS

Support

Wireless Intrusion Detection System(WIDS)

Support

Wireless Intrusion Prevention System (WIPS)

Support

Bluetooth iBeacon

Support

Routing IPv4 address

Static IP address or DHCP reservation

IPv6 CAPWAP tunnel

Support

ICMPv6

Support

IPv6 address

Manual or automatic configuration

Multicast

Multicast to unicast conversion

Management and Maintenance Network management

SNMP v1/v2C/v3, Telnet, TFTP, Web management

One-click Optimization

Support

(need to integrate with WIS)

Fault detection and alarm

Support

Cloud AC management

Support

Statistics and logs

Support

FAT/FIT switching

The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC.

The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet.

External Characteristics Lock

Support

LED Indicators

1 LED (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to silent mode)

Relevant Standard Wi-Fi Alliance Certification

Support

Safety Standard

GB4943, EN/IEC 60950-1

EMC Standard

GB9254, EN301 489

EN 55032 , EN 61000, EN 55035

Health Standard

EN 62311

Radio Standard

EN300 328, EN301 893

Vibration Standard

IEC60068 2-31, ETSI EN300 019,

NEBS GR-63-CORE

Specifications

Dimensions (W x D x H) (mm)

230 × 230 × 42
(Height of AP only, excluding case and mount kit)

230 × 230 × 42
(Height of AP only, excluding case and mount kit)

180 × 180 × 20

(Height of AP only, excluding case and mount kit)

Weight

1.3kg

1.0kg

0.37kg

Work Environment Temperature

Operating Temperature: -10°C to 50°C

Storage Temperature: -40°C to 70°C

Humidity

Operating Humidity: 5% to 95% (non-condensing)

Storage Humidity: 5% to 95% (non-condensing)

Installation Mode

Ceiling/wall-mountable

Applications

As a key component of an end-to-end enterprise network solution, the high-performance RG-AP700 Series is targeted at high-capacity scenarios, such as reception areas, function rooms, theaters and corridors. AC local hardware provides a unified management platform for managing wireless APs in campus networks, AC is also integrated with the Ruijie WIS platform in the cloud to further enhance WiFi optimization services, the RG-AP700 Series can scale up its deployment according to the evolving requirements of enterprise level networks such as shown in the following solution diagram.



Order Information
Model Description
RG-AP740-I Indoor Wireless Access Point, built-in “X-Sense 4” Smart Antenna, tri-radio dual-band, 4 spatial streams, access rate up to 2.966Gbps per AP

Support concurrent 802.11ac Wave 2 and 802.11a/b/g/n, FAT/FIT modes, 2 10/100/1000BASE-T uplink ports, support PoE+ and local power supply, integrated with BLE/Bluetooth iBeacon

(PoE+ and local power adapters sold separately)
