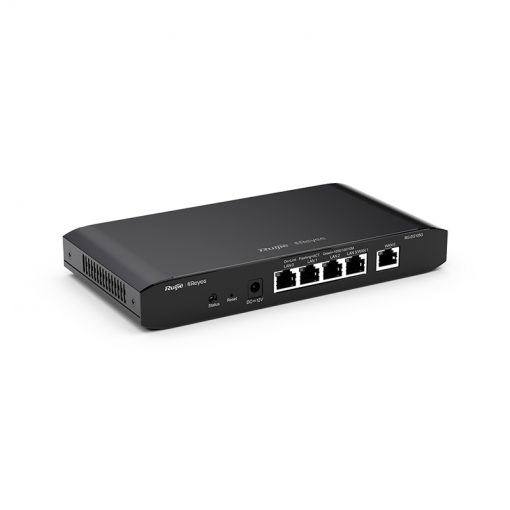

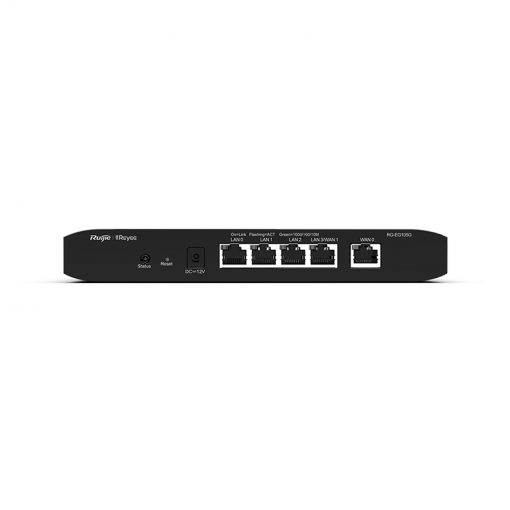

RG-EG105G Series Cloud Managed Router
Reyee Router RG-EG105G-P. Ruijie Reyee RG-EG105G-P seriees Router is a cloud managed router designed for villas and smart home , restaurant, small offices, homestay hotel . it is affordable, small and easy to use, but at the same time comes with 500M bandwidth and supporting up to 100 terminals.
- Auto-provisioning via self-organizing network：RG-EG105G series realizes the industry-leading auto-discovery and auto-networking features for gateways, switches and wireless.
- Lifetime free Ruijie Cloud managed: Remote fault alarm, one-click operation and maintenance on Ruijie Cloud App.
- Multipe WAN Ports: Up to 4 WAN ports are supported.
- Full Gigabit port :Meet the needs of 200M xDS/fiber access,high-speed wired connectivity.
- Smart flow control
- IPSec VPN: up to 8 branches.
- Enterprise Security features: IP/MAC/MAC-Fitering. Independent VLAN for guest , isolated from the internal office network.
|
Model |
RG-EG105G | RG-EG105G-P |
|
Model |
RG-EG105G | RG-EG105G-P |
|
Basic specifications |
||
|
Fixed ports |
5 10/100/1000M Base-T ports，supporting up to 2 WAN ports
（Default: 1 WAN port，4 LAN ports LAN3 can be switched to WAN1 port） |
5 10/100/1000M Base-T ports，supporting up to 2 WAN ports （Default: 1 WAN port，4 LAN ports LAN3 can be switched to WAN1 port） |
|
RAM |
128MB | 128MB |
|
Flash |
16MB | 16MB |
|
Maximum number of clients |
Up to 100 concurrent clients | Up to 100 concurrent clients |
|
Recommended bandwidth |
500M asymmetric bandwidth (flow control disabled)
300M asymmetric bandwidth (flow control enabled) |
500M asymmetric bandwidth (flow control disabled)
300M asymmetric bandwidth (flow control enabled) |
|
Local power supply |
Support 220V AC local power supply | |
|
Power consumption |
<6W | <60W (With PoE load) |
|
Basic network features |
||
|
Network access |
PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers | |
|
Routing |
Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams | |
|
Security |
ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping | |
|
Other protocols |
DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS | |
|
Gateway |
||
|
Flow control |
Support custom flow control policies, IP-based automatic bandwidth assignment | |
|
Traffic audit |
Real-time traffic audit, IP traffic visualization | |
|
Behavior management |
Time-based and IP policy-based access control | |
|
VPN |
IPsec VPN (8 tunnels) server and client | |
|
Wireless management |
||
|
Management capacity |
In AC mode, the maximum management capacity is 300
In gateway mode, the maximum management capacity is 32 |
In AC mode, the maximum management capacity is 300
In gateway mode, the maximum management capacity is 32 |
|
AP management |
Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist | |
|
Roaming |
Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track | |
|
Switch management |
||
|
Management capacity |
Maximum manageable cloud managed switches: 128 | |
|
Port management |
Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search | |
|
Status display |
Port statistics, monitoring information, cable detection, VLAN configuration, MAC list | |
| Upgrade management | Per-device upgrade, batch upgrade | |
|
Value added features |
||
|
Featured solutions |
Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution | |
|
Management |
Eweb and Ruijie Cloud | |
|
Physical specifications |
||
|
Dimensions |
206.5×108.5×28 (mm) | 206.5×108.5×28 (mm) |
|
Weight |
0.84kg | 0.84kg |
|
Temperature |
Operating temperature: 0 ~ 40 ℃ Storage temperature: -10 ℃ ~ 70 ℃ |
Operating temperature: 0 ~ 40 ℃ Storage temperature: -10 ℃ ~ 70 ℃ |
|
Humidity |
Operating humidity: 10% ~ 90% (non-condensing) Storage humidity: 5% ~ 95% (non-condensing) |
Operating humidity: 10% ~ 90% (non-condensing) Storage humidity: 5% ~ 95% (non-condensing) |
| Model | Description |
| RG-EG105G | 5-port Gigabit router with metal casing, supporting up to 100 terminals and 500M bandwidth; 5 Gigabit Ethernet ports including 1 WAN port and 1 LAN/WAN port; integrated with unified network controller feature, managing up to 32 APs, RAPs or managed switches which support smart networking feature and up to 128 cloud managed switches in gateway mode, managing up to 300 APs or cloud managed switches which support smart networking feature and up to 128 cloud managedswitches in controller mode only. |
| RG-EG105G-P | 5-port Gigabit PoE router with metal casing, supporting up to 100 terminals and 500M bandwidth; 5 Gigabit Ethernet ports including 1 WAN port, 1 LAN/WAN port and 4 802.3af/at 1000Base-T ports, up to 54W PoE power output per device; integrated with unified network controller feature, managing up to 32 APs or managed switches which support smart networking feature and up to 128 cloud managed smart switches in gateway mode, managing up to 300 APs or cloud managed switches which support smart networking feature and up to 128 cloud managedswitches in controller mode only. |
-
