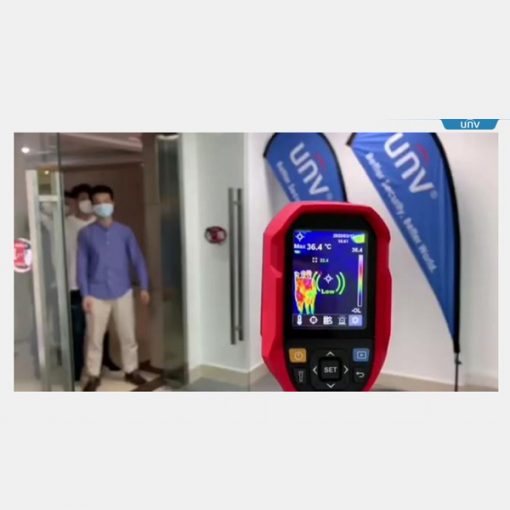

USS-SC160-T-O Handheld Thermal

Description

2.8’’ TFT screen
Infrared resolution: 160*120
Range of temperature measurement : 30℃~45℃
Accuracy : ±0.5℃（1m)
Photographed function and SD card storage
PC software analysis
Point temperature measurement
Type-C USB interface for lithium battery charging
1/4’’ tripod mounting hole

Model	USS-SC160-T-O
Sensor Type	Uncooled focal plane array
Temperature Range	30℃ ~ 45℃
Accuracy	± 1.5℃ (@ 25℃ ambient temperature)
Measuring Distance	± 15cm ~ (max) 1m
Temperature Measurement Response Time	≤500ms (%95 reading)
Thermal Resolution	19200 (160×120)
Pixel Dimensions	12µm
Palettes	Black white, red white, blue white, iron red, rainbow
FOV	56 (H) x 42 (V)
Temperature Display	Center temperature measurement and high temperature tracking (default)
Image Format	BMP
Image Mode	Thermal image
Temperature Measuring Point	Besides central point, 3 temperature measuring point points can be added
Display Resolution	320 x 240
PC Analysis Software	Support

Brand

Uniview

Uniview is the pioneer and leader of IP video surveillance.Firstly introduced IP video surveillance to China, Uniview now is the third largest player in video surveillance in China. In 2018, Uniview has the 4th largest global market share. Uniview has complete IP video surveillance product lines including IP cameras, NVR, Encoder, Decoder, Storage, Client Software and app, covering diverse vertical markets including retail, building, industry, education, commercial, city surveillance etc. Our aim is to become a global leader in video surveillance industry which endeavors to build a safer world by providing professional, reliable and cutting-edge products and services.
