Ruijie Access Point RG-AP720-L By Ruijie
Ruijie Access Point RG-AP720-L By Ruijie – The Ruijie RG-AP720-L Access Point is a high-performance Wave 2 802.11ac access point with 2 × 2 MU-MIMO and concurrent Dual-band design, data rates of up to 1.167Gbps.
DESKRIPSI
RG-AP720-L
Ruijie Access Point RG-AP720-L By Ruijie is a high-performance 802.11ac Wave 2 access point with 2 × 2 MU-MIMO and concurrent Dual-band design, data rates of up to 1.167Gbps.
Taking advantage of the flexibility of Ruijie hybrid management, customers can choose Ruijie Cloud Management and Hardware Controller for a variety of fast-changing business needs.
It doesn’t matter cloud-based controllers or hardware, it’s all integrated with advanced radio optimization, wireless roaming and secure out of the box authentication. The high performance AP720-L is ideal for primary and secondary educational institutions, small to medium sized businesses, boutique hotels, retail chains and other industries for their indoor scenarios.
802.11ac Wave 2 MU-MIMO
Technology 802.11ac Wave 2 MU technology – MIMO allows multiple clients to be processed at the same time – significantly increases multi-user throughput and is essential for high-density wireless applications.

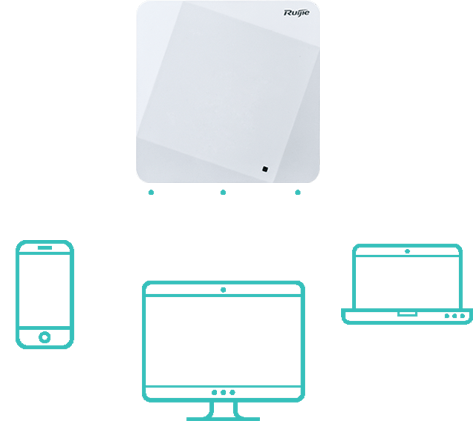

SU-MIMO
Process 1 Client at a Time

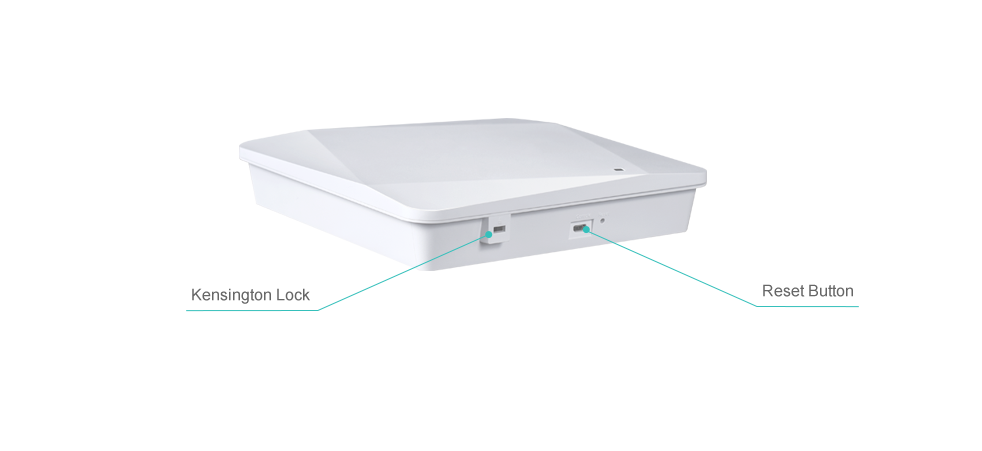

Stylish Design The
AP720-L uses a simple and stylish design to suit different scenarios.
Flexible Hybrid Management
3 different management modes to choose from, perfect for your changing business needs.
Standalone
Simple & Basic Connectivity
Cloud Management
Easy & Effective Choicewithout Provision
Hardware Controller
High Performancewith 3rd Party Integration

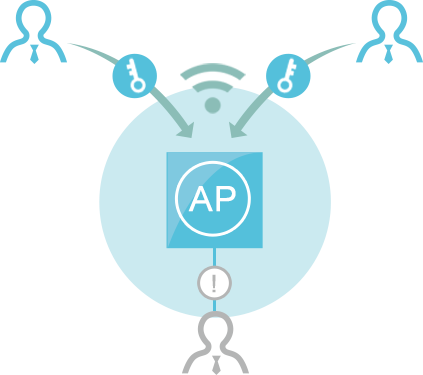

Hassle-free
authentication PPSK Enterprise Authentication
New experience features to manage wireless passwords for staff in a secure and simple way
Model |
Ruijie AP730-L |
Ruijie AP720-L |
Ruijie AP710 |
Ruijie AP210-L |
||
| Target Deployment |
SME High Density Wi-Fi |
Retail Chain Store, Small & Medium-sized Business Office, Boutique Hotel |
||||
| Type |
Indoor Ceiling/Wall-mounting |
|||||
|
Basic Spec |
Radio |
Tri-band (2.4G+5G+5G) |
Concurrent Dual-band |
Single-band |
||
| Protocol |
802.11a/b/g/n/ac Wave2 |
802.11a/b/g/n/ac
|
802.11b/g/n |
|||
| Operating Bands |
802.11b/g/n: 2.4GHz to 2.483GHz 802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz (vary depending on countries) |
802.11b/g/n: 2.4GHz to 2.483GHz |
||||
| Antenna |
Built-in Omni-directional Antenna |
|||||
| Antenna Gain |
2.4G: 3dBi 5G: 3dBi |
2.4G: 3dBi |
||||
| Max Throughput | Maximum throughput of 2.4G: 400Mbps
Maximum throughput of 5G: 1.73Gbps Maximum throughput per AP: 2.13Gbps |
Maximum throughput of 2.4G: 300Mbps
Maximum throughput of 5G: 867Mbps Maximum throughput per AP: 1167Mbps |
Maximum throughput of 2.4G: 300Mbps
Maximum throughput of 5G: 867Mbps Maximum throughput per AP: 1167Mbps |
Maximum throughput of 2.4G: 300Mbps
Maximum throughput per AP: 300Mbps |
||
| Modulation | OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps
DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps MIMO-OFDM：BPSK, QPSK, 16QAM, 64QAM, 256QAM |
OFDM：BPSK@6/9Mbps，QPSK@12/18Mbps，16-QAM@24Mbps，64-QAM@48/54Mbps
DSSS：DBPSK@1Mbps，DQPSK@2Mbps，and CCK@5.5/11Mbps MIMO-OFDM：BPSK, QPSK, 16QAM, 64QAM |
||||
| Receiver Sensitivity | 11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps）
11a/g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps） 11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15） 11ac HT20：-88dBm（MCS0）, -63dBm（MCS9） 11ac HT40：-85dBm（MCS0）, -60dBm（MCS9） 11ac HT80：-82dBm（MCS0）, -57dBm（MCS9） |
11b：-96dBm（1Mbps），-93dBm（5Mbps），-89dBm（11Mbps）
11g：-91dBm（6Mbps），-85dBm（24Mbps），-80dBm（36Mbps），-74dBm（54Mbps） 11n：-90dBm（MCS0），-70dBm（MCS7），-89dBm（MCS8），-68dBm（MCS15 |
||||
| Spatial Streams |
2×2 |
2×2 |
2×2 |
2×2 |
||
| Maximum Transmit Power |
100mW |
|||||
| IP Rating |
IP41 |
|||||
| Ports |
1 10/100/1000BASE-T Ethernet uplink Port LAN1 supports PoE+ 1 Console Port |
1 10/100/1000BASE-T Ethernet uplink Port LAN1 supports PoE 1 Console Port |
1 10/100BASE-T Ethernet uplink Port LAN1 supports PoE |
|||
|
Power |
Power Supply |
local power supply (DC 48V/0.6A) PoE (802.3at） |
local power supply (DC 5V/3A) PoE (802.3af） |
local power supply (DC 12V/1A) PoE (802.3af） |
||
| Power Consumption |
<25.5W |
<12.95W |
<7.5W |
|||
|
WLAN |
Maximum clients per AP |
768 |
256 |
128 |
||
| BSSID capacity |
48 |
32 |
16 |
|||
| Remote Intelligent Perception Technology (RIPT) |
Support |
|||||
| Intelligent load balancing based on the number of users or traffic |
Support |
|||||
| STA control |
Support |
|||||
| Bandwidth control |
Support |
|||||
| Preference for 5GHz (band select) |
Support |
|||||
|
|
Band Steering (5G Priority) |
Support |
N/A |
|||
|
Security |
PSK, Web, 802.1x authentication |
Support |
||||
| PPSK authentication |
Support |
N/A |
||||
| Data encryption |
WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits) |
|||||
| PEAP authentication |
Support |
|||||
| User isolation |
Support |
|||||
| Rogue AP detection and countermeasure |
Support |
|||||
| RADIUS |
Support |
|||||
| Wireless Intrusion Detection System(WIDS) |
Support |
|||||
| Wireless Intrusion Prevention System (WIPS) |
Support |
|||||
|
Routing |
IPv4 address |
Static IP address or DHCP reservation |
||||
| IPv6 address |
Manual or automatic configuration |
|||||
| Multicast |
Multicast to unicast conversion |
|||||
|
Management and Maintenance |
Network management |
SNMP v1/v2C/v3, Telnet, TFTP, Web management |
||||
| Cloud AC management |
Support |
|||||
| FAT/FIT switching |
Support |
|||||
|
External Characteristics |
Lock |
Support |
||||
| LED Indicators |
1 LED indicator (red, green, blue, orange, and flashing modes, breathing flashing mode for smart device access, and the indicator can be switched off to enable silence mode) |
|||||
|
Relevant Standard |
Wi-Fi Alliance Certification |
Support |
||||
| Radio Standard |
EN300 328 EN301 893 |
|||||
| EMC Standard |
GB9254 EN301 489-1 EN301 489-17 EN 55032 EN 61000 EN 55035 |
|||||
| Safety Standard |
GB4943 EN/IEC 60950-1 |
|||||
|
Specifications |
Dimensions (W x D x H) (mm) |
230x230x42 |
194 × 194 × 37 |
175*175*25.8 |
||
| Weight |
1.3kg |
0.42kg |
0.35kg |
|||
|
Work Environment |
Temperature |
Operating Temperature: -10°C to 50°C Storage Temperature: -40°C to 70°C |
Operating Temperature: Storage Temperature: |
|||
| Humidity |
Operating Humidity: 5% to 95% (non-condensing) Storage Temperature: 5% to 95% (non-condensing) |
|||||
