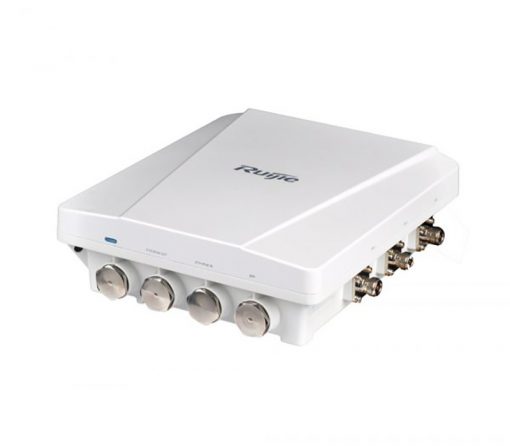

Distribution of Ruijie Indonesia RG-AP630 (IDA2)

High Performance & Reliability

● 802.11ac Superior Wireless Performance

RG-AP630 (IDA2) supports 802.11n@2.4GHz and 802.11ac@5GHz, access speeds up to 2,533Gbps. Outstanding wireless performance, greatly optimizes the wireless user experience, increases the number of concurrent users and increases signal coverage.

● Smart antenna built in from AP630 (IDA2)

Equipped with a built-in antenna, the RG-AP630 (IDA2) can achieve antenna beam removal precisely based on the location of the access device, ensuring an optimal wireless experience. The AP also supports internal and external antenna switching to flexibly adapt to placement scenarios. Distribution of Ruijie Indonesia RG-AP630.

● AP630 Directional and Omnidirectional Antennas (IDA2)

● The Most Flexible Gigabit Uplink

RG-AP630 (IDA2) offers a 10/100 / 1000Base-T Ethernet uplink port which makes LAN ports a wireless access barrier, and a 1000M SFP combo port that adapts to wired network structures under different user scenarios. The SFP Base-X port takes the data transmission workload for optimal network deployment.

● Easy-to-use mount kit

Adjustable mount kits are available by default for optimal painless deployment. The AP can be easily adjusted to -60 ° to 60 ° horizontally and -60 ° to 90 ° vertically to adapt to various scenarios.

● All-in-one Package for Painless Deployment

Outdoor AP The RG-AP630 (IDA2) offers a one-stop installation package. Everything you need is included, from external antennas to lightning rods and coaxial cables, for easy outdoor distribution.

● Flexible WDS Mode

AP implements WDS (Wireless Distribution System) to support interconnection of multiple APs or wireless bridging under 5 hops. Wireless bridging can be achieved even for long distances. Outdoor AP also supports point-to-multipoint bridging (CPE application scenarios) for more flexible networks. Features that can overcome the problem of outdoor deployment, to support large-scale and long-range high-speed wireless coverage.

● Intelligent Device Recognition

AP supports the intelligent introduction of end devices running major operating systems such as iOS and Android.

● Industry-leading Local Forwarding Technology

By using industry-leading local forwarding technology, AP eliminates traffic barriers from wireless access controllers. By using the Ruijie RG-WS Wireless Controller Series, users can flexibly pre-configure data forwarding modes from an outdoor AP. The AP also controls data that will be forwarded via a wireless controller. Local forwarding technology can forward large-scale, delay-sensitive, and real-time data transmission to greatly reduce the traffic pressure on the wireless LAN controller and meet the high traffic transmission requirements of the 802.11ac network.

● Seamless Roaming Experience

AP joins the RG-WS Wireless Controller in a perfect link, allowing wireless users to roam smoothly on Layer 2 and Layer 3 networks without data interruption.

● Abundant QoS Policy

The AP supports various QoS policies. For example, it provides a WLAN / AP / STA based bandwidth limiting mode that prioritizes the main services over others.

● Exceptional Environmental Adaptability

The outdoor AP offers an IP67 rated cover that meets the requirements of waterproof, dustproof, damp, and fire resistant to withstand harsh environments such as wind erosion, rain and high humidity. These features greatly extend equipment life and effectively reduce maintenance costs.

● Wide Operating Temperature Range

All AP components and enclosures can withstand a wide temperature range from -40 ° C to 65 ° C so that it does not affect stability and life span. The design ensures metal components cool efficiently at high temperatures. The internal heating module guarantees stable operation under freezing conditions.

● Comprehensive Security Policy

● User Data Encryption

Outdoor AP offers Wi-Fi access that is protected with the support of advanced encryption technology such as WEP, TKIP and AES, which ensures the security of wireless network data transmission.

● Virtual AP Technology

With virtual AP technology, AP can offer up to 16 ESSIDs (per radio) and 16 802.1Q VLANs. Network administrators can separately encrypt and isolate subnets or VLANs that have the same SSID. Separate authentication modes and encryption mechanisms for each SSID can also be flexibly configured.

● Standard CAPWAP encryption

CAPWAP (Control and Provisioning of Wireless Access Points) enables communication between the RG-WS Wireless Controller and the external AP. This standard ensures secure data transmission.

● RF Security

In collaboration with RG-SNC Smart Network Commander and RG Ruijie RG-WS Wireless Controller, the AP allows the RF probe scanning mechanism to detect unauthorized access points or other RF interference sources. Once detected, the AP will warn network administrators to monitor potential threats and usage status in a wireless environment.

● User Access Control

AP supports various authentication methods such as Web, 802.1x, MAC address and local authentication. AP also supports the Ruijie’s advanced BYOD Security Management Platform (SMP) Solution that is compatible with standard access control systems. The system has a set of control policies in terms of user access, authorization, host compliance checks, monitoring network behavior, defense of network attacks, etc. All of these control features ensure that users are authenticated before securely accessing network services.

● Wireless Protection

Together with Rui -ie’s RG-SNC Smart Network Commander and RG-WS Wireless Controllers, the AP provides a variety of powerful wireless security features such as Wireless Intrusion Detection System (WIDS), RF Interference Locations, Naughty AP Countermeasures, Anti-ARP Spoofing, and DHCP protection for wireless networks that are absolutely secure and highly reliable.

● Wireless IPv6 access

A comprehensive IPv6 feature is available to enable IPv6 forwarding on wireless networks. Both IPv4 and IPv6 users can connect to AC through tunnels, allowing IPv6 applications to be covered by wireless networks.

● Flexible Device Management Mode

● Flexible switching between FAT and FIT modes

AP supports flexible switching in FAT and FIT modes according to different industrial network requirements. When there are multiple APs, users can adopt FAT mode for easy independent network formation. For large scale networks, APs can operate in FIT mode which allows centralized management of all APs and other aspects such as security, traffic management, QoS and IP management when used with the RG-WS Wireless Controller. A smooth transition from one to another, AP fully protects user investment.

● Simple Placement With Zero Configuration

Under FIT mode, no AP configuration is required before deployment. it’s easy and no manual configuration is needed for installation, maintenance, or on-site replacement. Automatic configuration can be completed via AC. This user-friendly feature can greatly reduce workload and investment costs.

● Comprehensive Remote Management

The RG-WS or Cloud AC Wireless Controller can remotely control and control all AP operations such as channel, power rating, SSID configuration, security configuration, VLAN division and so on. This feature increases security and simplifies wireless network management.

● Port PoE For Easy Use & Maintenance

RG-AP630 (IDA2) supports PoE 802.3at standard. By connecting to the HPoE switch through the AP AP port, the external AP can obtain power and support data transmission via cable. Network administrators can configure remotely. RG-AP630 (IDA2) can also solve the problem of unstable resources, simplify the installation process and maximize cost savings.
